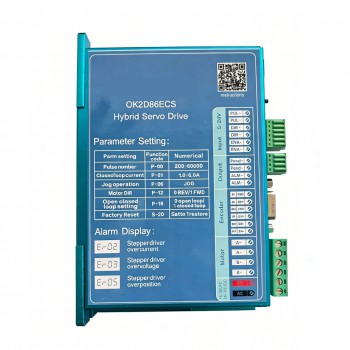

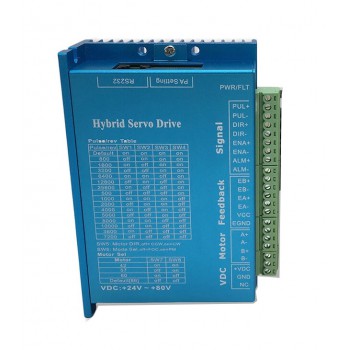

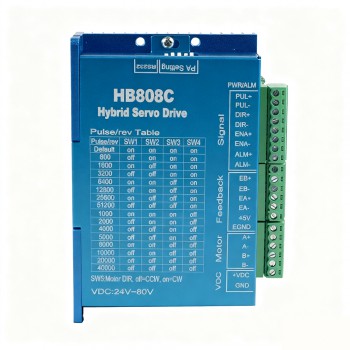

Closed-loop Stepper Driver

A closed-loop stepper motor driver is a motor drive unit that combines phase control with encoder feedback. It powers the stepper motor windings while monitoring actual shaft position through incremental or serial encoder signals. Some models integrate basic motion functions such as homing routines, position tables, and digital I/O handling, and may be described as closed-loop stepper controllers when used without an external motion card.

During operation, a PLC or motion controller sends STEP/DIR or fieldbus commands to the driver. The driver evaluates encoder feedback against the commanded movement and adjusts phase current and microstep timing when position deviation is detected. Common functions may include configurable current limits, acceleration and deceleration ramps, electronic gearing, homing inputs, and alarm outputs for conditions such as overcurrent or position deviation, depending on the driver design.

When selecting a closed-loop stepper driver, confirm supply voltage range, peak and RMS current ratings, supported motor inductance, encoder type and resolution, and available control interfaces such as pulse/direction or industrial fieldbus protocols. Environmental factors including mounting clearance, grounding, cable length, and thermal conditions should also be reviewed. These drivers are used in motion systems such as CNC axis modules, packaging and dispensing equipment, inspection fixtures, pick-and-place assemblies, and compact automation platforms where step-based positioning with feedback monitoring is required.
