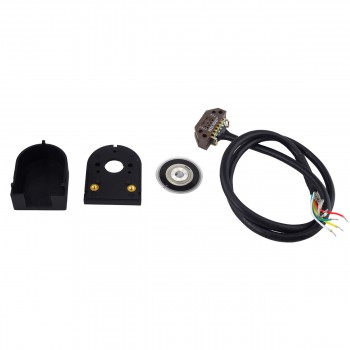

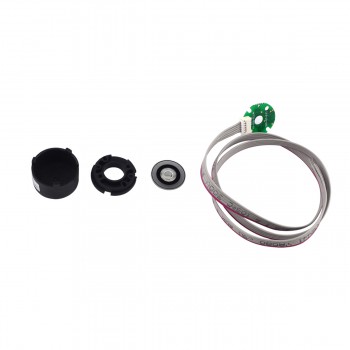

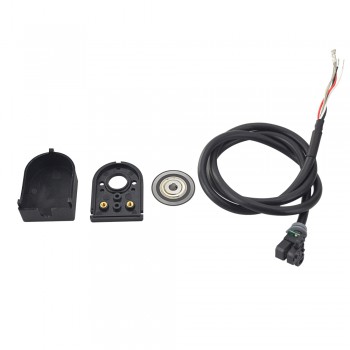

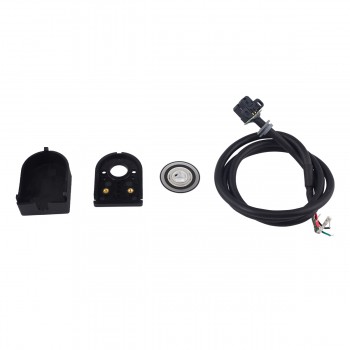

Stepper Motor Optical Encoder

A stepper motor optical encoder is a type of encoder widely used with stepper motors to provide position feedback and enable closed-loop control. It utilizes optical sensing technology to detect the position of the motor shaft and provide accurate feedback to the control system. The resolution of the optical encoder is determined by the number of slots or patterns on the disc. Higher resolution encoders have a greater number of slots or patterns, providing finer position feedback and higher accuracy. By utilizing the position feedback from the optical encoder, the control system can adjust the stepper motor's drive signals to correct any position errors. This closed-loop control improves the motor's positioning accuracy, eliminates missed steps, and enhances overall system performance. Stepper motor optical encoders are commonly used in applications that require precise positioning, such as CNC machines, robotics, automated manufacturing, and high-precision motion control systems. They offer a reliable and accurate means of obtaining position feedback and enabling closed-loop control for stepper motor systems.
