Nema 17 Stepper Motor Bipolar 1.8 deg 13Ncm (18.4oz.in) 1A 3.5V 42x42x20mm 4 Wires (17HS08-1004S)
- 5% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till June 10th, 2023
- Note:No coupon code needed, please place order directly!

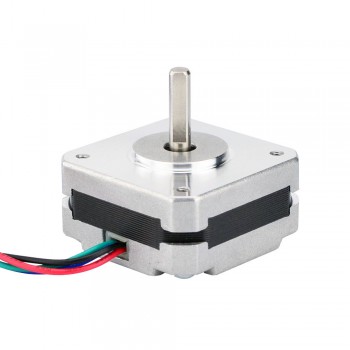

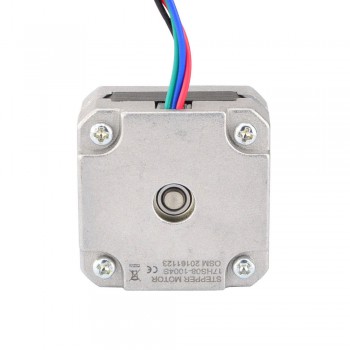

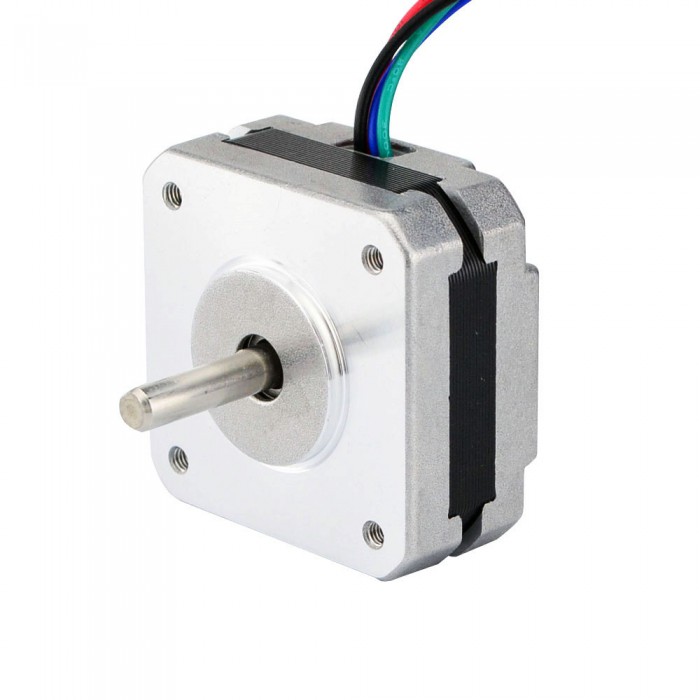

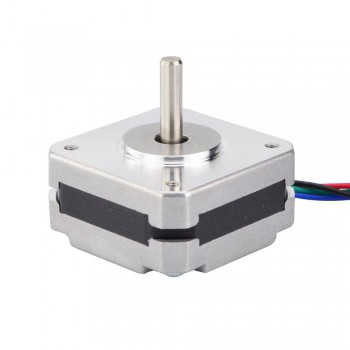

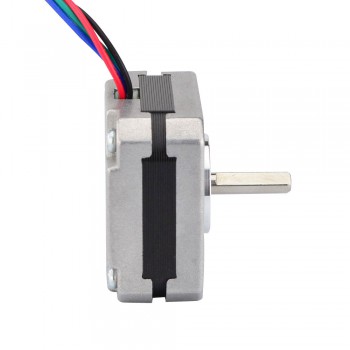

This is the shortest bipolar Nema 17 stepper motor we have, it with step angle 1.8deg and size 42x42x20mm. It has 4 wires, each phase draws current 1.0A, with holding torque 13Ncm (18.4oz.in).
Electrical Specification
- Manufacturer Part Number: 17HS08-1004S
- Motor Type: Bipolar Stepper
- Step Angle: 1.8 deg
- Holding Torque: 13Ncm(18.4oz.in)
- Rated Current/phase: 1.0A
- Voltage: 3.5V
- Phase Resistance: 3.5ohms
- Inductance: 4.5mH ± 20%(1KHz)
Physical Specification
- Frame Size: 42 x 42mm
- Body Length: 20mm
- Shaft Diameter: Φ5mm
- Shaft Length: 20mm
- D-cut Length: 16.5mm
- Number of Leads: 4
- Lead Length: 400mm
- Weight: 140g
Connection
A+
|
A-
|
B+
|
B-
|
Black
|
Green
|
Red
|
Blue
|
Resources
- Full Datasheet: 17HS08-1004S.pdf
- Torque Curver: 17HS08-1004S Torque Curve.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
Electrical Specification | |
---|---|
Bipolar/Unipolar | Bipolar |
Holding Torque (Ncm) | 13 |
Holding Torque (oz.in) | 18.4 |
Inductance(mH) | 4.5 |
Phase Resistance(ohm) | 3.5 |
Rated Current (A) | 1 |
Step Angle(°) | 1.8 |
Physical Specification | |
Body Length(mm) | 20 |
Frame Size(mm) | 42x42 |
Single Shaft/Dual Shaft | Single Shaft |
Shaft Type | D-Cut |
Shaft Diameter(mm) | 5 |
Shaft Length(mm) | 20 |
No. of Lead | 4 |
Lead Length(mm) | 400 |
Weight(g) | 150 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
