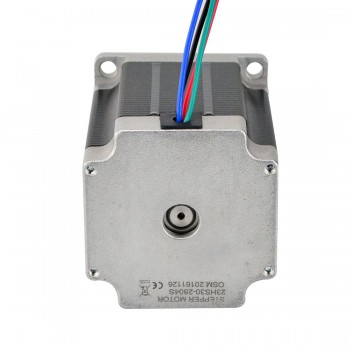

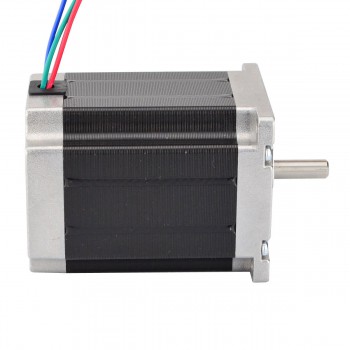

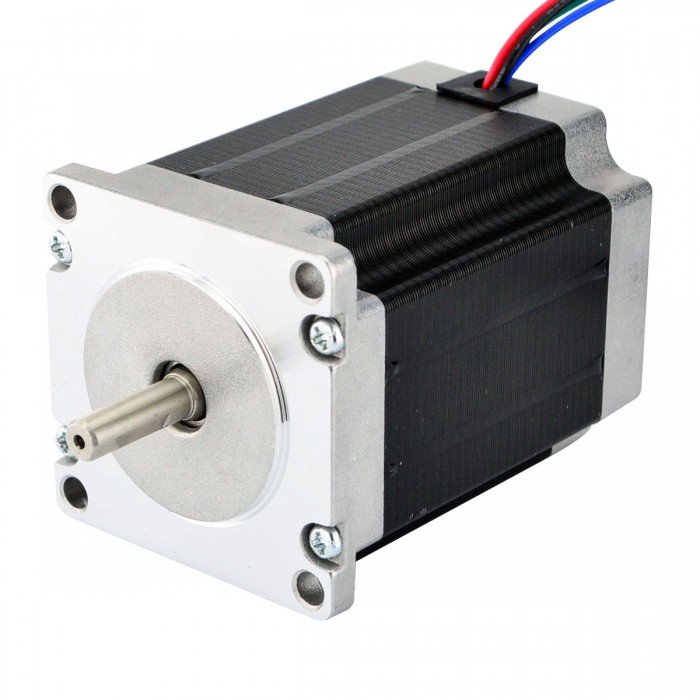

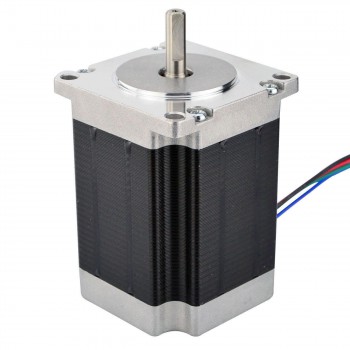

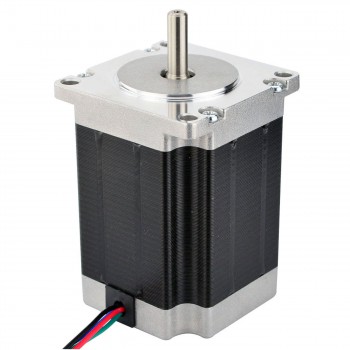

Nema 23 Stepper Motor Bipolar 1.8 Deg 1.9Nm (269oz.in) 2.8A 3.2V 57x57x76mm 4 Wires (23HS30-2804S)

Nema 23 Stepper Motor Bipolar 1.8 Deg 1.9Nm (269oz.in) 2.8A 3.2V 57x57x76mm 4 Wires (23HS30-2804S)
NO.:23HS30-2804S
Review: Post a review
Our Price:$28.17
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $26.76 5%
10 $26.20 7%
50 $25.35 10%
100 $24.51 13%
Add To Cart

This is one of popular Nema 23 stepper motors, it with step angle 1.8deg and size 57x57x76mm. It has 4 wires, each phase draws 2.8A, with holding torque 1.9Nm (269oz.in).

Electrical Specification

  • Manufacturer Part Number: 23HS30-2804S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 1.9Nm(269oz.in)
  • Rated Current/phase: 2.8A
  • Voltage: 3.2V
  • Phase Resistance: 1.13ohms
  • Inductance: 5.4mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 57 x 57mm
  • Body Length: 76mm
  • Shaft Diameter: Φ6.35mm
  • Shaft Length: 21mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 1.2kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

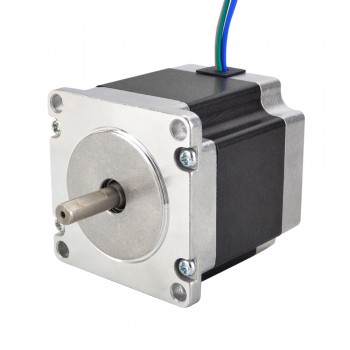

Prev: Nema 23 Stepper Motor Unipolar 1.8 Deg 1.35Nm (191.2oz.in) 1A 8.6V 57x57x76mm 6 Wires

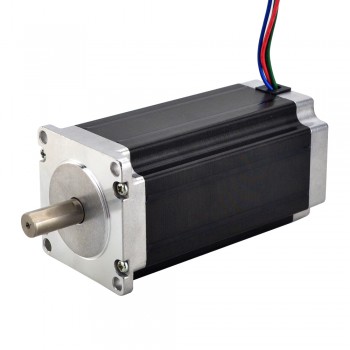

Next: Nema 23 Hybrid Stepper Motor Bipolar 1.9Nm (269oz.in) 2.8A 3.2V 57x57x76mm 4 Wires
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 190
Holding Torque (oz.in) 269
Inductance(mH) 5.4
Phase Resistance(ohm) 1.13
Rated Current (A) 2.8
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 76
Frame Size(mm) 57x57
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Shaft Diameter(mm) 6.35
Shaft Length(mm) 21
No. of Lead 4
Lead Length(mm) 500
Weight(g) 1100
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.
