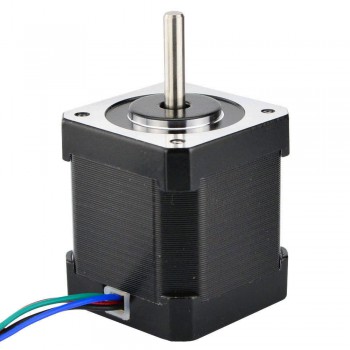

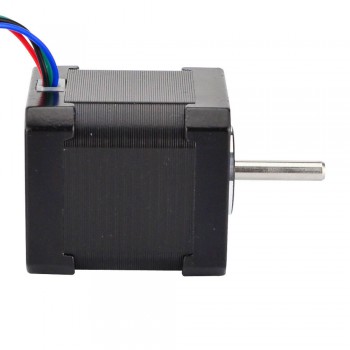

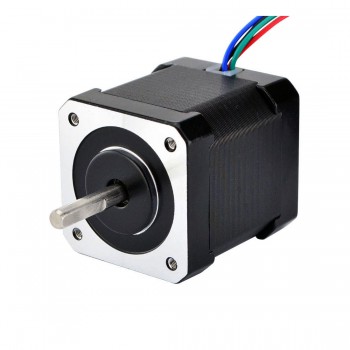

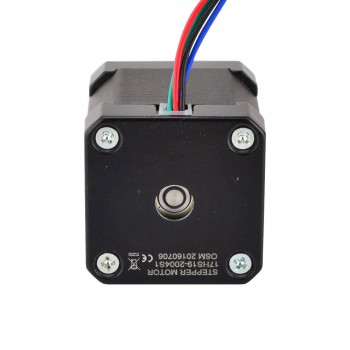

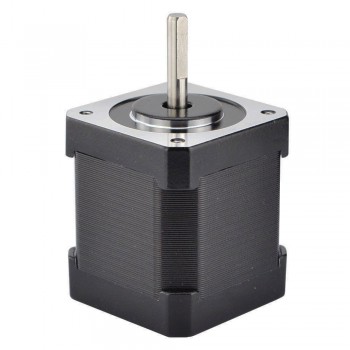

Nema 17 Stepper Motor Bipolar 1.8 Deg 59Ncm (84oz.in) 2A 42x48mm 4 Wires compatible with 3D Printer / CNC
This is an updated version nema 17 stepper motor with holding torque of 59Ncm(83.6oz.in). Based on old verstion, we have lengthened motor cable length to 1 metre, and add a 4-pin 0.1" pitch (2.54mm) Harwin female connector at the end of cable. It's good ideal for 3D printers, as well as CNC and robotics applications.
Electrical Specification
- Manufacturer Part Number: 17HS19-2004S1
- Motor Type: Bipolar Stepper
- Step Angle: 1.8 deg
- Holding Torque: 59Ncm(84oz.in)
- Rated Current/phase: 2.0A
- Voltage: 2.8V
- Phase Resistance: 1.4ohms
- Inductance: 3.0mH ± 20%(1KHz)
Physical Specification
- Frame Size: 42 x 42mm
- Body Length: 47mm
- Shaft Diameter: Φ5mm
- Shaft Length: 24mm
- D-cut Length: 15mm
- Number of Leads: 4
- Lead Length: 1000mm
- Weight: 390g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Resources
- Full Datasheet: 17HS19-2004S1.pdf
- Torque Curver: 17HS19-2004S1 Torque Curve.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 59 |
| Holding Torque (oz.in) | 84 |
| Inductance(mH) | 3 |
| Phase Resistance(ohm) | 1.4 |
| Rated Current (A) | 2 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 48 |
| Frame Size(mm) | 42x42 |
| Single Shaft/Dual Shaft | Single Shaft |
| Shaft Type | D-Cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 24 |
| No. of Lead | 4 |
| Lead Length(mm) | 1000 |
| Weight(g) | 400 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
B.Rodgers – 09 Jun 2023
This stepper motor is quite and runs great. They worked for a robotic arm elbow and base just fine.
Earwigger – 30 Jul 2020
Will this stepper motor work as a replacement for a soyo sy42sth47-1504a used in the lulzbot mini 3d printer?
stefi – 18 Oct 2019
i originally got nema 17 with 8mm thread built in but they had not enough tork and would slip alot, thought id give theses a try and instant improvement, abit longer than standard motors so check they will fit but are still the standard 40x40mm top and bottom
Update. these are so good, i just brought 2 more, so much less heat caused by these motors, barely warm compared to the others, i even lowered the ampage and have more torque
if you need more torque, cooler motors and lower voltage to keep motor drivers cooler then these are definatly worth a try,
will need 4 more for a delta build and these are the ones i will be using, so much better than the others
yamanaka_yoshi – 16 Oct 2019
These are the best packed steppers I have ordered. Nice wire length. And will work wonderful on my mini delta project. I have 14 printer and spare motors here for each of them. I will be ordering more
rendeldesign – 19 Jan 2019
great seller. super fast shipping Great item
