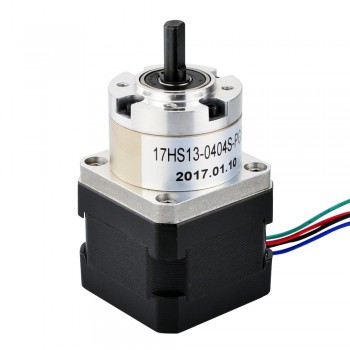

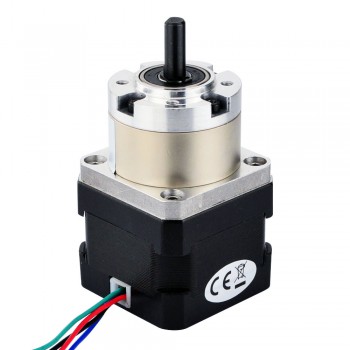

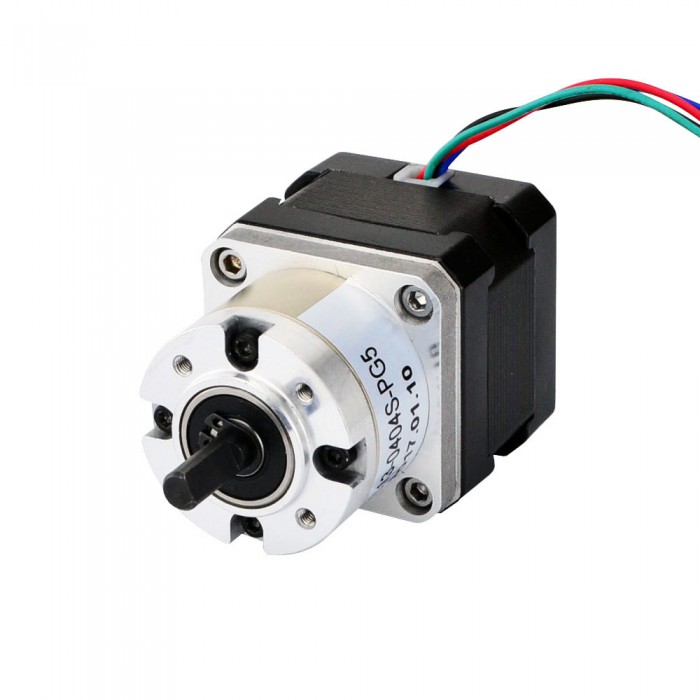

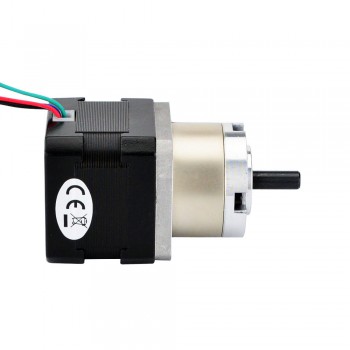

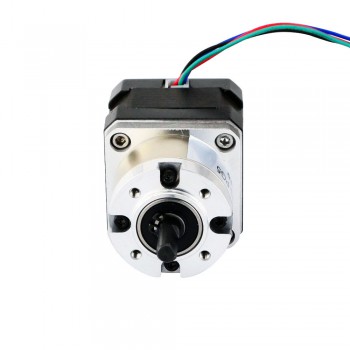

Nema 17 Stepper Motor Bipolar L=33mm 26Ncm 0.35 deg 12V with 5:1 Planetary Gearbox for DIY CNC Robot 3D Printer

Nema 17 Stepper Motor Bipolar L=33mm 26Ncm 0.35 deg 12V with 5:1 Planetary Gearbox for DIY CNC Robot 3D Printer
NO.:17HS13-0404S-PG5
Review: Post a review
Special Offer in May 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till May 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$31.42
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $29.85 5%
10 $29.22 7%
50 $28.28 10%
100 $27.34 13%
Add To Cart

This Nema 17 stepper motor with 33mm body and 0.4A rated current, integrated a planetary gearbox of 5.18:1 gear ratio.

Electrical Specification

  • Manufacturer Part Number: 17HS13-0404S-PG5
  • Motor Type: Bipolar Stepper
  • Step Angle: 0.35 deg
  • Holding Torque without Gearbox: 26Ncm(36.82oz.in)
  • Rated Current/phase: 0.4A
  • Phase Resistance: 30ohms
  • Voltage: 12V
  • Inductance: 34mH ± 20%(1KHz)

Gearbox Specifications

  • Gearbox Type: Planetary
  • Gear Ratio: 5.18: 1
  • Efficiency: 90%
  • Backlash at No-load: <=1 deg
  • Max.Permissible Torque: 2Nm(283oz.in)
  • Moment Permissible Torque: 4Nm(566oz.in)
  • Shaft Maximum Axial Load: 50N
  • Shaft Maximum Radial Load: 100N

Physical Specifications

  • Frame Size: 42 x 42mm
  • Motor Length: 34mm
  • Gearbox Length: 27.3mm
  • Shaft Diameter: Φ6mm
  • Shaft Length: 18mm
  • D-cut Length: 12mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 380g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 16 Stepper Motor Bipolar L=33mm 22Ncm 0.131 deg 0.6A 9V with 14:1 Planetary Gearbox
Next: Nema 17 Stepper Bipolar L=33mm 26Ncm 0.35 deg 0.4A 12V with 5:1 Small Planetary Gearbox
Gearbox Specification
Backlash at No-load(Max.°) 1
Efficiency 90%
Gear Ratio 5.18:1
Gearbox Length(mm) 27.3
Gearbox Type Planetary
Max. Permissible Torque(Ncm) 200
Max. Permissible Torque(oz.in) 283.2
Moment Permissible Torque(Ncm) 566.4
Shaft Maximum Axial Load(N) 50
Shaft Maximum Radial Load(N) 100
Motor Specification
Inductance(mH) 27
Lead Length(mm) 500
Motor Nema Size Nema 17
No. of Lead 4
Phase Resistance(ohm) 30
Rated Current (A) 0.4
Shaft Diameter(mm) 6
Shaft Length(mm) 18
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 22
Holding Torque w/o Gearbox(oz.in) 31.2
Motor Length(mm) 34
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Physical Specification
Weight(g) 500

weazer245 – 18 Aug 2023

Everything is great! well packaged, quality item, quickly shipped!

Ronald Dupre – 23 Sep 2015

Nicely made, but be careful, it has a 6 mm shaft which is hard to integrate into the RepRap environment. A 5 mm or 8 mm shaft is more appropriate.
