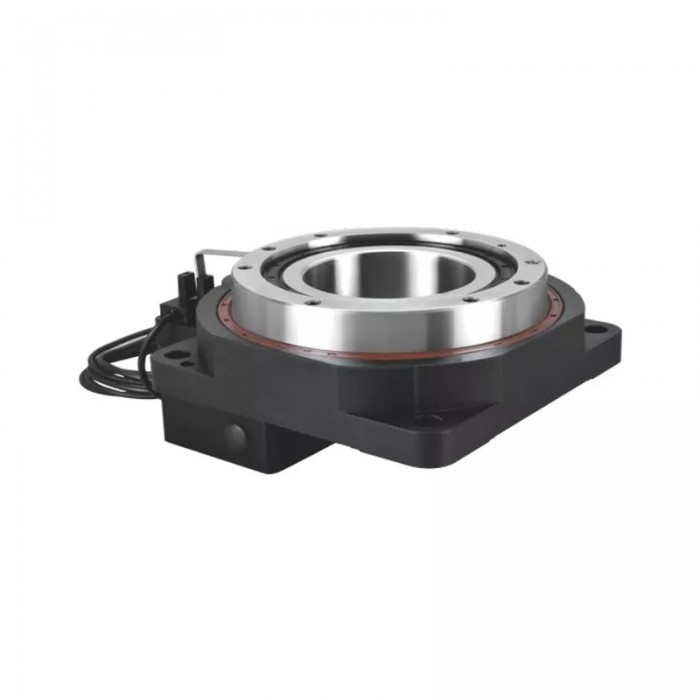

Hollow Rotating Platform Gearbox ratio 10:1 18:1 for 86mm NEMA34 Stepper Motor

NO.:ZCT130-10/18 14-73
Post a review

Special Offer in July 2026:

6% OFF on Total Order Amount!
Enjoy Discount at Checkout!
Valid Till July 31th, 2026
Note:No coupon code needed, please place order directly!

Our Price:$449.00

Model:

Quantity:- +

Add To My Favorites

Description Specification Custom Options Review

ZCT130-10/ZCT130-18 Rotary Actuator Reducer Ratio 10:1 18:1 for 60mm 400W AC Servo Motor / 34 Nema Stepper Motor

Item description from the seller

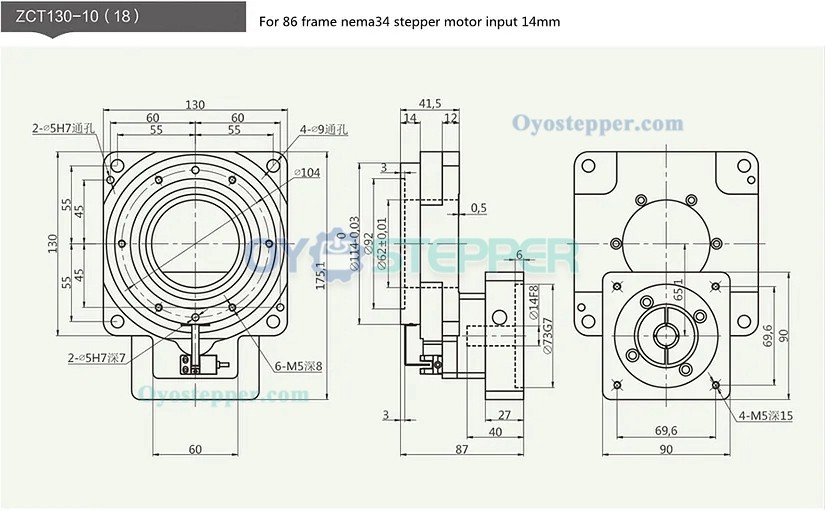

ZCT130-10 14-73 Hollow Rotary Platform Rotating Table Gearbox Reducer ratio 10:1 for 86 frame nema34 stepper motor input shaft 14mm

ZCT130-18 14-73 Hollow Rotary Platform Rotating Table Gearbox Reducer ratio 18:1 for 86 frame nema34 stepper motor input shaft 14mm

PLEASE READ THE FOLLOWING NOTICE BEFORE ORDER:

1st:Reduction Ratio

The reduction ratio of the planetary reducer you ordered is: 10:1 and 18:1

2nd:Input Size

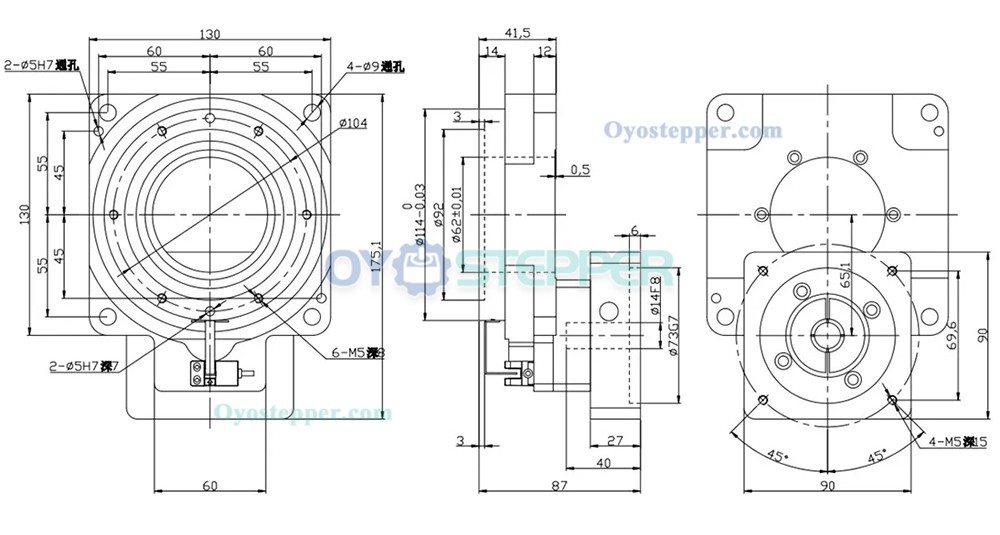

We will ship the planetary reducer as the standard dimension as follows:

Model	Frame	Reduction ratio	Shaft diameter of motor	mounting flange	diagonal Screw hole distance
ZCT130-10 for Nema 34 Stepper Motor	86mm	10:1	14mm	73mm	98.4mm
ZCT130-18 for Nema 34 Stepper Motor	86mm	18:1	14mm	73mm	98.4mm

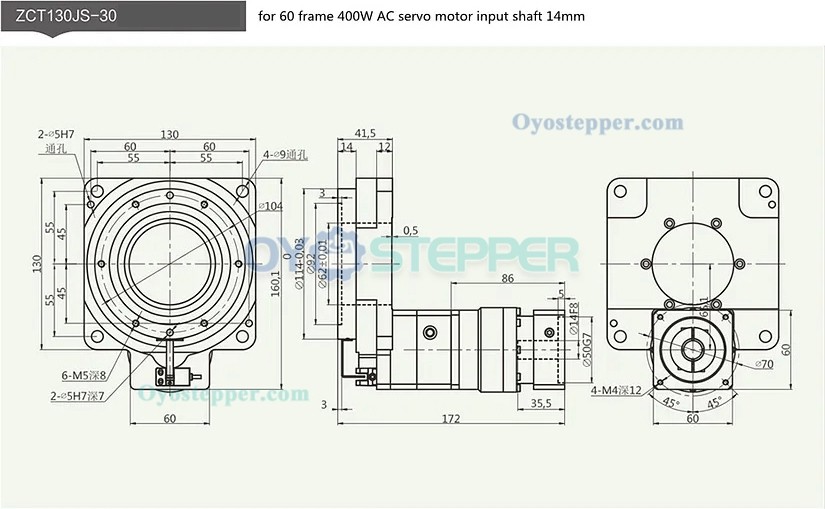

ZCT130JS-30 for 90 Frame Servo Motor	60mm	30:1	14mm	73mm	98.4mm

3rd:Parameters

If you have inquiry to customize the input and output dimensions, reduction ratio please write me

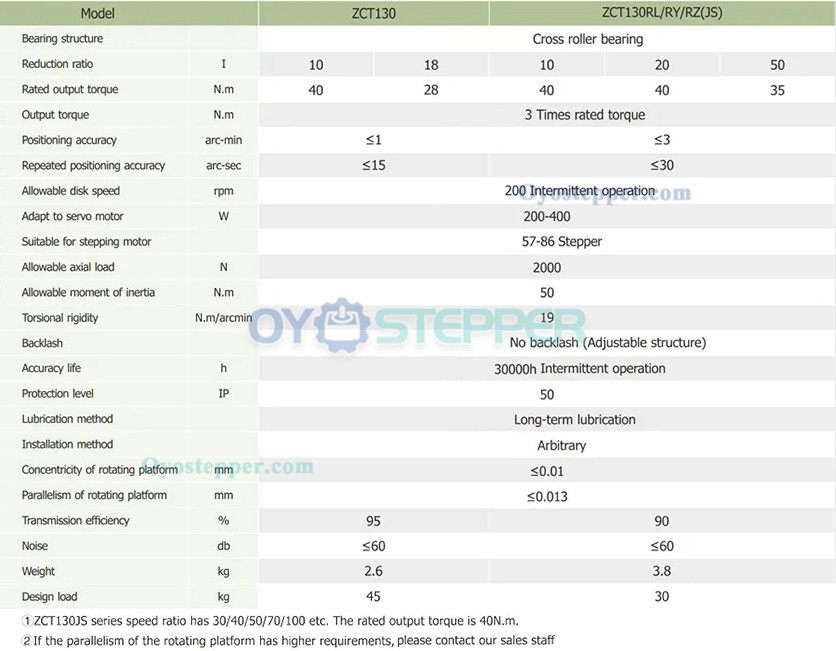

Here is the parameters of the planetary reducer:

Hollow Rotating Platform Gearbox ratio 10:1 18:1 for 86mm NEMA34 Stepper Motor

Prev: Hollow Rotating Platform turn table Gearbox for 40 frame 50W 100W AC Servo Motor
Next: Hollow Rotating Platform Gearbox Ratio 10:1 18:1 for 60mm 400W AC Servo Motor

Physical Specification
Frame Size(mm)	87 x 87
Input Shaft Diameter(mm)	14
Input Shaft Length(mm)	40 / 35.5
Suit for Motor	Nema 37 / 60x60 Servo
Gearbox Type	Hollow Rotary Actuator
Gear Ratio	10:1 / 18:1 / 30:1
Backlash at No-load	No backlash
Input Shaft Max. Length	40 / 35.5
