Stepper Motor Bracket

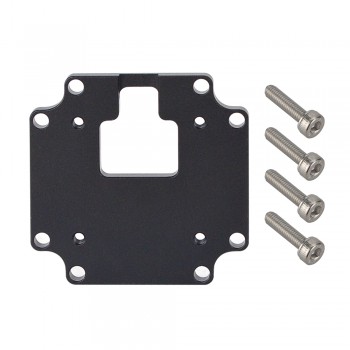

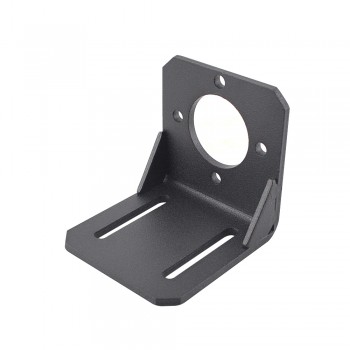

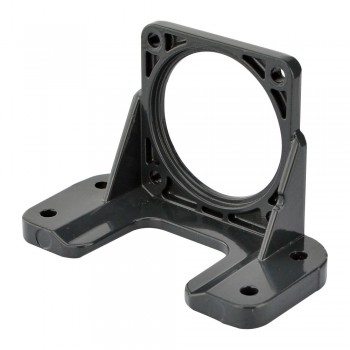

A motor mounting bracket (motor mount) is used to fix a stepper motor or servo motor to a machine frame. It locates the motor using the bolt pattern and mounting face so the motor can be installed in a defined position.

When choosing a mounting bracket for stepper motor or servo motor, match the motor frame size and hole pattern (for example NEMA 17/23/34/42), then check bracket thickness, material (aluminum or steel), mounting style, and adjustment slots if alignment needs to be set during assembly.

Confirm the drawing details for the exact model, including hole spacing, plate thickness, standoff height, and the interface to the machine structure.
