E Series Nema 17 Stepper Motor Bipolar 1.8 Deg 42Ncm(59.49oz.in) 1.5A 42x42x38mm 4 Wires
E Series Nema 17 Stepper Motor Bipolar 1.8 Deg 42Ncm(59.49oz.in) 1.5A 42x42x38mm 4 Wires

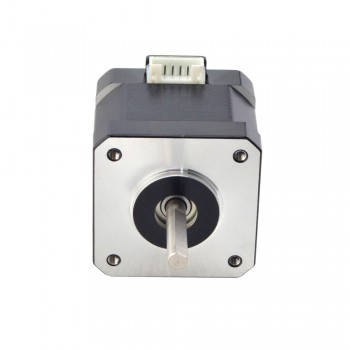

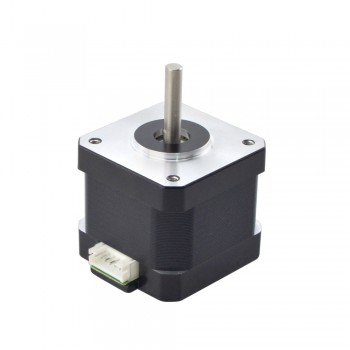

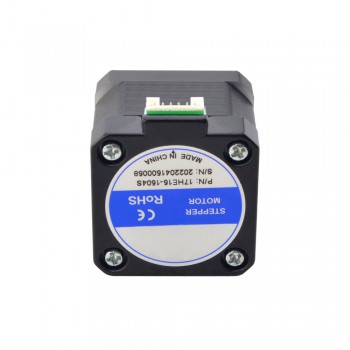

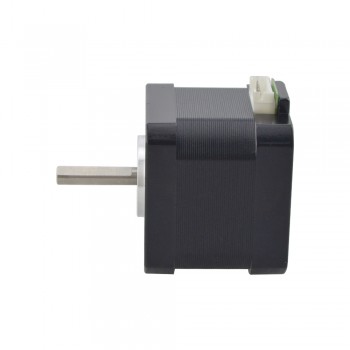

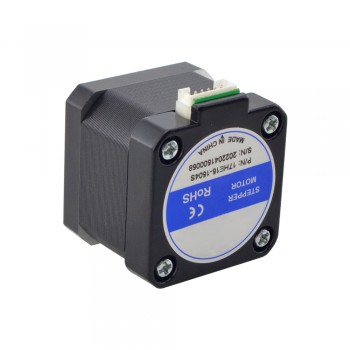

This 42 mm bipolar stepper (17HE15-1504S) holds 42 Ncm at 1.5 A, features a 1.8° step angle, and includes a 4‑lead, 1 m cable with D‑cut shaft.
Electrical Specification
Manufacturer Part Number: 17HE15-1504S
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 42Ncm(59.49oz.in)
Rated Current/phase: 1.50A
Phase Resistance: 2.3ohms
Inductance: 4.0mH ± 20%(1KHz)
Physical Specification
Frame Size: 42 x 42mm
Body Length: 38mm
Shaft Diameter: Φ5mm
D-cut Length: 20mm
Shaft Length: 23.5mm
Number of Leads: 4

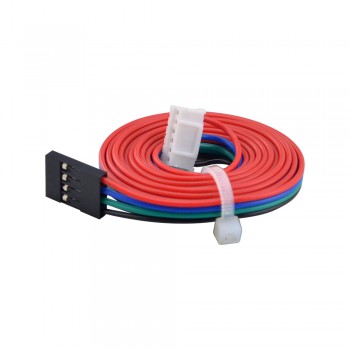

Lead Length: 1000mm
Weight: 280g

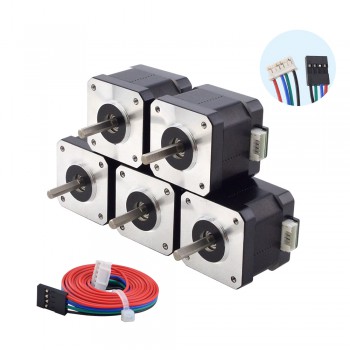

Package includes: 5 x 17HE15-1504S
Connection
| A+ | A- | B+ | B- |
| Black | Blue | Green | Red |
| Physical Specification | |
|---|---|
| Frame Size(mm) | 42x42 |
| Body Length(mm) | 38 |
| Lead Length(mm) | 1000 |
| No. of Lead | 4 |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 23.5 |
| Single Shaft/Dual Shaft | Single Shaft |
| Weight(g) | 280 |
| Output Shaft Type | D-Cut |
| IP Rating | 40 |
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 42 |
| Holding Torque (oz.in) | 59.49 |
| Inductance(mH) | 4.0 |
| Phase Resistance(ohm) | 2.3 |
| Rated Current (A) | 1.5 |
