ZXK Series Hollow Type Harmonic Drive Ratio 30:1-160:1 Gearbox Harmonic Gear Speed Reducer 30 Arcsec

Name: ZXK Series Hollow Type Harmonic Drive Ratio 30:1-160:1 Gearbox Harmonic Gear Speed Reducer 30 Arcsec
Brand: Oyostepper
SKU: ZXK Series
Price: 149.00 USD
Availability: InStock

NO.:ZXK Series
Post a review

Our Price:$149.00

Model:

Ratio:

Quantity:- +

Add To Cart

Add To My Favorites

Description Specification Custom Options Review

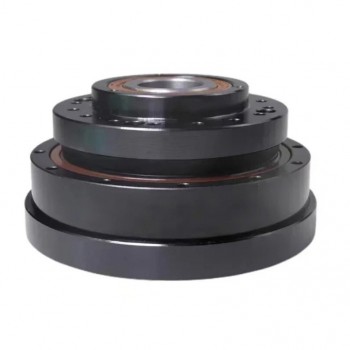

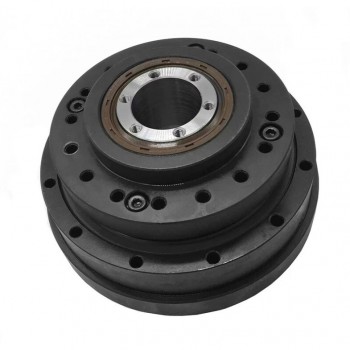

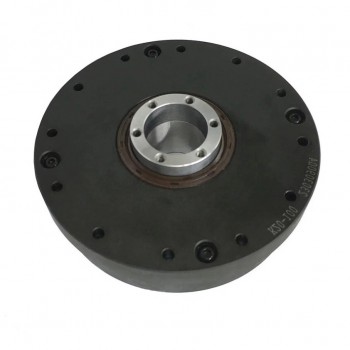

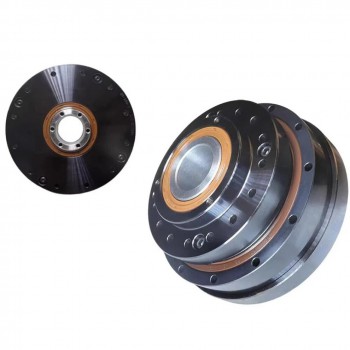

ZXK Series Hollow Type Harmonic Drive Ratio 30:1-160:1 Gearbox Harmonic Gear Speed Reducer 30 Arcsec

Features:

Dual symmetrical tooth engagement (180° apart)

Single-stage reduction ratio: 30–500

Coaxial design, 3 components

Surface-contact tooth engagement

Compact size, light weight

Continuous torque operation

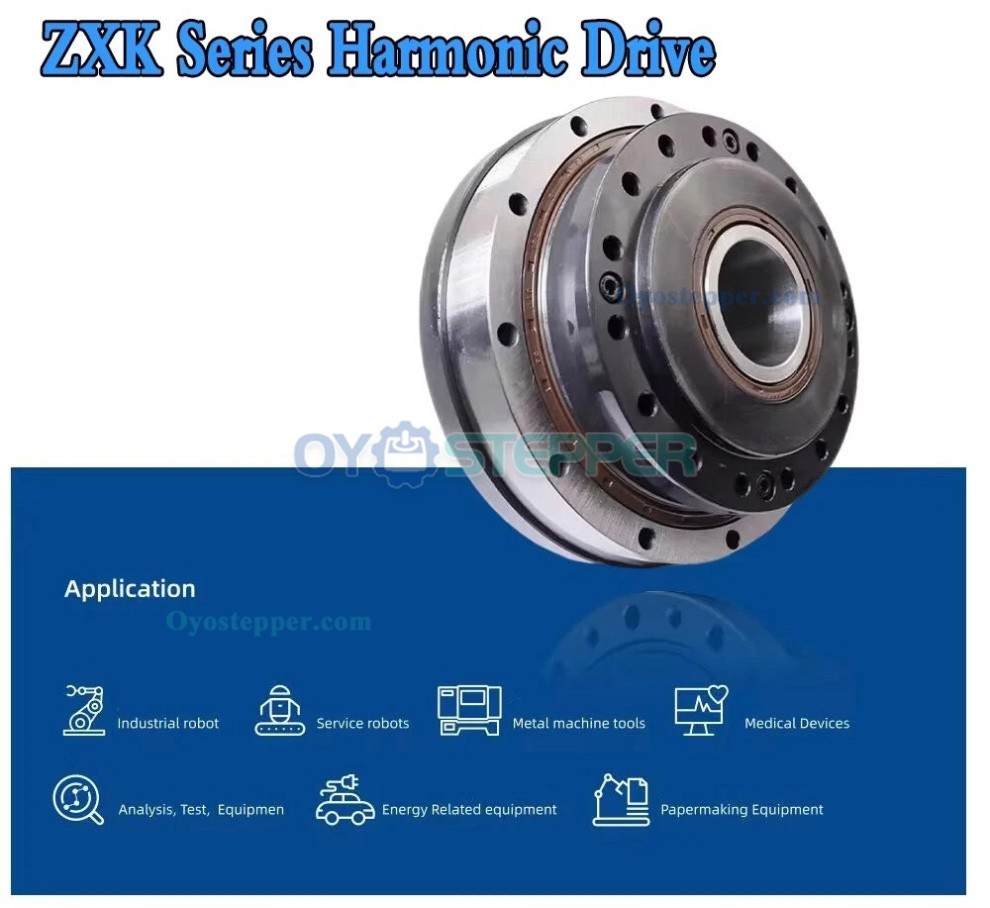

Applications:

Robotic joints, industrial robots, CNC rotary tables, laser marking equipment, dispensing machines, optical platforms, rotary test stages, precision drives, indexing heads, radar systems, printing machinery, winding equipment, woodworking machines, testing devices, automation systems

Package Includes:

1×Harmonic reducer

Note:Excluding synchronous wheels and belts, please contact us to purchase separately if needed.

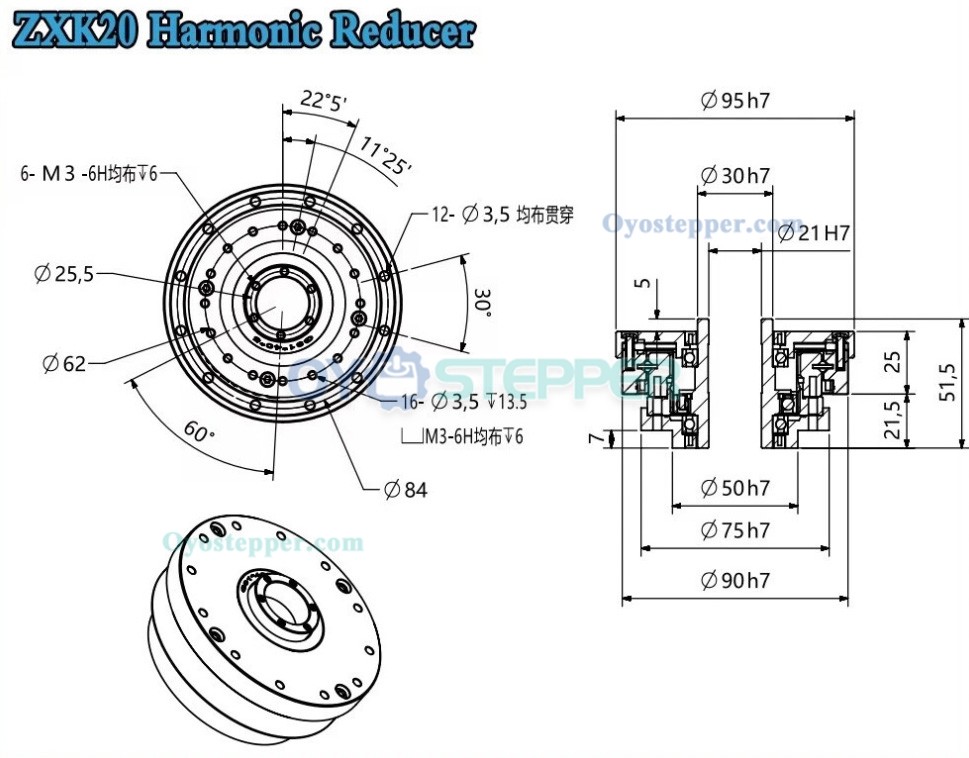

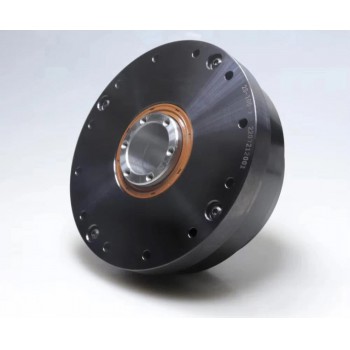

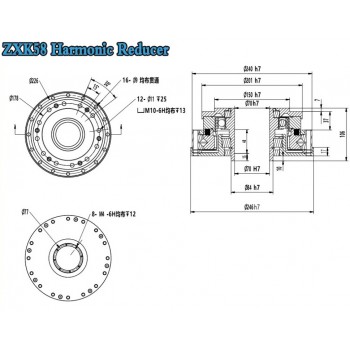

ZXK Series Hollow Type Harmonic Drive Ratio 100:1/160:1 Gearbox Harmonic Gear Speed Reducer 30 Arcsec

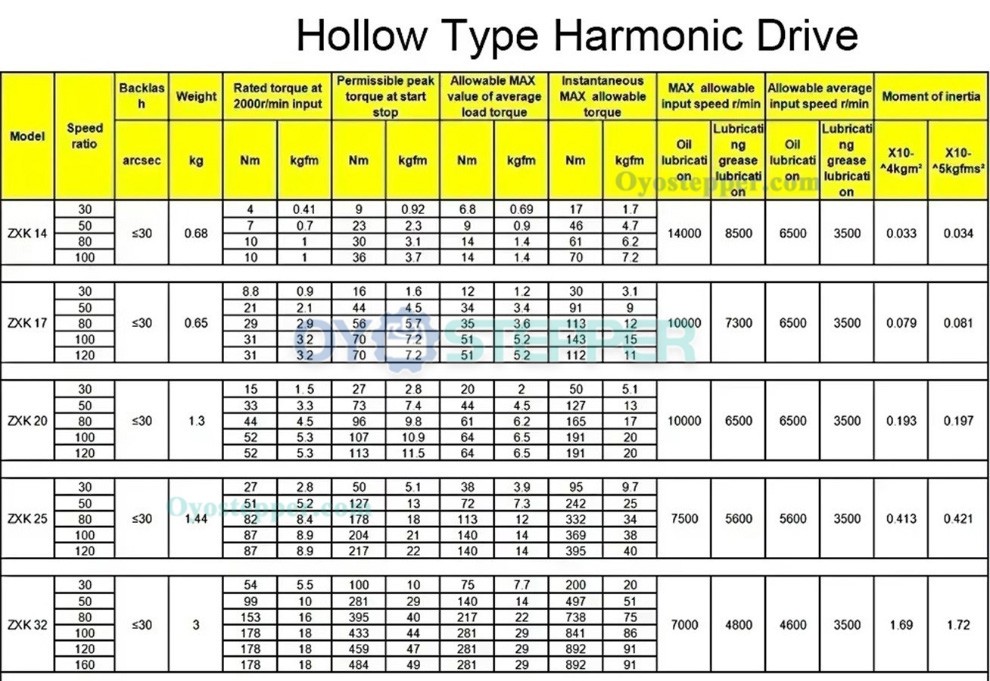

Model	Speed ratio	Backlash (arcsec)	Weight (kg)	Rated torque @2000 rpm (Nm)	Rated torque @2000 rpm (kgf·m)	Peak torque start/stop (Nm)	Peak torque start/stop (kgf·m)	Max avg load torque (Nm)	Max avg load torque (kgf·m)	Max instantaneous torque (Nm)	Max instantaneous torque (kgf·m)	Max input speed (rpm) Oil	Max input speed (rpm) Grease	Allowable avg input speed (rpm) Oil	Allowable avg input speed (rpm) Grease	Moment of inertia (×10^-4 kg·m²)	Moment of inertia (×10^-5 kgf·m·s²)

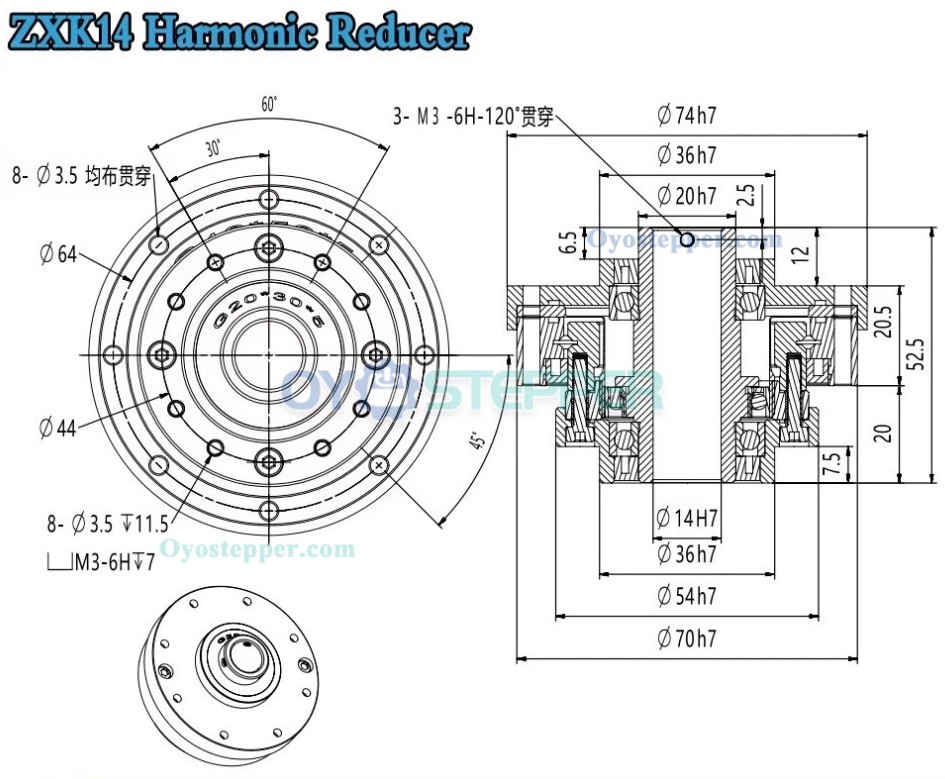

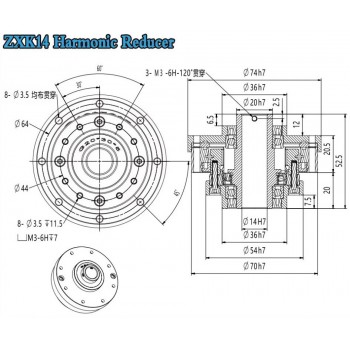

ZXK 14	30:1	≤30	0.68	4	0.41	9	0.92	6.8	0.69	17	1.7	14000	8500	6500	3500	0.033	0.034
	50:1			7	0.7	23	2.3	9	0.9	46	4.7
	80:1			10	1	30	3.1	14	1.4	61	6.2
	100:1			10	1	36	3.7	14	1.4	70	7.2

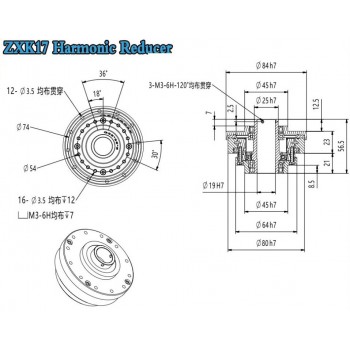

ZXK 17	30:1	≤30	0.65	8.8	0.9	16	1.6	12	1.2	30	3.1	10000	7300	6500	3500	0.079	0.081
	50:1			21	2.1	44	4.5	34	3.4	91	9
	80:1			29	2.9	56	5.7	35	3.6	113	12
	100:1			31	3.2	70	7.2	51	5.2	143	15
	120:1			31	3.2	70	7.2	51	5.2	112	11

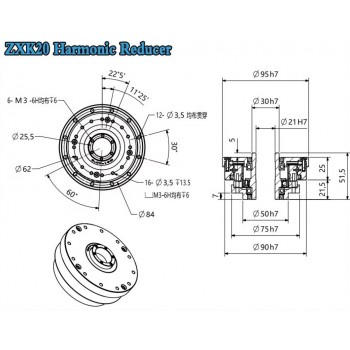

ZXK 20	30:1	≤30	1.3	15	1.5	27	2.8	20	2	50	5.1	10000	6500	6500	3500	0.193	0.197
	50:1			33	3.3	73	7.4	44	4.5	127	13
	80:1			44	4.5	96	9.8	61	6.2	165	17
	100:1			52	5.3	107	10.9	64	6.5	191	20
	120:1			52	5.3	113	11.5	64	6.5	191	20

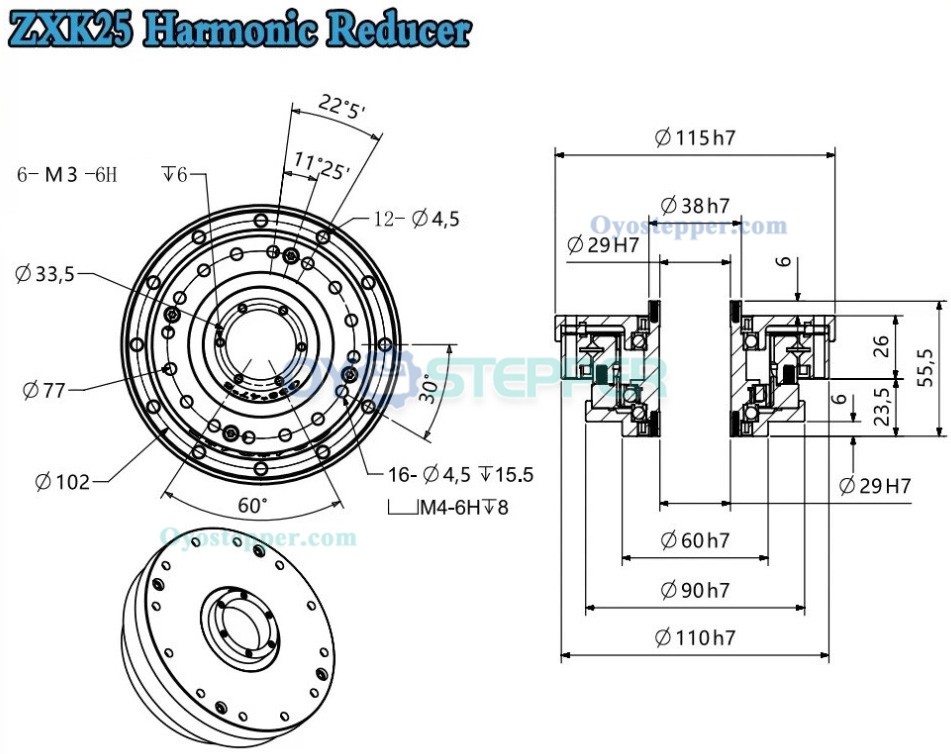

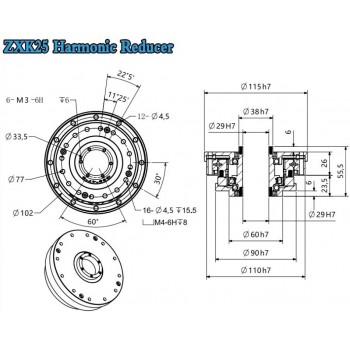

ZXK 25	30:1	≤30	1.44	27	2.8	50	5.1	38	3.9	95	9.7	7500	5600	5600	3500	0.413	0.421
	50:1			51	5.2	127	13	72	7.3	242	25
	80:1			82	8.4	178	18	113	12	332	34
	100:1			87	8.9	204	21	140	14	369	38
	120:1			87	8.9	217	22	140	14	395	40

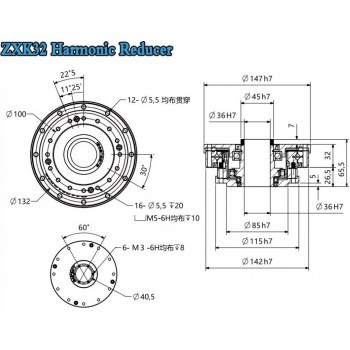

ZXK 32	30:1	≤30	3	54	5.5	100	10	75	7.7	200	20	7000	4800	4600	3500	1.69	1.72
	50:1			99	10	281	29	140	14	497	51
	80:1			153	16	395	40	217	22	738	75
	100:1			178	18	433	44	281	29	841	86
	120:1			178	18	459	47	281	29	892	91
	160:1			178	18	484	49	281	29	892	91

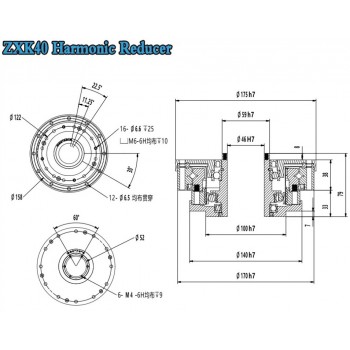

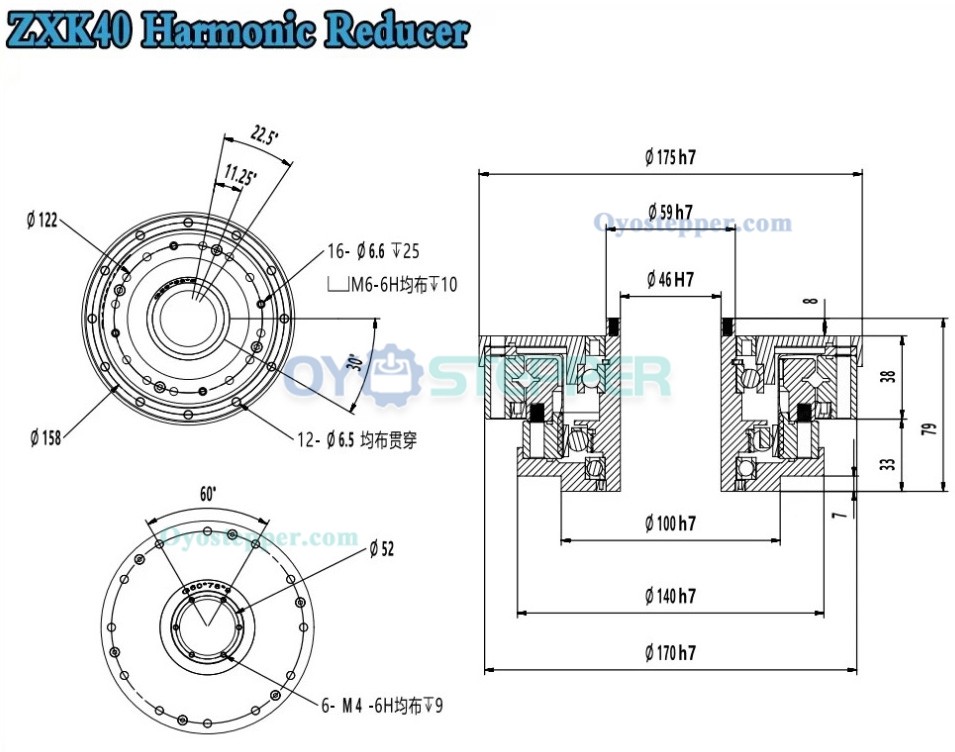

ZXK 40	50:1	≤30	4.54	178	18	523	53	255	26	892	91	5600	4000	3600	3000	4.5	4.59
	80:1			268	27	675	69	369	38	1270	130
	100:1			345	35	738	75	484	49	1400	143
	120:1			382	39	802	82	586	60	1530	156
	160:1			382	39	841	86	586	60	1530	156

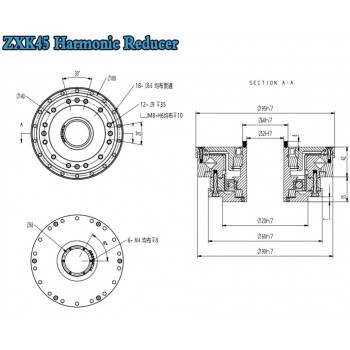

ZXK 45	50:1	≤30	6.7	229	23	650	66	345	35	1235	126	5000	3800	3300	3000	8.68	8.86
	80:1			407	41	918	94	507	52	1651	168
	100:1			459	47	982	100	650	66	2041	208
	160:1			523	53	1147	117	819	84	2483	253

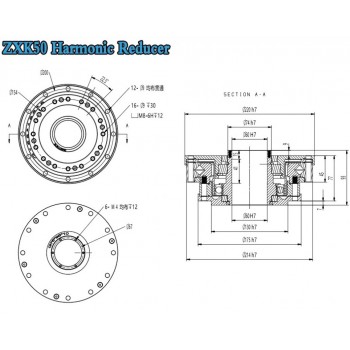

ZXK 50	100:1	≤30	15	611	62	1274	130	866	88	2678	273	4500	3500	3000	2500	12.5	12.8
ZXK 50	160:1	≤30	15	688	70	1534	156	1096	112	3185	325	4500	3500	3000	2500	12.5	12.8
ZXK 58	100:1	≤30	17	905	92	2067	211	1378	141	4134	422	4000	3000	2700	2200	27.3	27.9
ZXK 58	160:1	≤30	17	969	99	2392	244	1573	160	4459	455	4000	3000	2700	2200	27.3	27.9
