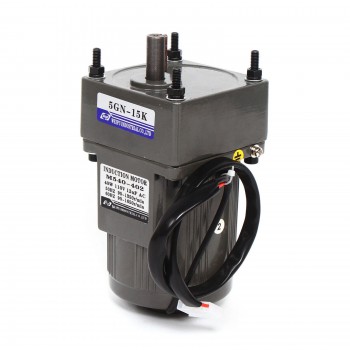

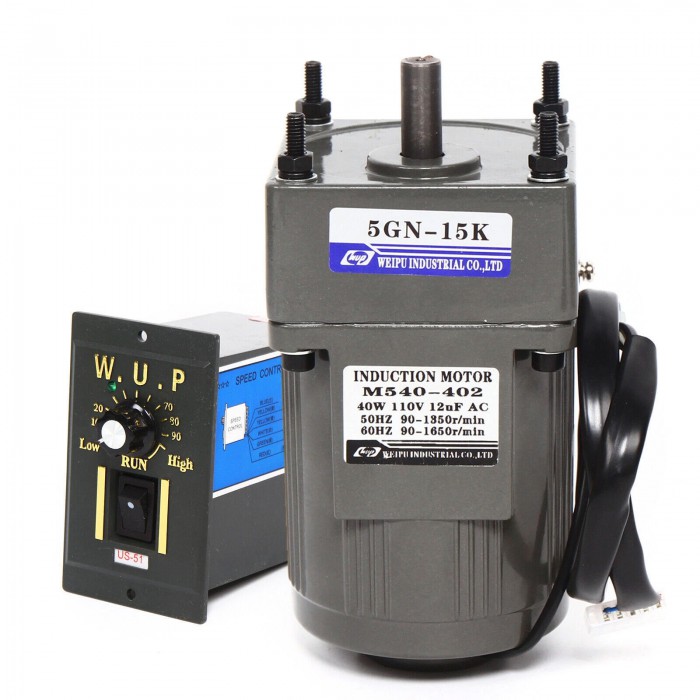

WUP 40W AC Induction Motor 15:1 3.8Nm Gear Reduction Motor Adjustable Speed with Controller

WUP 40W AC Induction Motor 15:1 3.8Nm Gear Reduction Motor Adjustable Speed with Controller

Specification

Material: Aluminum Alloy, 40cr Alloy Steel

Reduction Ratio:15:1

Speed Controller Speed: 0-90r/min

Motor Speed: 50Hz 90-1350r/min; 60Hz 90-1650r/min

Torque: 3.8Nm

Rated Power: 40W

Voltage: 110V/220V

Protection Class: IP54

Noise: Around 60dB

Base Width: 90mm

Motor Hight:118mm

Reducer Hight:41mm

Mounting Hole Distance: 74mm

Disk Size(D*H):34*4mm

Shaft Thickness: 12mm

Shaft Height: 29mm

Net Weight: 3.2kg

Gross Weight: 4kg

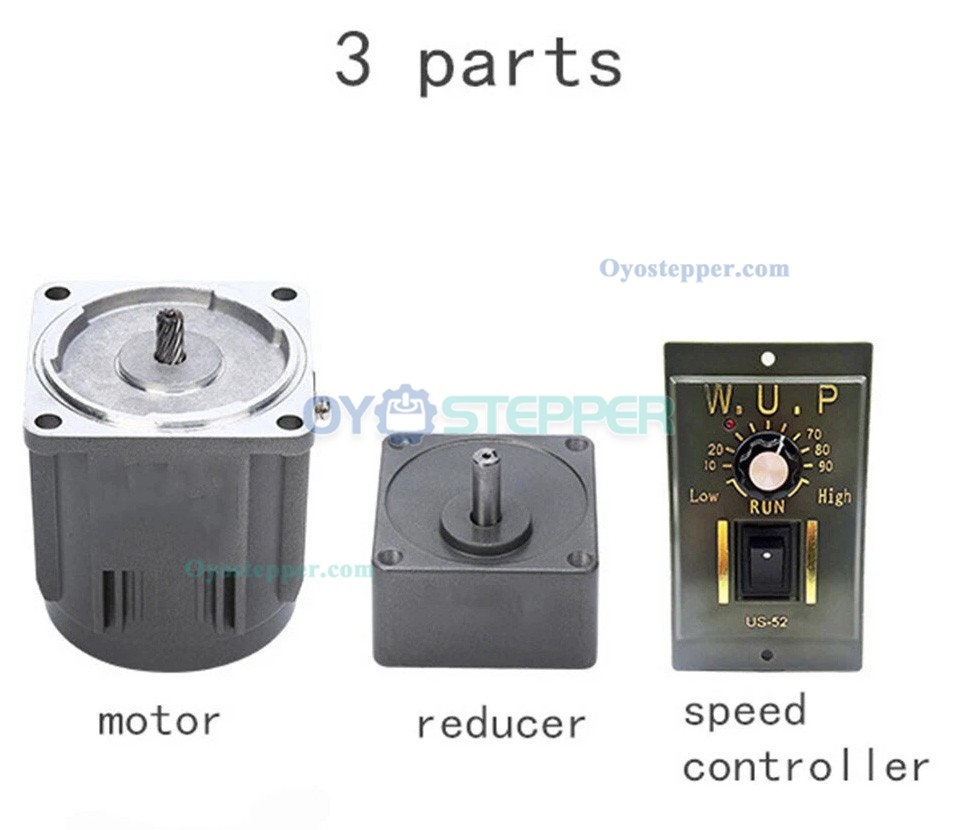

Package Included

1* Gear Motor

1* Reducer

1* Speed Controller;
