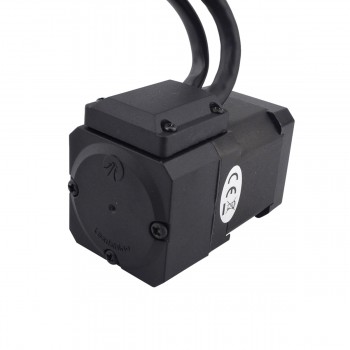

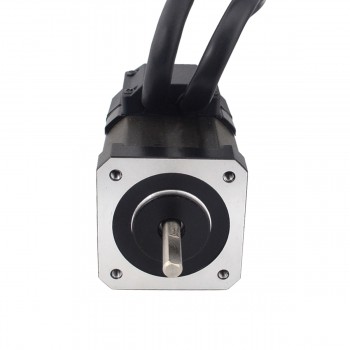

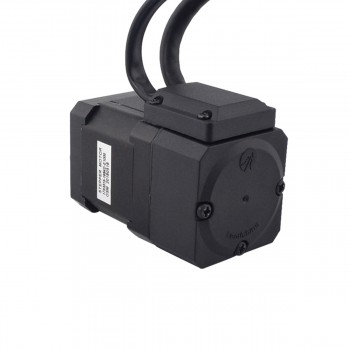

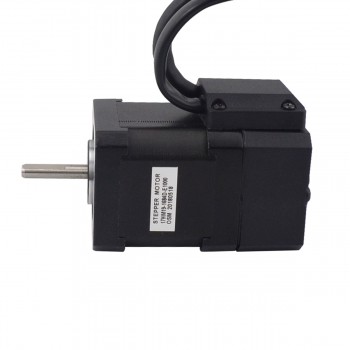

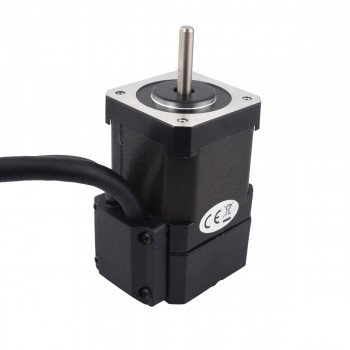

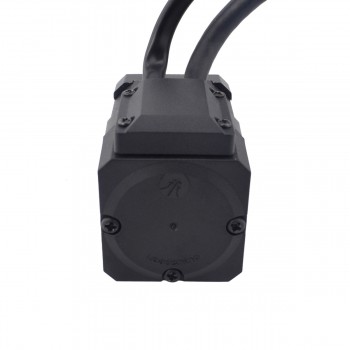

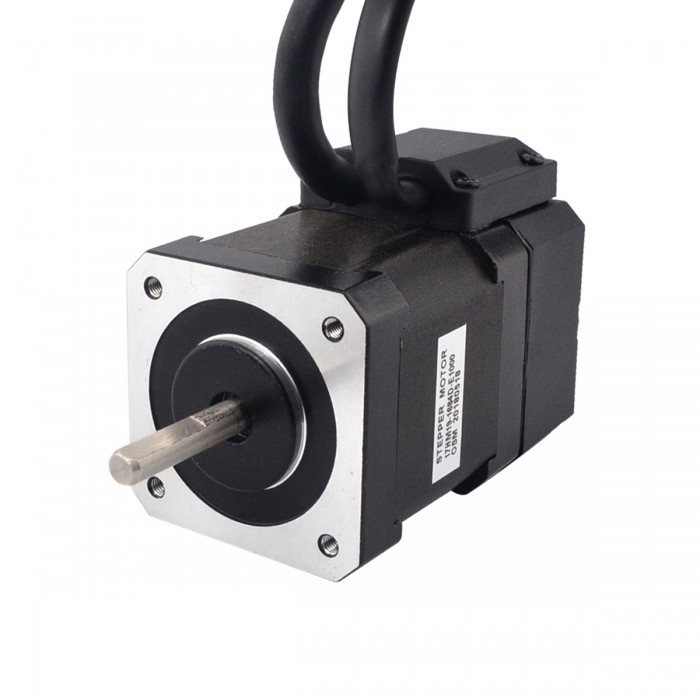

Nema 17 Closed Loop Stepper Motor Bipolar 0.9 Deg 44Ncm/62oz.in 1.68A 2.80V with Encoder 1000CPR
- Manuals and Documentation: Motor Datasheet:
Our Price:$39.13
This Nema 17 bipolar stepper has a 42mm frame, 48mm body, 0.9° step, draws 1.68A, holds 0.44Nm, and comes with a 1000cpr encoder.
Motor Specification
Manufacturer Part Number: 17HM19-1684D-E1000
Motor Type: Bipolar Stepper
Step Angle: 0.9 deg
Holding Torque: 0.44Nm(62.32oz.in)
Rated Current/phase: 1.68A
Voltage: 2.80V
Phase Resistance: 1.65ohms
Inductance: 4.10mH ± 20%(1KHz)
Frame Size: 42 x 42mm
Motor Length: 48mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
D-Cut Length: 15mm
Number of Leads: 4
Lead Length: 500mm
Encoder Specification
Driving Voltage: 4.5V to 5.5V
Output current: 20mA
Resolution: 1000cpr
Output Signal: 2 Channels
Bore Diameter: Φ5mm
Output Frequency: ≤60MHz
Running Speed: ≤3600rpm
IP Protection: IP20

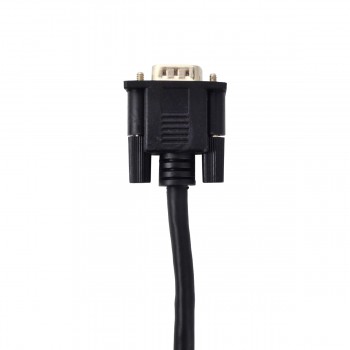

Connection
| A+ | A- | B+ | B- |
| Green | Black | Red | Blue |
| Motor Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 44 |
| Holding Torque (oz.in) | 62.322 |
| Inductance(mH) | 4.1 |
| Lead Length(mm) | 500 |
| Motor Nema Size | Nema 17 |
| No. of Lead | 4 |
| Phase Resistance(ohm) | 1.65 |
| Rated Current (A) | 1.68 |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 24 |
| Step Angle(°) | 0.9 |
| Encoder Specification | |
| IP Protection | IP20 |
| Output Current(mA) | 20 |
| Output Frequency | ≤60KHz |
| Rated Voltage(V) | 5 |
| Resolution(CPR) | 1000 |
| Running Speed(rpm) | ≤3600rpm |
| Output Signal Channels | 2 Channels |
