T6 Series 1000W Digital AC Servo Motor & Driver Kit 3000rpm 3.19Nm with Brake 17-Bit Encoder IP65

T6 Series 1000W AC Servo Motor Kit 3000rpm 3.19Nm w/ Brake 17-Bit Encoder IP65

T6 Series AC servo products are cost-effective AC digital servo which is designed for position accurate control, power range up to 1kW, which can provide a effective solution for different applications, performance with easy configuration process.

Combined with abundant features like MFC, vibration suppression, Multi - mode filter function etc, and with encoder resolution 17bit or 23bit, it can provide machines a intelligent performance.

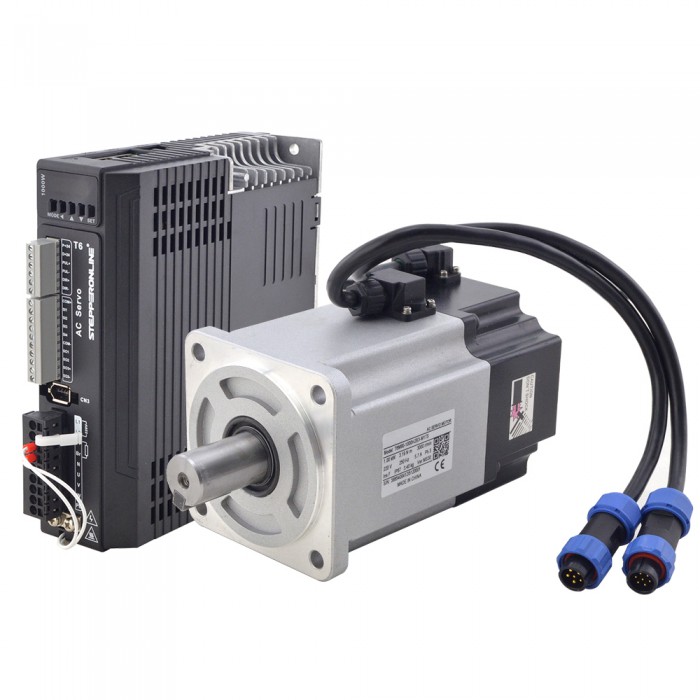

Items in kit

1 x T6-1000RS: 1000W AC Servo Motor Driver

1 x T6M80-1000H2B3-M17S: 1000W AC Servo Motor 3000rpm 3.19Nm w/ Brake 17-Bit Encoder IP65

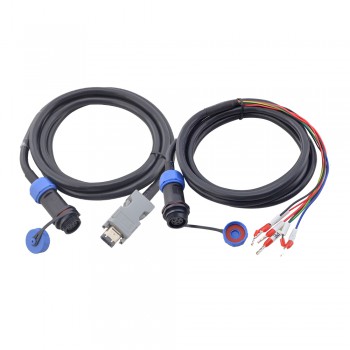

1 x CMBST1M5: 1.5m Motor Extension Cable with IP65 Aviation Connector with Brake Cable

1 x CEST1M5: 1.5m Encoder Extension Cable with IP65 Aviation Connector

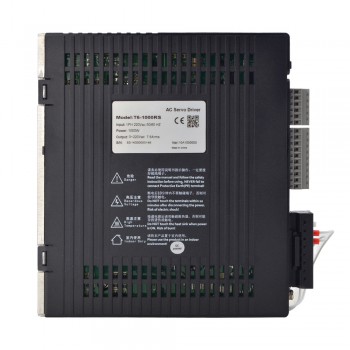

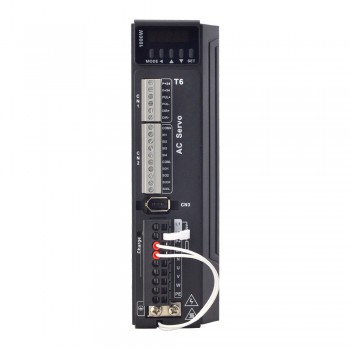

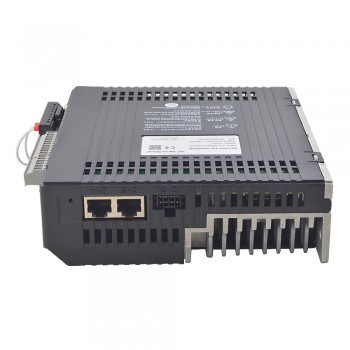

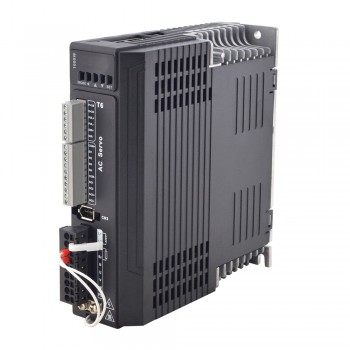

Servo Driver Specification

Part Number: T6-1000RS

Modbus RTU communication

Support pulse control

PR function, 16 paths

Encoder signals A/B/Z differential output and Z OC output

4 inputs and 3 outputs

Rated voltage 220VAC 1ph

Rated power 1000W

Available 17-bit/23-bit encoder

Automatic motor identification

Dimension: 175*168*50mm

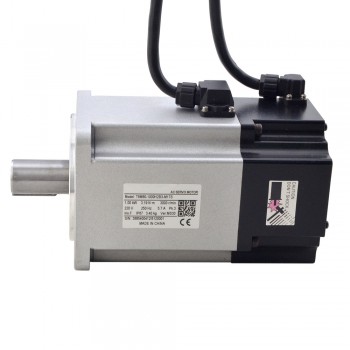

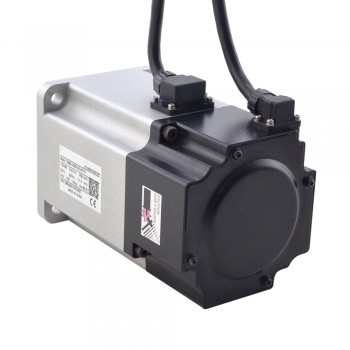

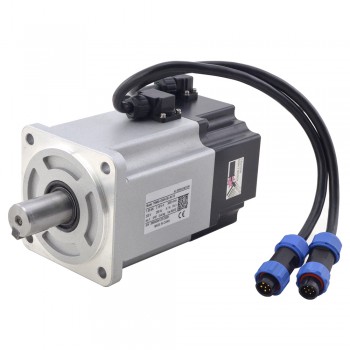

Servo Motor Specification

Part Number: T6M80-1000H2B3-M17S

Rated Voltage: 220VAC

Rated Power: 1000W

Rated Torque: 3.19Nm

Peak Torque: 9.56Nm

Rated Speed: 3000rpm

Peak Speed: 5000rpm

Rated Current: 5.7A

Peak Current: 17.7A

Torque Const: 0.56N.m/A

Back EMF Const: 38.3V/krpm

Resistance: 1.08ohm

Inductance: 5.6mH

Inertia: 2.15kg*m2*10-4

Poles: 10

Encoder: 17 bit incremental encoder

IP Rating: IP65

Mass Weight: 3.4Kg

Resources

• T6_Servo_Full_Manual.pdf
• T6_Servo_Quick_Start.pdf
• T6_Servo_Simple_Manual.pdf
• T6M80-1000H2B3-M17S.pdf
• T6_Motion_Studio_Nature.zip
• T6-1000RS.stp
