T6 Series Kit 400W Digital AC Servo Motor & Driver Kit 3000rpm 1.27Nm with 17-Bit Encoder IP65

T6 Series Kit 400W Digital AC Servo Motor & Driver Kit 3000rpm 1.27Nm with 17-Bit Encoder IP65
NO.:T6-RS400H2A3-M17S
Post a review
Special Offer in April 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till April 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$290.94
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $276.39 5%
5 $270.57 7%
10 $261.85 10%
50 $253.12 13%
Add To Cart

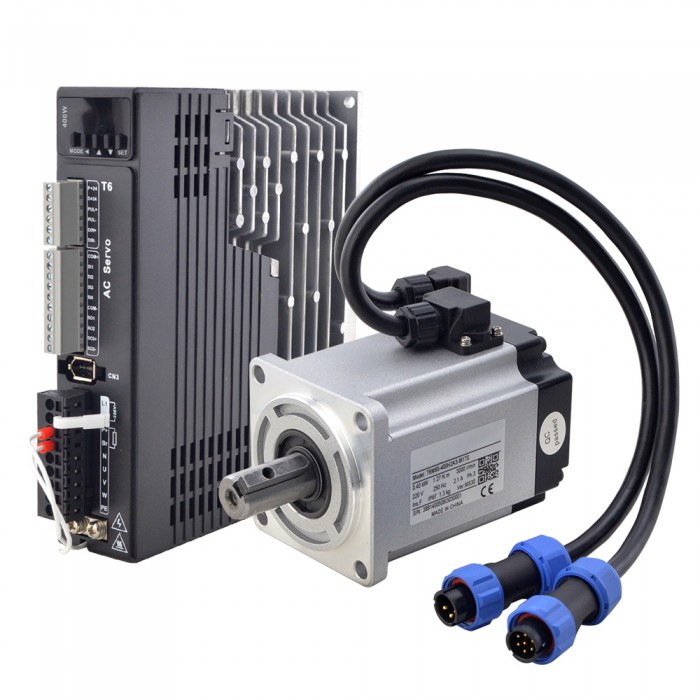

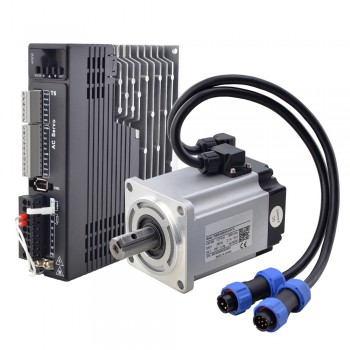

T6 Series 400W AC Servo Motor Kit 3000rpm 1.27Nm 17-Bit Encoder IP65



T6 Series AC servo products are cost-effective AC digital servo which is designed for position high accurate control, power range up to 1kW, which can provide a effective solution for different applications, performance with easy configuration process.

Combined with abundant features like MFC, vibration suppression, Multi - mode filter function etc, and with encoder resolution 17bit or 23bit, it can provide machines a intelligent performance.



Items in kit

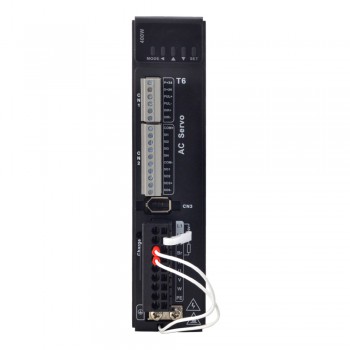

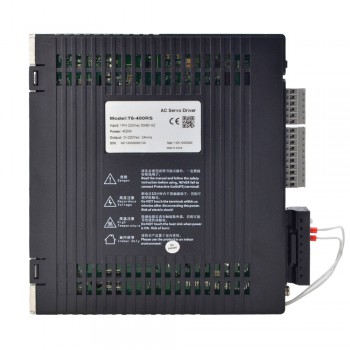

1 x T6-400RS: 400W AC Servo Motor Driver

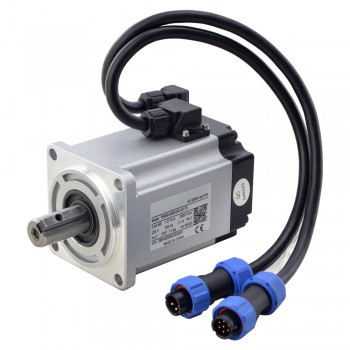

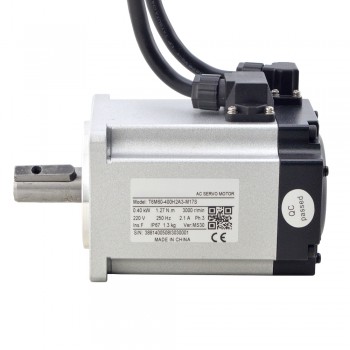

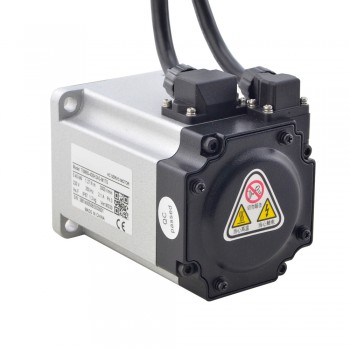

1 x T6M60-400H2A3-M17S: 400W AC Servo Motor 3000rpm 1.27Nm 17-Bit Encoder IP65

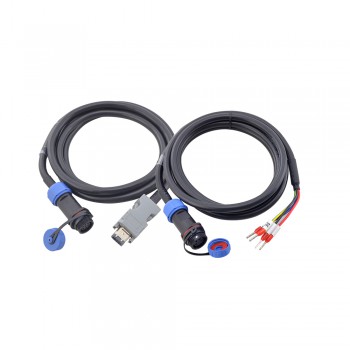

1 x CMST1M5: 1.5m Motor Extension Cable with IP65 Aviation Connector

1 x CEST1M5: 1.5m Encoder Extension Cable with IP65 Aviation Connector

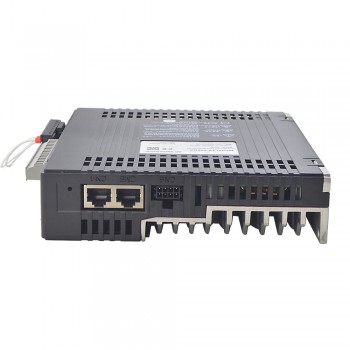

Servo Driver Specification

Part Number: T6-400RS

Modbus RTU communication

Support pulse control

PR function, 16 paths

Encoder signals A/B/Z differential output and Z OC output

4 inputs and 3 outputs

Rated voltage 220VAC 1ph

Rated power 400W

Available 17-bit/23-bit encoder

Automatic motor identification

Dimension: 175*168*40mm



Servo Motor Specification

Part Number: T6M60-400H2A3-M17S

Rated Voltage: 220VAC

Rated Power: 400W

Rated Torque: 1.27Nm

Peak Torque: 3.81Nm

Rated Speed: 3000rpm

Peak Speed: 5000rpm

Rated Current: 2.1A

Peak Current: 6.5A

Torque Const: 0.645N.m/A

Back EMF Const: 39V/krpm

Resistance: 5.7ohm

Inductance: 12mH

Inertia: 0.56kg*m2*10-4

Poles: 10

Encoder: 17 bit incremental encoder

IP Rating: IP65

Mass Weight: 1.3Kg



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: NEMA 8 Non-Captive Acme Linear Actuator Bipolar 0.5A 1.8 Deg 0.02Nm 38.2mm Stack Lead Revolution 4mm(0.1575") Lead Screw 150mm
Next: T6 Series 400W Digital AC Servo Motor & Driver Kit 3000rpm 1.27Nm with Brake 17-Bit Encoder IP65
Servo Motor Specification
Control Modes Modbus RTU / Pulse Mode
Rated Power(W) 400
Input Voltage(V) 220VAC
Rated Speed(rpm) 3000
Rated Torque(Nm) 1.27
Peak Speed(rpm) 5000
Peak Torque(Nm) 3.81
With Brake No
Physical Specification
Frame Size(mm) 60 x 60
Shaft Diameter(mm) 14
IP Rating IP65
