Nema 23 Worm Geared Stepper Motor L=113mm 50:1 Worm Gearbox Stepper Motor NMRV30
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till April 20th, 2024
- Note:No coupon code needed, please place order directly!

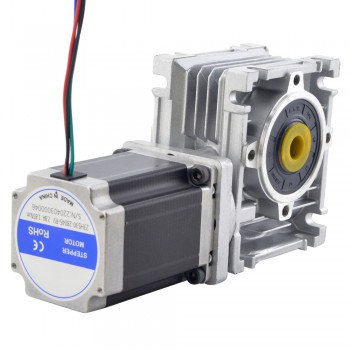

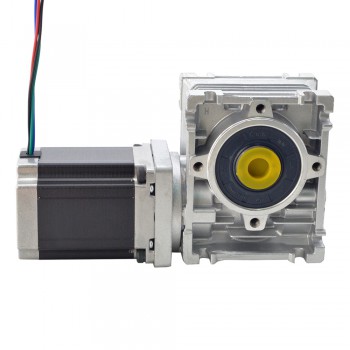

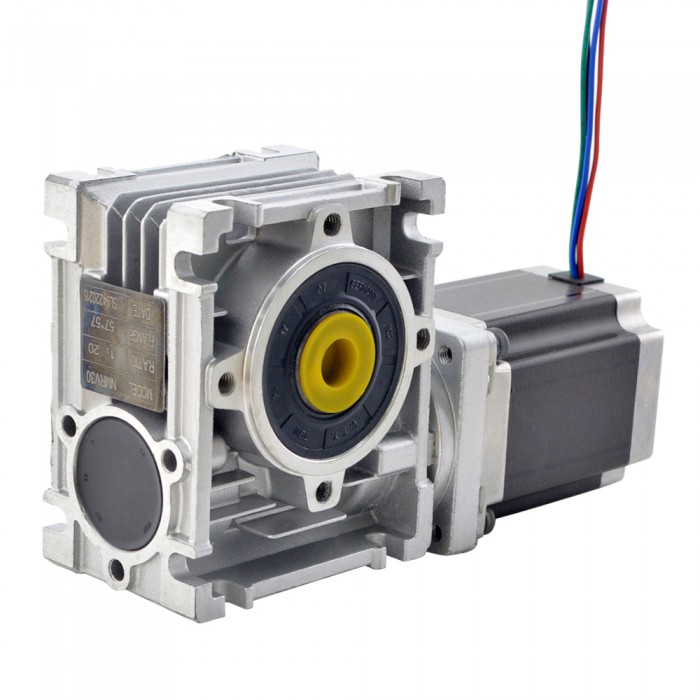

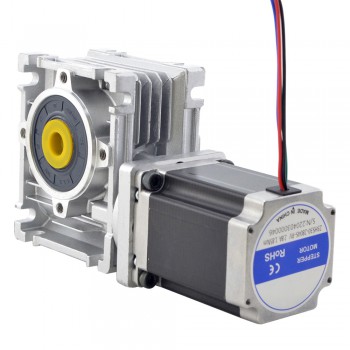

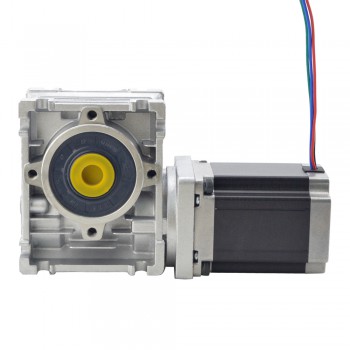

Nema 23 Stepper Motor L=113mm Gear Ratio 50:1 Worm Gearbox NMRV30 Worm Gear Speed Reducer
This Nema 23 size stepper motor is equipped with a 50:1 worm gearbox. Its output shaft is offset by 90° from the drive shaft and characterized by self-locking. It is widely used in CNC Router, Engraving, Milling, Lathe, etc.
Electrical Specification
Manufacturer Part Number: 23HS45-4204S-RV30-G50
Motor Type: Bipolar Stepper
Holding Torque without Gearbox: 3.0Nm(425oz.in)
Rated Current/phase: 4.2A
Phase Resistance: 0.88ohms
Inductance: 3.4mH±20%(1KHz)
Gearbox Specifications
Gearbox Type: Worm Gearbox
Gear Ratio: 50:1
Efficiency: 55%
Backlash at No-load: <=1°
Output Max.Permissible Torque: 17Nm(150.46lb-in)
Output Max. Radial Load: 1.28kN
Physical Specification
Frame Size: 57 x 57mm
Motor Length: 113mm
Output Type: Hollow Bore
Output Bore Diameter: Φ14mm
Connection
| A+ | A- | B+ | B- |
| Black | Green | Red | Blue |
Resources
- Full Datasheet: 23HS45-4204S-RV_Full_Datasheet.pdf, 23HS45-4204S-RV30-G50_Full_Datasheet.pdf
- Torque Curver: 23HS45-4204S-RV_Torque_Curve.pdf
- NMRV030-40-50.pdf
- NMRV30.STEP
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 3.4 |
| Phase Resistance(ohm) | 0.88 |
| Current(A) | 4.2 |
| Holding Torque w/o Gearbox(N.m) | 3.0 |
| Physical Specification | |
| Body Length(mm) | 113 |
| Frame Size(mm) | Nema 23 (57 x 57) |
| Lead Length(mm) | 500 |
| Gearbox Type | Worm Gearbox |
| Gear Ratio | 50 |
| Backlash at No-load | <=1 deg |
| IP Rating | 40 |
| Output Bore Diameter(mm) | 14 |
| Output Type | Hollow Bore |
- Tag:
- Nema 23 Gearbox ,
- Worm Gear
