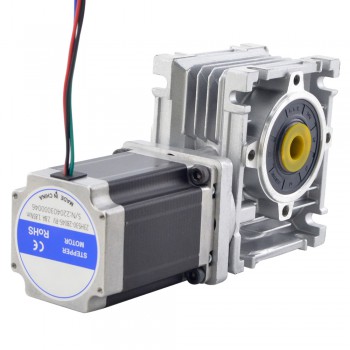

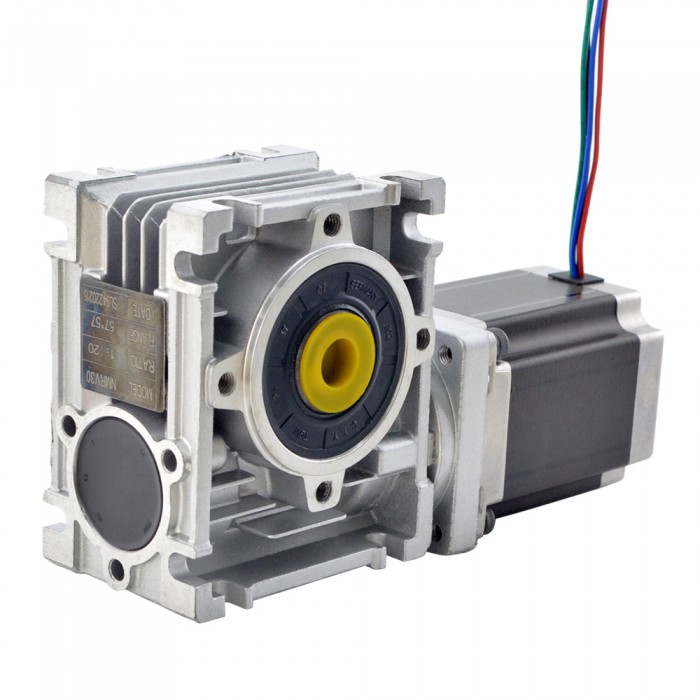

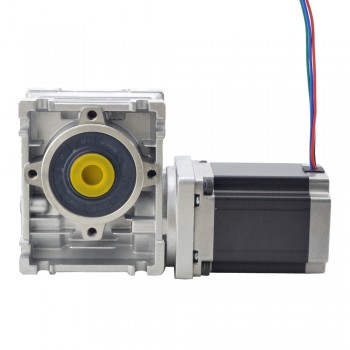

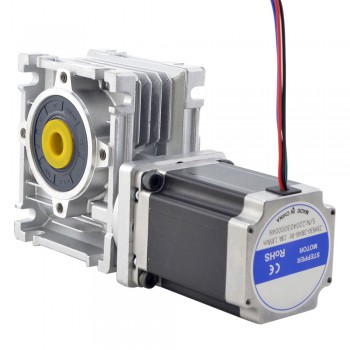

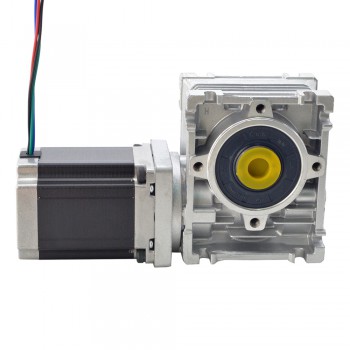

Nema 23 Stepper Motor L=113mm Gear Ratio 30:1 Worm Gearbox NMRV30 Worm Gear Speed Reducer
This Nema 23 size stepper motor is equipped with a 15:1 worm gearbox. It is widely used in CNC Router, Engraving, Milling, Lathe, etc.
Electrical Specification
Manufacturer Part Number: 23HS45-4204S-RV30-G30
Motor Type: Bipolar Stepper
Holding Torque without Gearbox: 3.0Nm(425oz.in)
Rated Current/phase: 4.2A
Phase Resistance: 0.88ohms
Inductance: 3.4mH±20%(1KHz)
Gearbox Specifications
Gearbox Type: Worm Gearbox
Gear Ratio: 30:1
Efficiency: 65%
Backlash at No-load: <=1°
Output Max.Permissible Torque: 20Nm(177.01lb-in)
Output Max. Radial Load: 1.08kN
Physical Specification
Frame Size: 57 x 57mm
Motor Length: 113mm
Output Type: Hollow Bore
Output Bore Diameter: Φ14mm
Connection
| A+ | A- | B+ | B- |
| Black | Green | Red | Blue |
Resources
Full Datasheet: 23HS45-4204S-RV_Full_Datasheet.pdf, 23HS45-4204S-RV30-G30_Full_Datasheet.pdf
Torque Curver: 23HS45-4204S-RV_Torque_Curve.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 3.4 |
| Phase Resistance(ohm) | 0.88 |
| Current(A) | 4.2 |
| Holding Torque w/o Gearbox(N.m) | 3.0 |
| Physical Specification | |
| Body Length(mm) | 113 |
| Frame Size(mm) | Nema 23 (57 x 57) |
| Lead Length(mm) | 500 |
| Gearbox Type | Worm Gearbox |
| Gear Ratio | 30 |
| Backlash at No-load | <=1 deg |
| IP Rating | 40 |
| Output Bore Diameter(mm) | 14 |
| Output Type | Hollow Bore |
