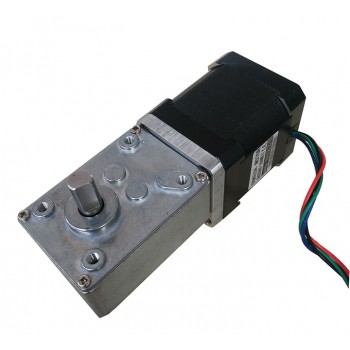

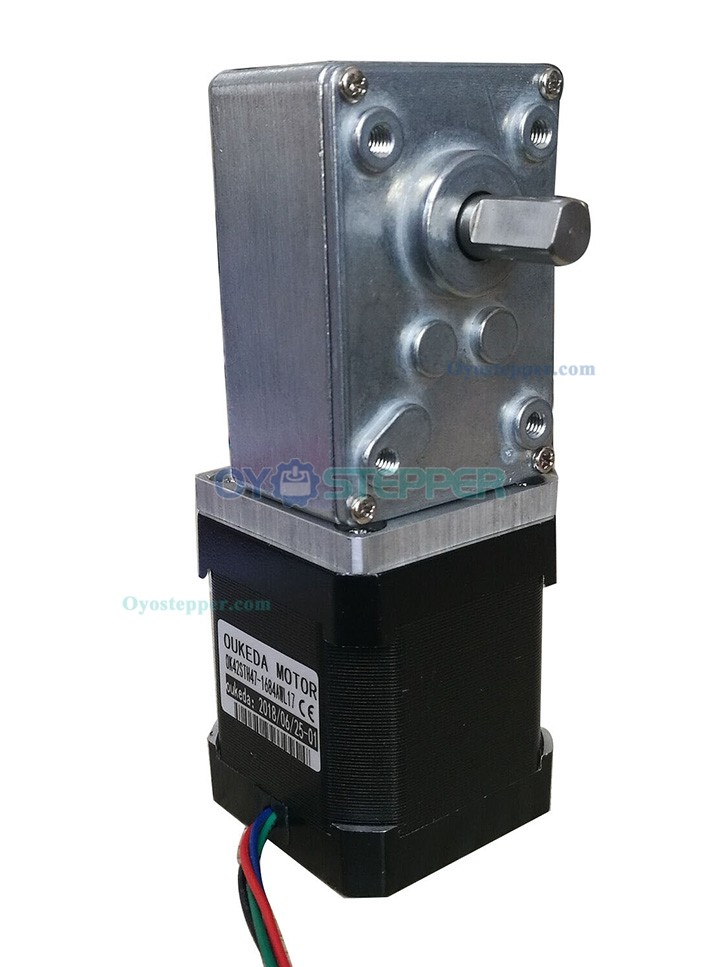

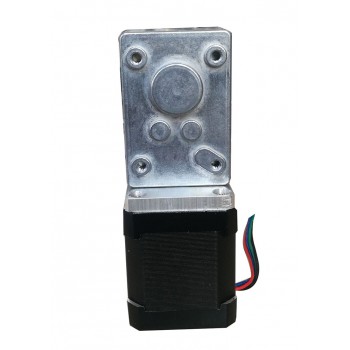

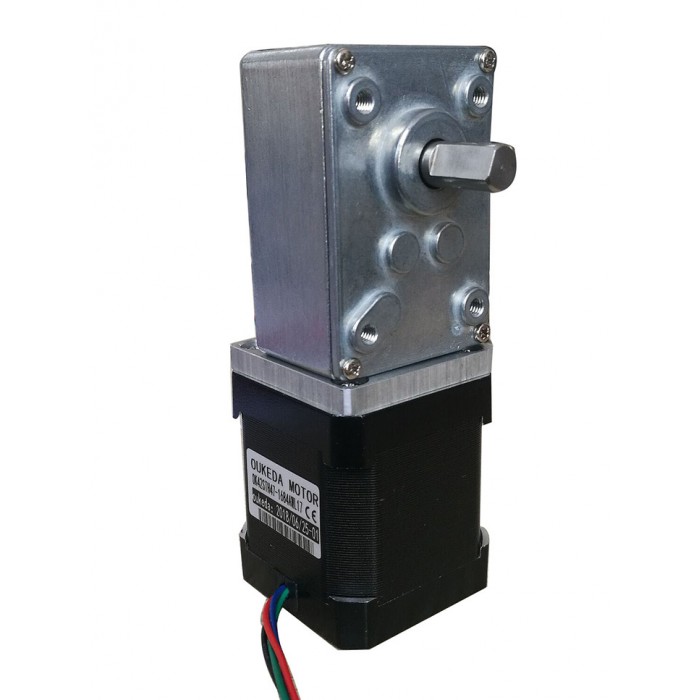

Oukeda Nema 17 Worm Gearbox Stepper Motor 17:1/30:1/50:1/75:1/100:1/290:1/500:1 1.8 Deg 44Ncm 1.68A 2 Phase
Oukeda Nema 17 Worm Gearbox Stepper Motor 17:1/30:1/50:1/75:1/100:1/290:1/500:1 1.8 Deg 44Ncm 1.68A 2 Phase
Electrical Specification:
Manufacturer Part Number:Oukeda1744mc
Step Angle: 1.8deg
Number of Phase:2
Holding Torque without Gearbox: 44Ncm(62.31oz.in)
Rated Current/phase: 1.68A
Rated Speed:400rpm
Rated Power:10W
Rated Volate:12-36V
Gearbox Type: Worm Gearbox
Gear Ratio: 17:1/30:1/50:1/75:1/100:1/290:1/500:1;
Physical Specification:

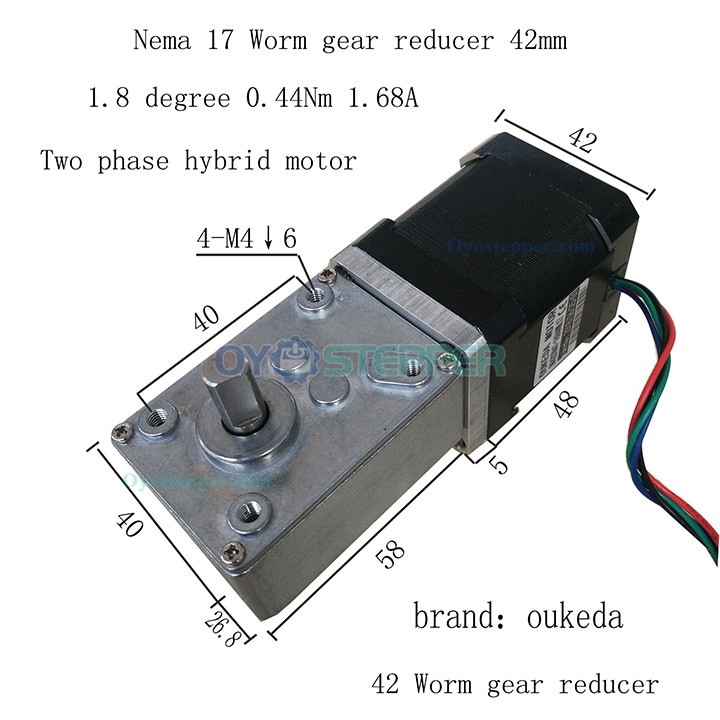

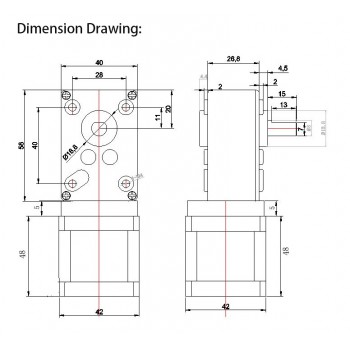

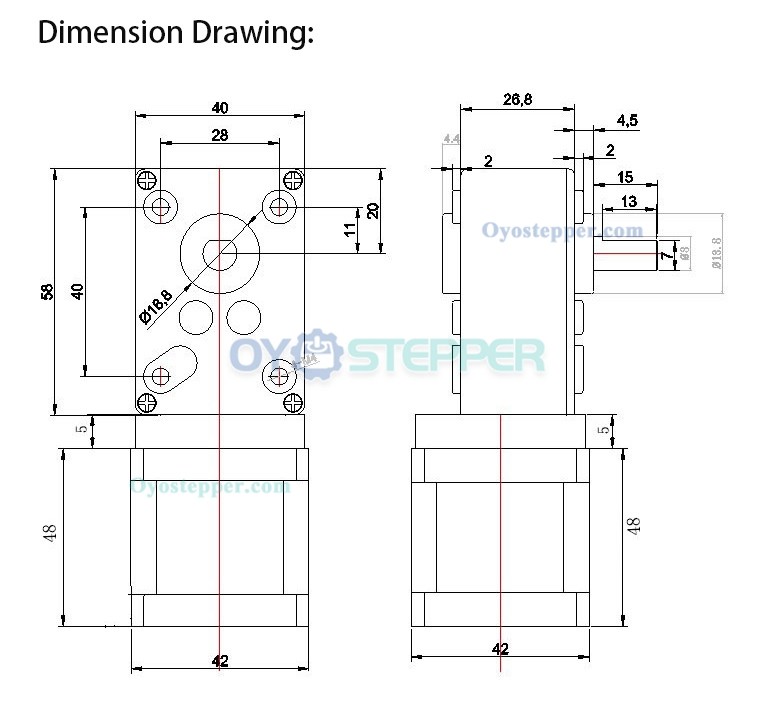

Frame Size: 42 x 42mm
Motor Length: 106mm
Weigh:400g;
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
