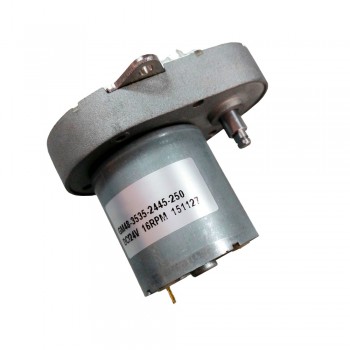

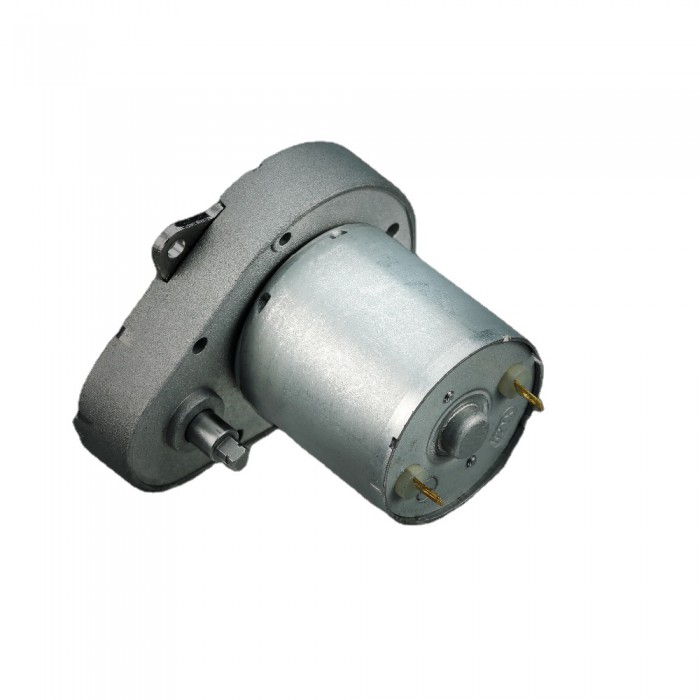

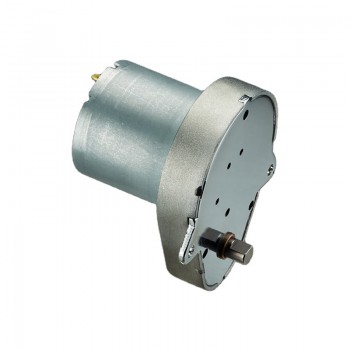

2Pcs 12V 24V Small Pear Shape DC Gear Motor with Worm Gearbox 5kg.cm 48*43.5mm
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till December 3th, 2024
- Note:No coupon code needed, please place order directly!

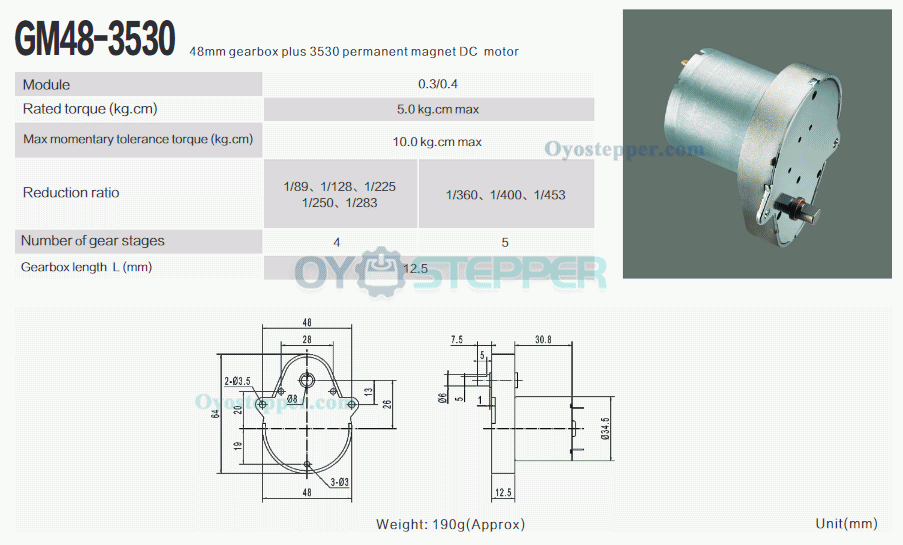

2Pcs 12V/24V Pear Shape DC Gear Motor with Worm Gearbox GM48-3530 Max.Rated Torque 5kg.cm 48*64mm
Features:
1.Small size dc gear motor with low speed and big torque
2.Suitable to small diameter, low noise and big toque application
3.Reduction Ratio: 89、128、225、250、283、360、400、453 etc;
Application:
BOAT, Car, Electric Bicycle, Home Appliance, Cosmetic instrument, SMART HOME, Industrial equipment.

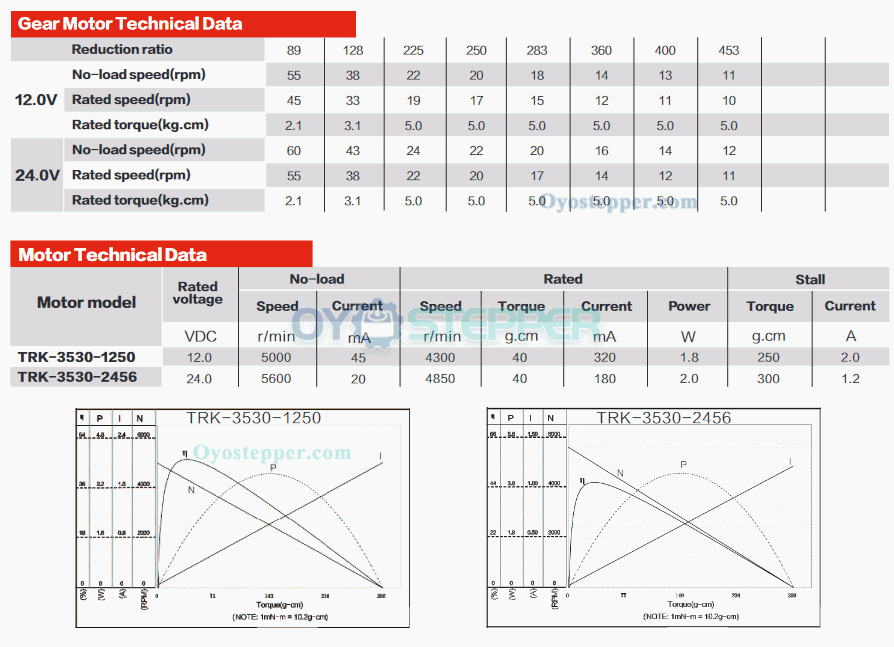

Electrical Specification：
Part Number:GM48-3530
Rated Voltage:12/24VDC
Rated Torque:5.0kg.cm
Max momentary tolerance torque: 10.0kg.cm
Rated current:320mA(12V)/180mA(24V)
No Load Speed W/O Gearbox: 5000RPM(12V)/5600RPM(24V)
Rated Speed W/O Gearbox: 4300RPM(12V)/4850RPM(24V)
No Load Speed W Gearbox: 11-60 RPM
Rated Speed W/ Gearbox:10-55 RPM
Rated Power:1.8W(12V)/2.0W(24V)
Gear type:Worm gearbox
Noise:30cm.40-50db;

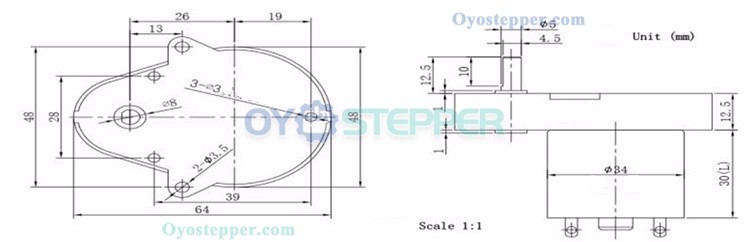

Physical Specification:
Motor Size:Φ34*30mm
Motor Diameter:34mm
Length:30+12.5
D-cut Length: 10mm
D-cut Diameter:4.5mm
Shaft Length:11.5mm
Shaft Diameter:5mm
Weight:190g;
Resources
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Physical Specification | |
|---|---|
| Gear Ratio | 10-1212 / DC Spur Gear Motor / 89:1 / 250:1 / 72 / 360:1 / S2812 / 453:1 |
| Body Length(mm) | 42.5 |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 12.5 |
| Gearbox Type | s2806.5 |
| Shaft Type | D-Cut |
| Single Shaft/Dual Shaft | Single Shaft |
| Weight(g) | 190 |
| Electrical Specification | |
| Rated Voltage(V) | 24 / 12 |
| Rated Power(W) | 2.0 / 1.8 |
| Rated Torque(kg.cm) | 5 |
| Rated Speed(rpm) | 10~55 |
| Rated Current (A) | S2306.5 / 0.18 |
