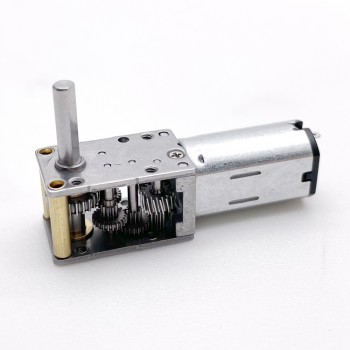

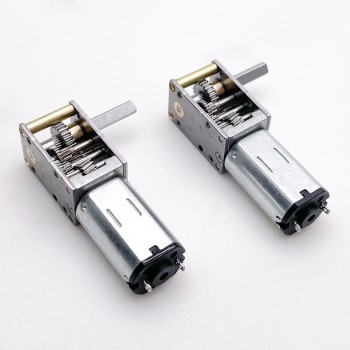

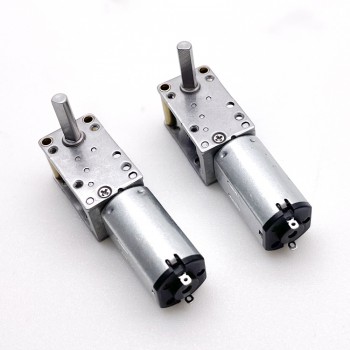

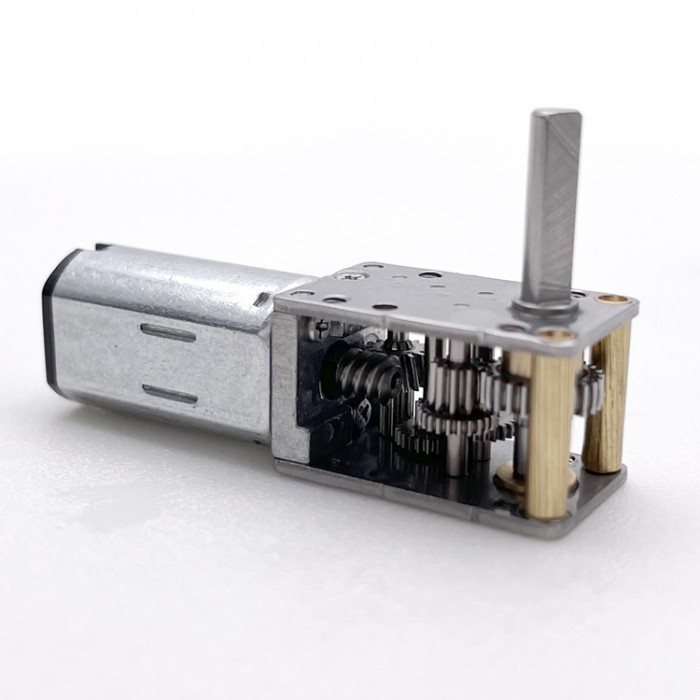

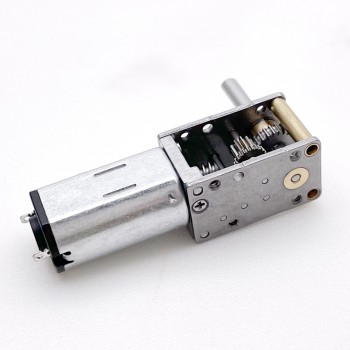

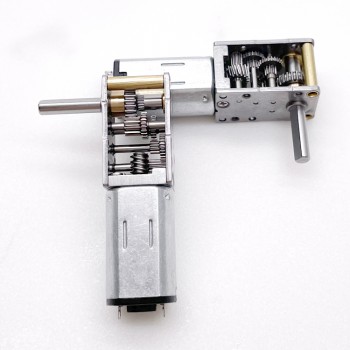

2Pcs 6V 12V Mini DC Worm Gear Motor 1kg.cm 12*20mm 90 Degree Output Shaft
DC Worm Gear Motors is the effective solution for powerful and efficient motor drive applications. The motor is designed to deliver high torque output even at low speeds, making it suitable for a variety of industrial and automotive applications.
Features:
1. Small size dc gear motor with low speed and big torque
2. 2.12*20mm gear motor provide 1.0Nm torque and more reliable
3. Suitable to small diameter, low noise and big torque application
4. Dc Gear motors can match encoder,3ppr
5. Reduction Ratio: 40、80、95、190、219、438、504、1007、
6. Motor:Can be equip N10，N20，N30 and N50 dc brushed motor;
4 stages: 40:1/80:1/95:1/190:1
5 stages: 219:1/438:1
6 stages: 504:1 /1007:1
Application:
BOAT, Car, Electric Bicycle, Home Appliance, Industrial equipment.

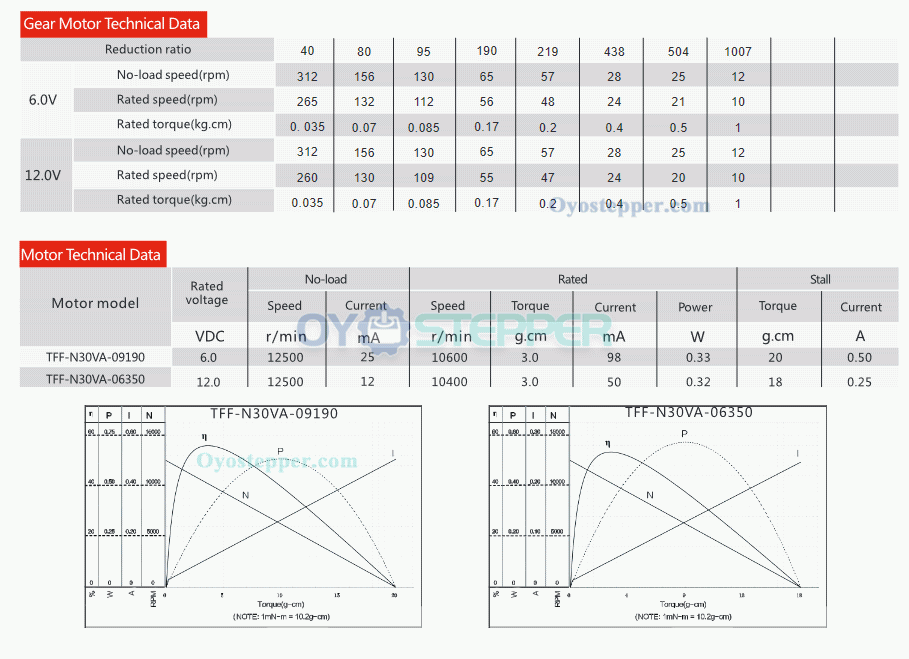

Electrical Specification
Part Number:TWG1220-N30VA
Rated Voltage:6V/12VDC
Rated Torque:1.0Kg.cm max
Max momentary tolerance torque: 2.0kg.cm
Rated current:98mA(6V)/50mA(12V)
No Load Speed W/O Gearbox: 12500RPM(6V)/12500RPM(12V)
Rated Speed W/O Gearbox: 10600RPM(6V)/10400RPM(12V)
No Load Speed W Gearbox: 12-312 RPM
Rated Speed W/ Gearbox:10-265 RPM
Rated Power:0.33W(6V) /0.32W(12V)
Gear type:Worm gearbox
Type:Brush PMDC Motor
Efficiency: 80%-90%
Construction:Permanent Magnet
Noise:30cm.<40db

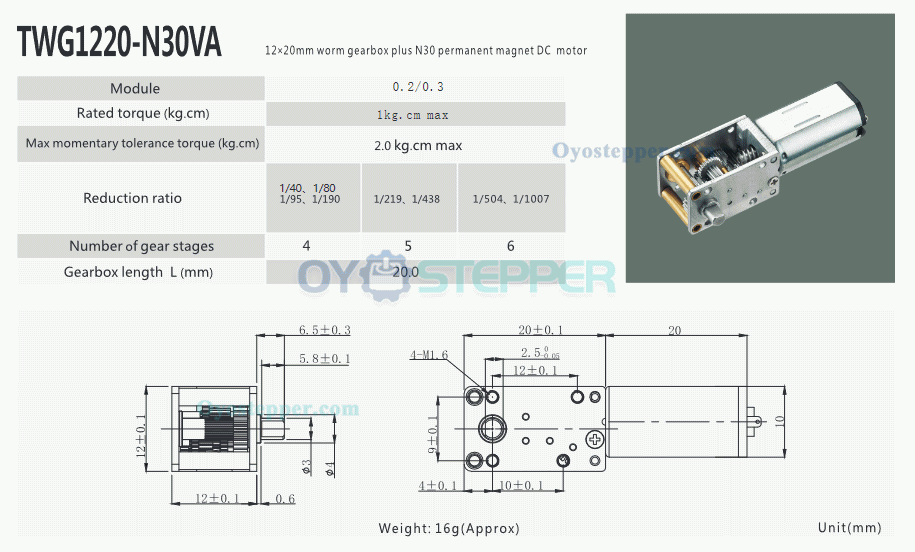

Physical Specification:
Motor Size:12*20mm
Motor Diameter:12mm
Length:20mm+Planetary gearbox
Gearbox Length:20mm
Shaft Type:D-cut
D-cut Diameter:2.5mm
D-cut Length:5.8mm
Shaft Diameter:3mm
Shaft Length:5.8mm
Weight:16g;
Resources
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Physical Specification | |
|---|---|
| Frame Size(mm) | 12x20 |
| Shaft Diameter(mm) | 3 |
| Shaft Length(mm) | 5.8 |
| Gearbox Type | Worm gearbox |
| Body Length(mm) | 20+gearbox |
| Gearbox Length(mm) | 20 |
| Gear Ratio | 40:1 / 80:1 / 95:1 / 190:1 / 219:1 / 504:1 / 1007:1 / 438:1 |
| Shaft Type | D-Cut |
| Single Shaft/Dual Shaft | 40 |
| Weight(g) | 16 |
| Electrical Specification | |
| Rated Power(W) | 0.33 / 0.32 |
| Rated Voltage(V) | 6 / 12 |
| Rated Torque(kg.cm) | 1 |
| Rated Speed(rpm) | 10-265 |
| Rated Current (A) | 0.098 / 0.05 |
