MOONS PG22L45 22mm 1:45.2 Mini Stepper Motor with Planetary Gearbox Gear Motor 2-Phase 4 Wires

MOONS PG22L45 22mm 1:45.2 Mini Stepper Motor with Planetary Gearbox Gear Motor 2-Phase 4 Wires

Specifications

Model: PG22L45 (2-20P020L0-17)

Motor Type: 2-phase, 4-wire stepper motor.

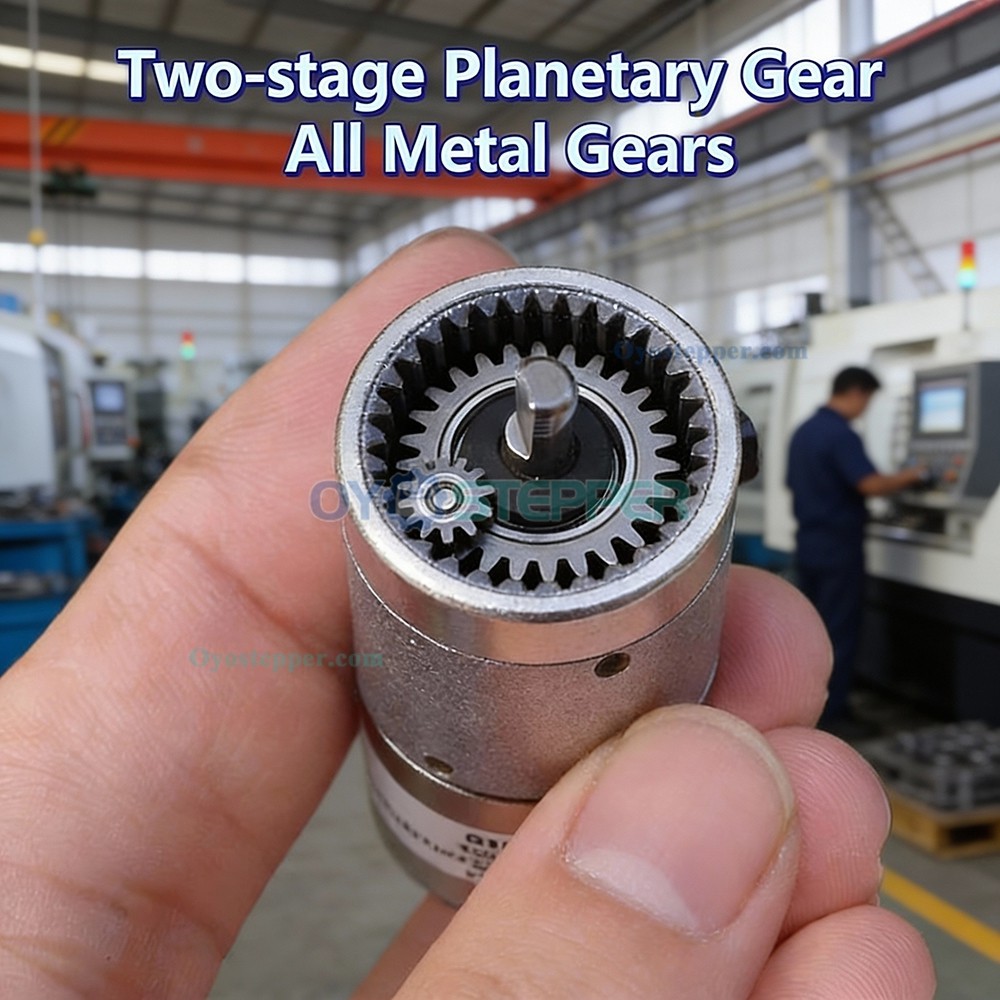

Gearbox Type: 2-stage planetary reduction gearbox.

Gear Material: Metal gears.

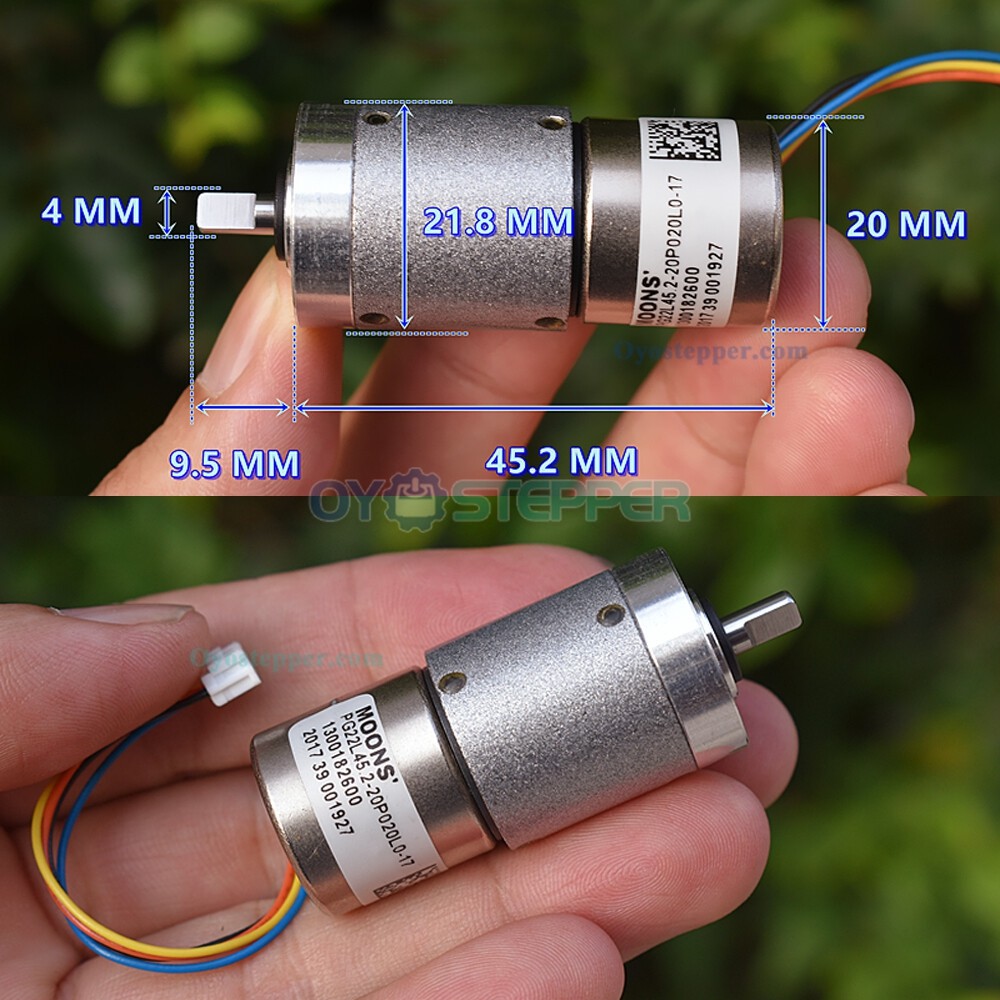

Motor Diameter: 20 mm.

Gearbox Diameter: 21.8 mm.

Total Length (Motor + Gearbox): 45.2 mm.

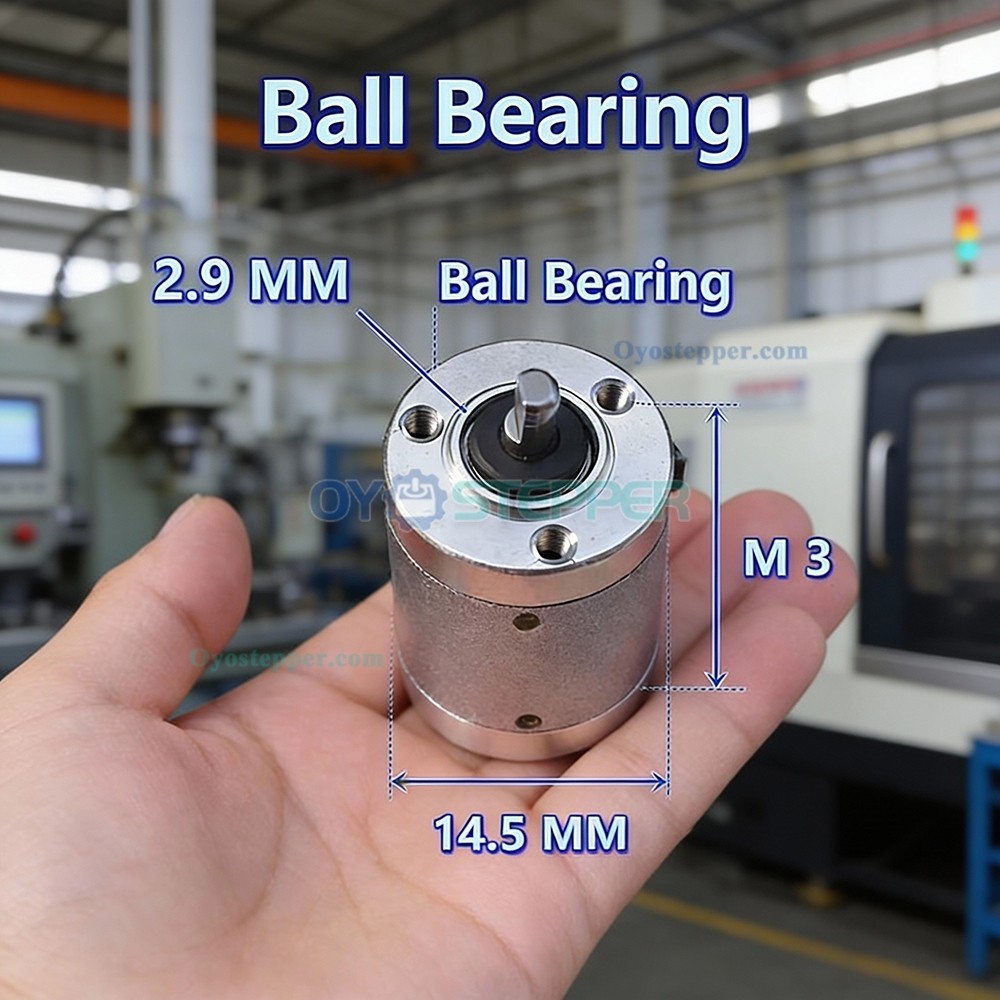

Output Shaft Diameter: 4 mm (with a 2.9 mm flat).

Output Shaft Length: 9.5 mm.

Output Shaft Bearing: Ball bearing.

Reduction Ratio: 1:45.2.

Step Angle (Output Shaft): 0.4 degrees (904 pulses per revolution).

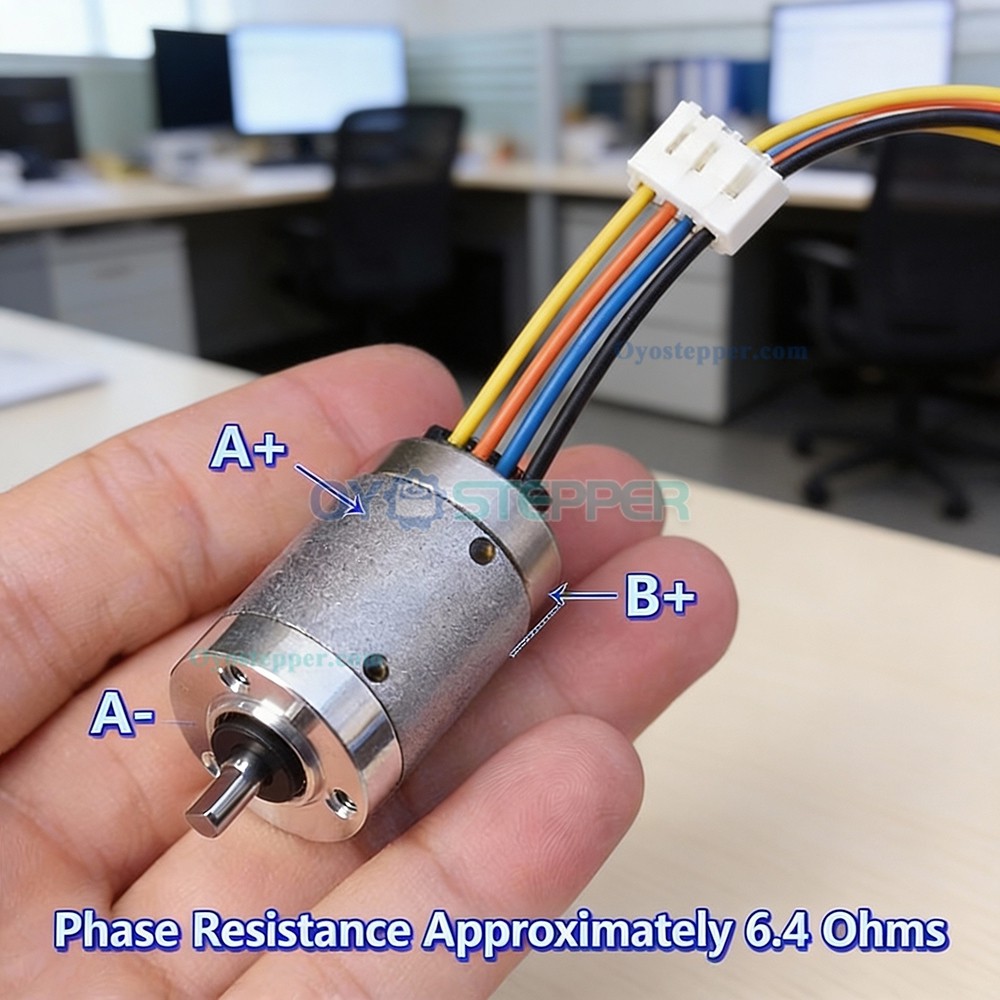

Motor Phase Resistance: 6.4 ohms.

Cable Length: Approximately 70 mm.

Weight: 70 grams.



Package Contents:

Stepper reducer motor x 1
