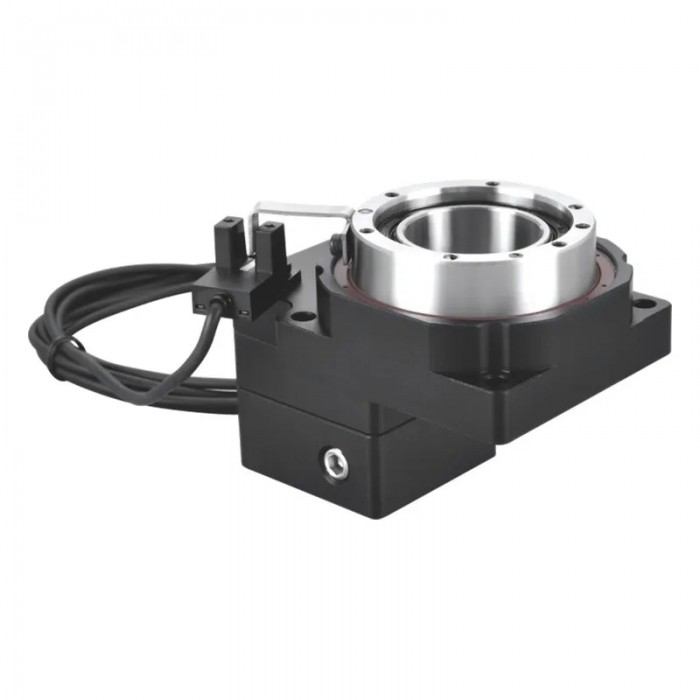

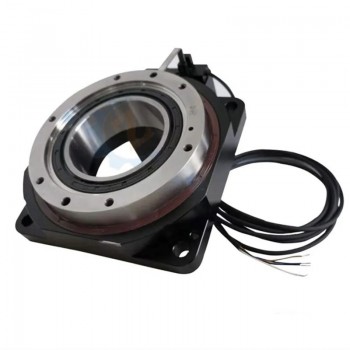

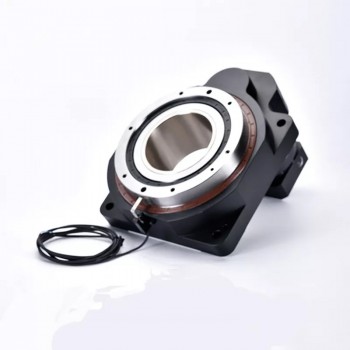

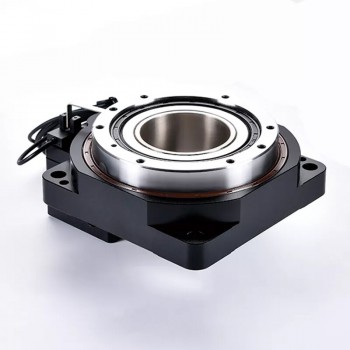

10:1 Hollow Rotary Platform Rotating Gearbox for 57mm Nema 23 Stepper Motor /Servo Motor
10:1 Hollow Rotary Platform Rotating Gearbox for 57mm Nema 23 Stepper Motor /Servo Motor
Models:
ZCT85-10 8-38.1 Hollow Rotary Platform Rotating Table Gearbox Reducer ratio 10:1 for 57 frame nema23 stepper motor input shaft 8mm
PLEASE READ THE FOLLOWING NOTICE BEFORE ORDER:
1st:Reduction Ratio
The reduction ratio of the reducer you ordered is: 10:1
2nd:Input Size
We will ship the reducer as the standard dimension as follows:
| Model | Frame | Reduction ratio | Shaft diameter of motor | mounting flange | Screw hole distance |
| ZCT85-10 for Nema 23 Stepper Motor | 57mm | 10:1 | 14mm | 38.1mm | φ=66.7mm |
| ZCT85-10 for for 60 Frame Servo Motor | 60mm | 10:1 | 8mm | 38.1mm | φ=66.7mm |
If any question on the dimension of the reducer, please write me the dimension drawing of your motor. We offer customize service for your motor and can help you choose the suitable planetary reducer for your motor.
Here is the parameters of the planetary reducer:

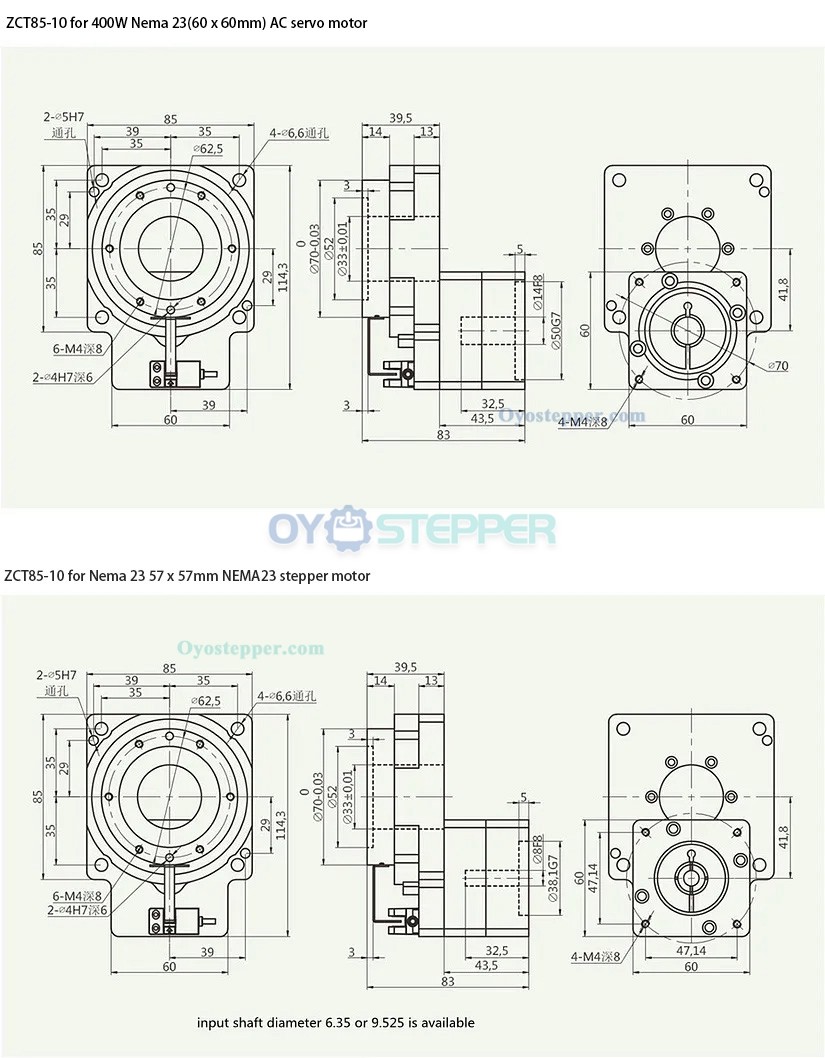

.jpg "10:1 Hollow Rotary Platform Rotating Gearbox for 57mm Nema 23 Stepper Motor /Servo Motor")
.jpg "10:1 Hollow Rotary Platform Rotating Gearbox for 57mm Nema 23 Stepper Motor /Servo Motor")
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Physical Specification | |
|---|---|
| Frame Size(mm) | 60 x 60 |
| Input Shaft Diameter(mm) | 8 / 14 |
| Input Shaft Length(mm) | 32.5 |
| Suit for Motor | Nema 23 / 60x60 Servo |
| Gearbox Type | Hollow Rotary Actuator |
| Gear Ratio | 10:1 |
| Backlash at No-load | No backlash |
| Input Shaft Max. Length | 32.5 |
