Nema 42 110mm 3 Phase Stepper Motor 12/16/20Nm 1.2° keyway Shaft For Heavy-Duty CNC Milling Machine
Nema 42 110mm 3 Phase Stepper Motor 12/16/20Nm 1.2° keyway Shaft For Heavy-Duty CNC Milling Machine

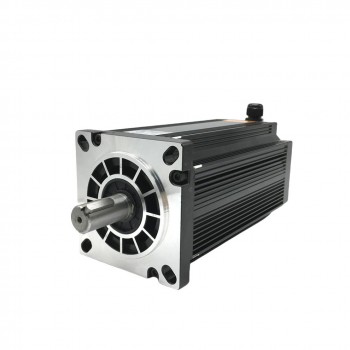

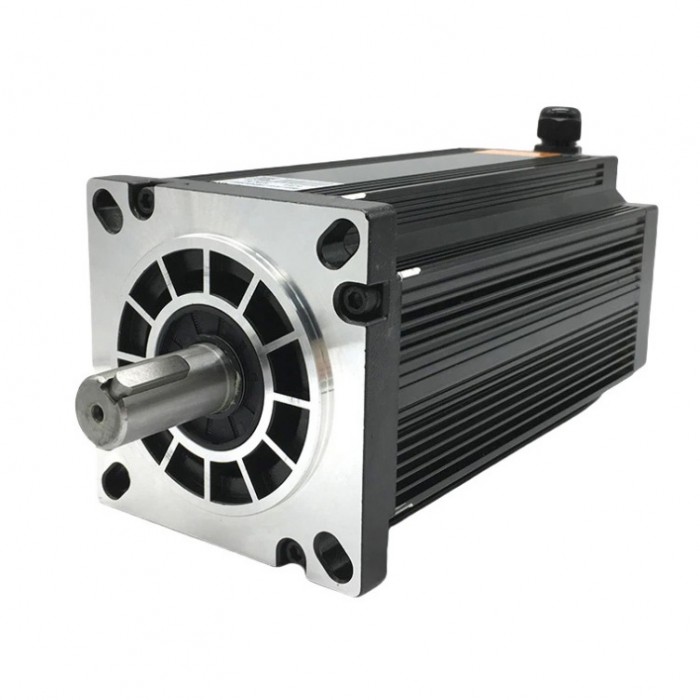

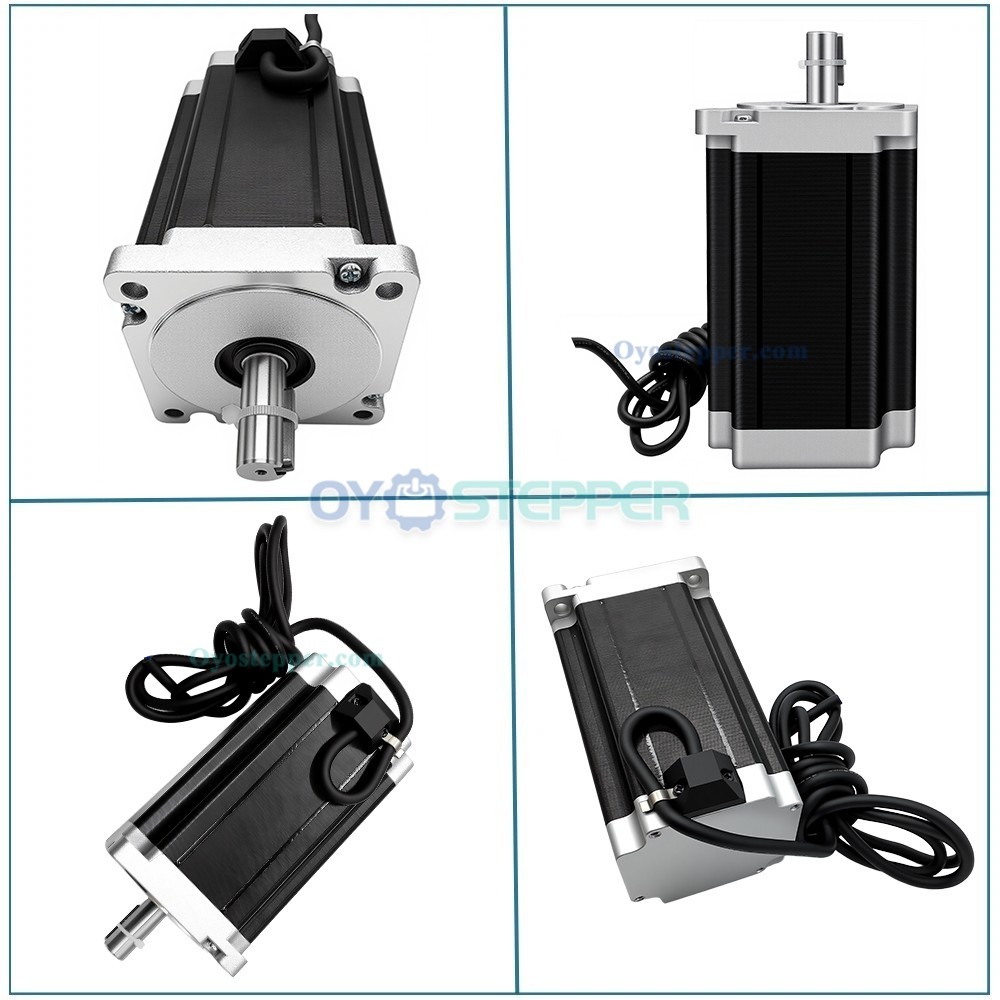

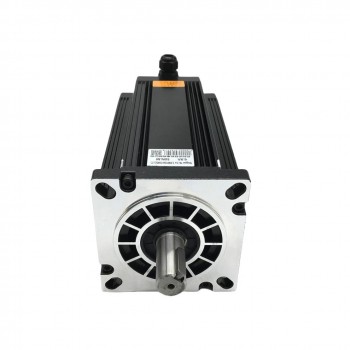

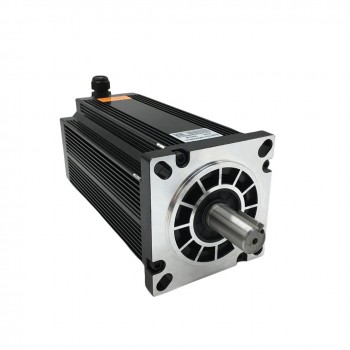

It is a 3-phase stepper motor with phase memory function (resumes position after power recovery). Cast iron body with a 19mm keyed shaft.

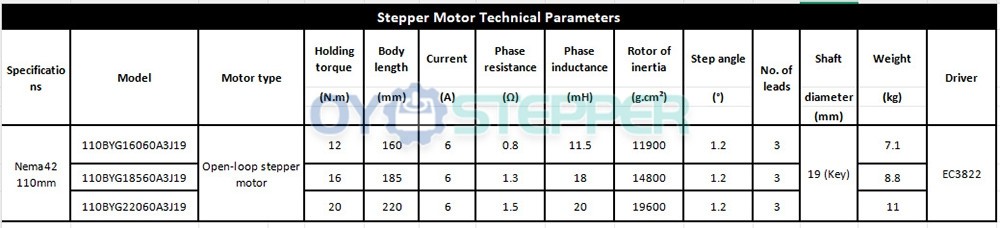

Specifications:
Phase:3-Phase
Step Angle: 1.2°
Holding Torque: 12/16/20N.m

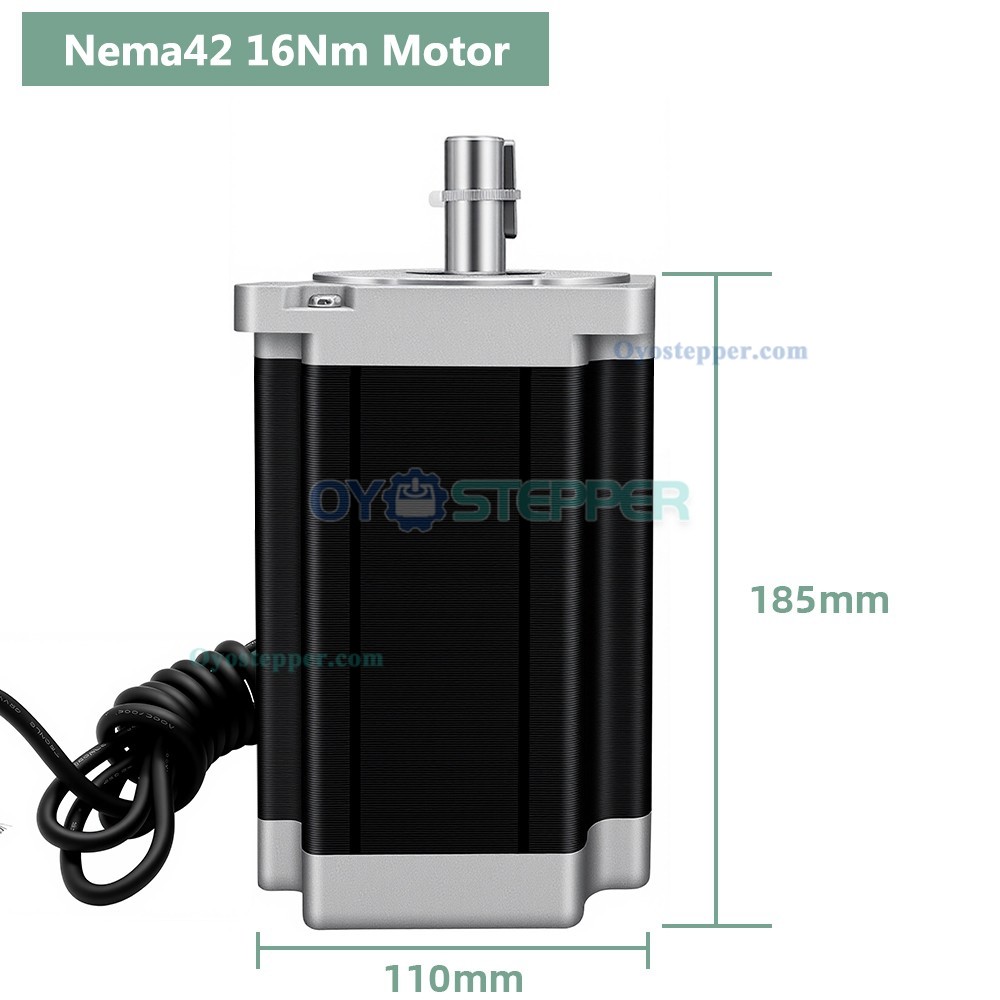

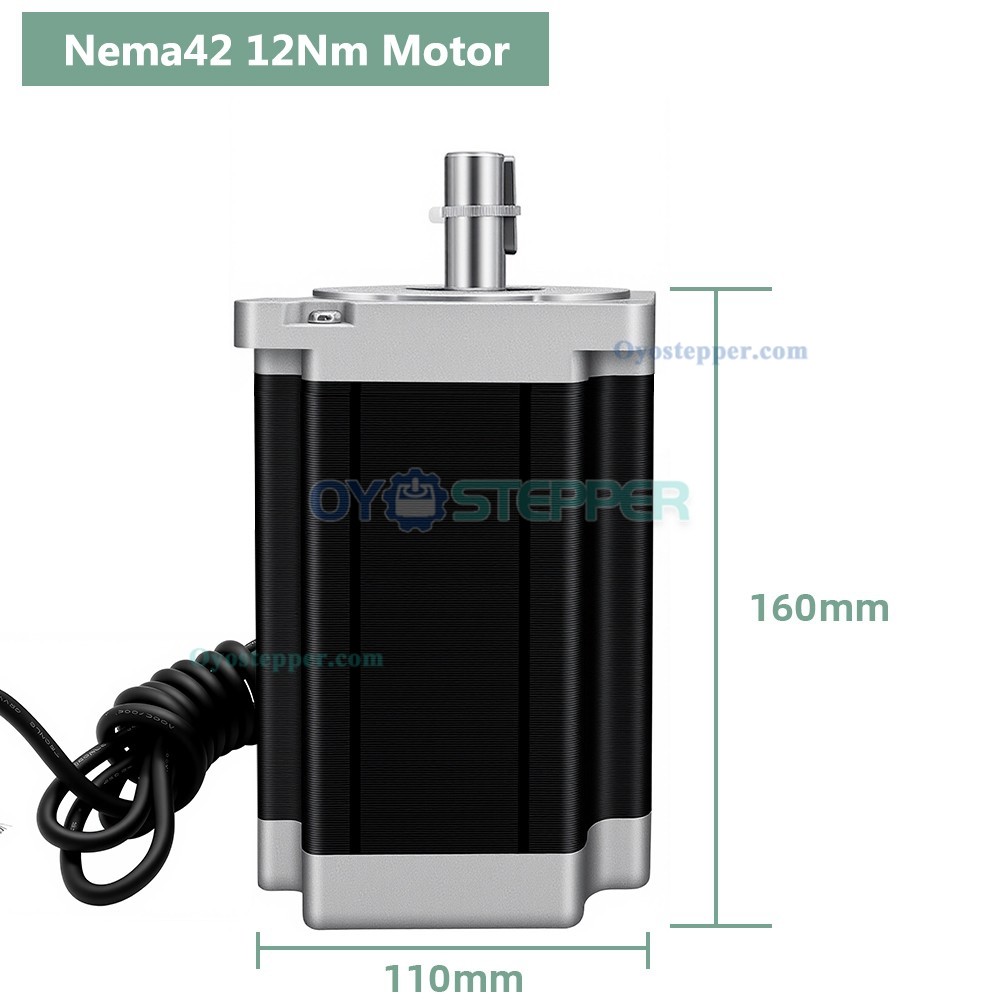

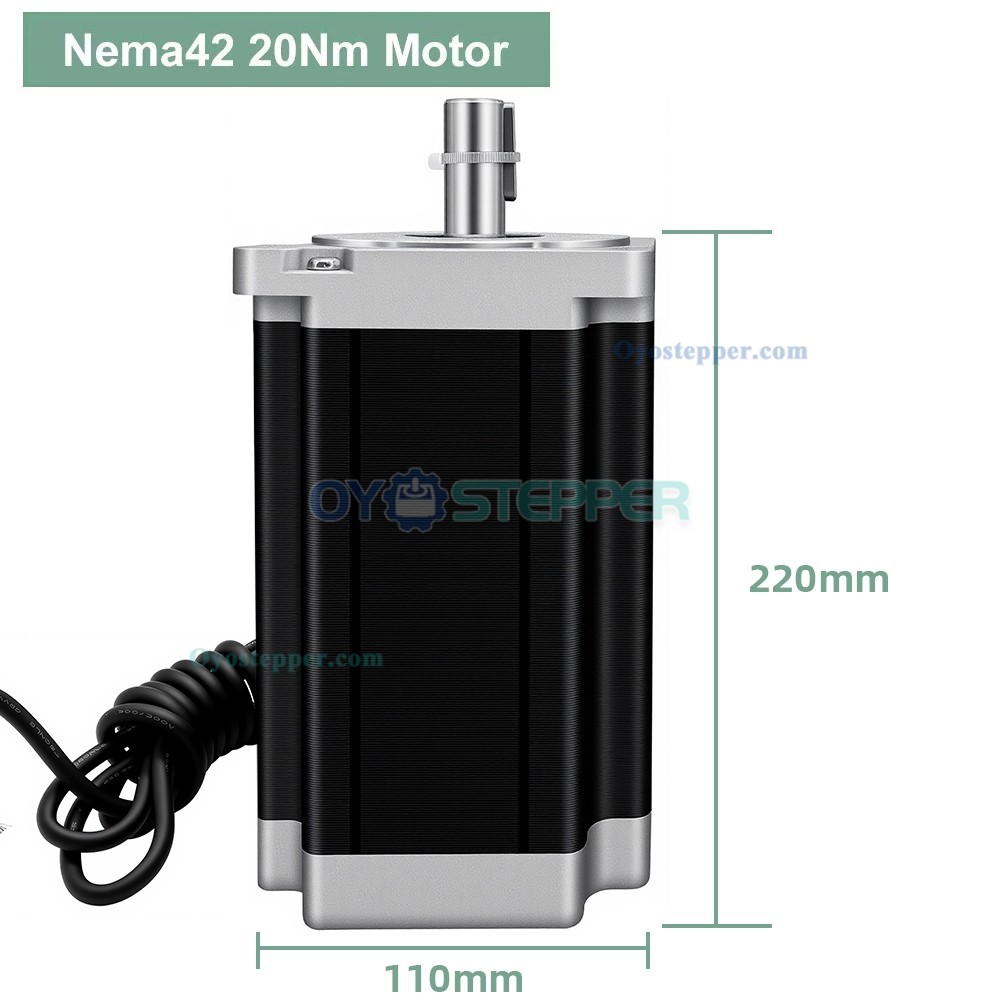

Body Length: 160/185/220mm
Rated Current: 6A
Number of Leads: 3
Shaft Diameter:19mm (with keyway)
Phase Resistance: 1.5Ω
Phase Inductance: 20mH
Rotor Inertia: 19600 g·cm²
Weight: 11kg
.jpg "Nema 42 110mm 3 Phase Stepper Motor 12/16/20Nm 1.2° keyway Shaft For Heavy-Duty CNC Milling Machine")
.jpg "Nema 42 110mm 3 Phase Stepper Motor 12/16/20Nm 1.2° keyway Shaft For Heavy-Duty CNC Milling Machine")
.jpg "Nema 42 110mm 3 Phase Stepper Motor 12/16/20Nm 1.2° keyway Shaft For Heavy-Duty CNC Milling Machine")
.jpg "Nema 42 110mm 3 Phase Stepper Motor 12/16/20Nm 1.2° keyway Shaft For Heavy-Duty CNC Milling Machine")
.jpg "Nema 42 110mm 3 Phase Stepper Motor 12/16/20Nm 1.2° keyway Shaft For Heavy-Duty CNC Milling Machine")
.jpg "Nema 42 110mm 3 Phase Stepper Motor 12/16/20Nm 1.2° keyway Shaft For Heavy-Duty CNC Milling Machine")
.jpg "Nema 42 110mm 3 Phase Stepper Motor 12/16/20Nm 1.2° keyway Shaft For Heavy-Duty CNC Milling Machine")

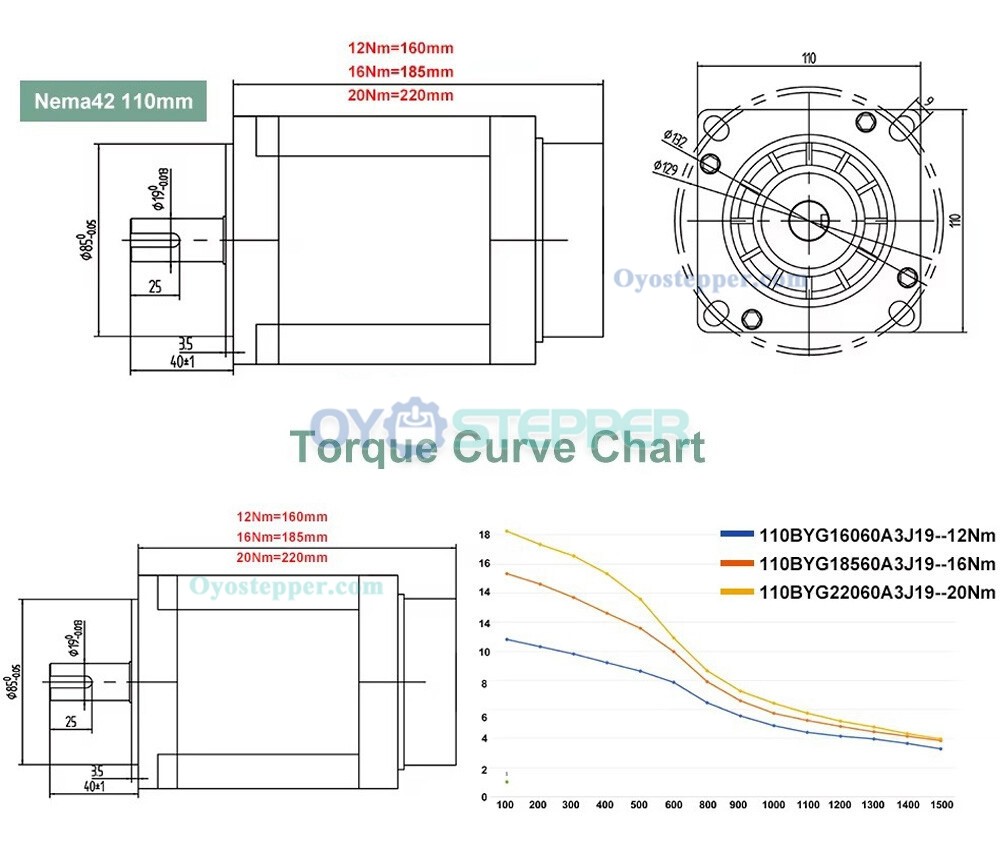

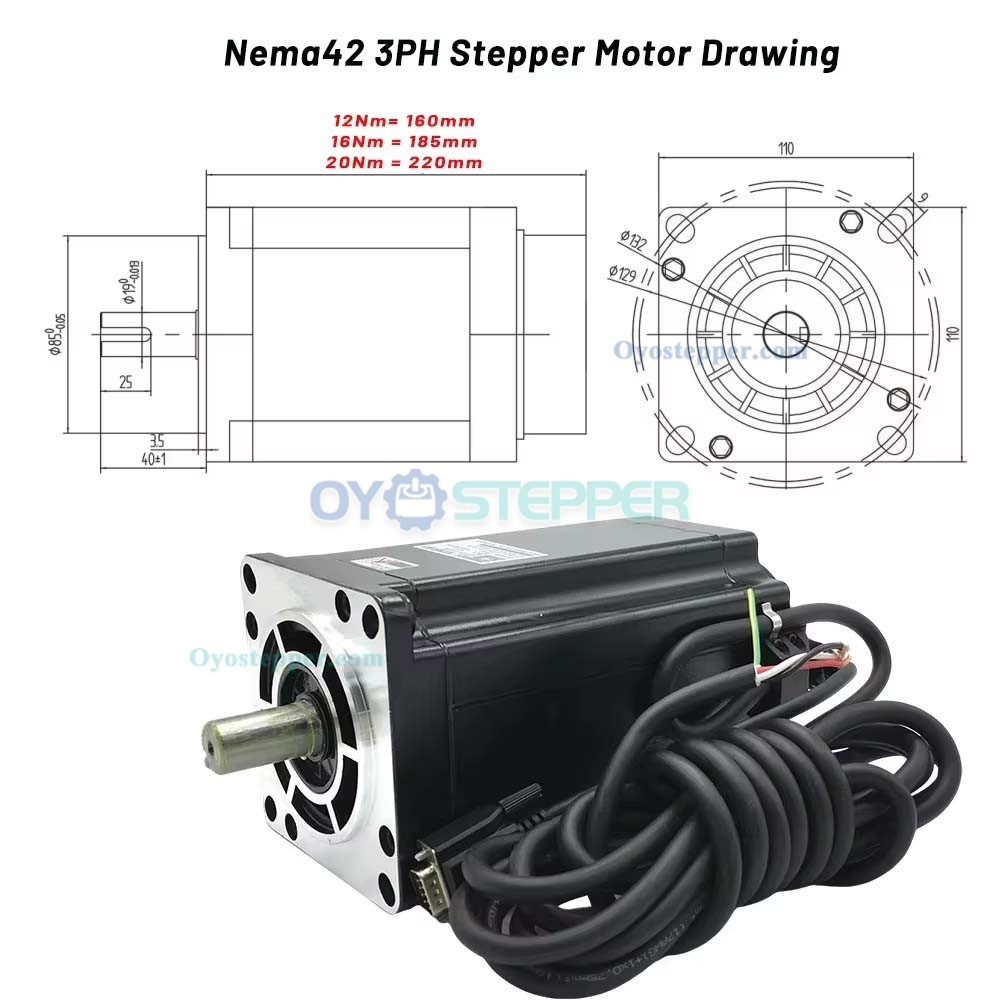

| Physical Specification | |
|---|---|
| Keyway Length | 25 |
| Body Length(mm) | 160 / 180 / 225 |
| Frame Size(mm) | 110 |
| No. of Lead | 3 |
| Shaft Diameter(mm) | 19mm |
| Shaft Length(mm) | 40 |
| Shaft Type | Keyway |
| Weight(g) | 1100 |
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Rated Current (A) | 6 |
| Step Angle(°) | 1.2 |
| No. of Phase | 3 |
| Open-loop/Closed-loop | Open-loop |
