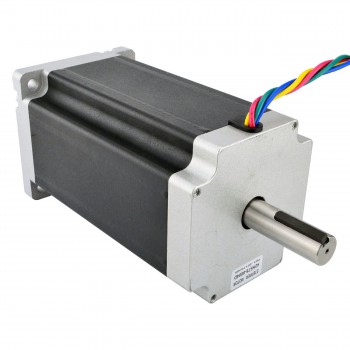

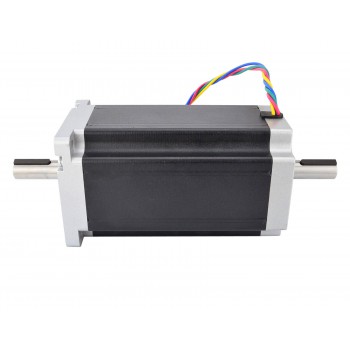

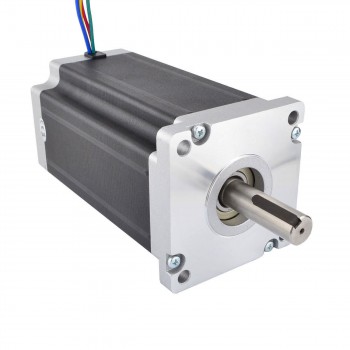

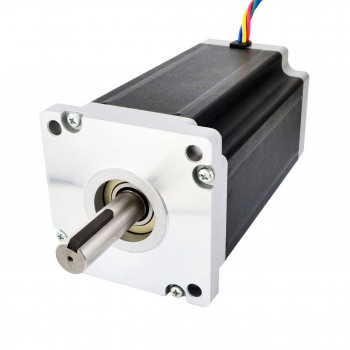

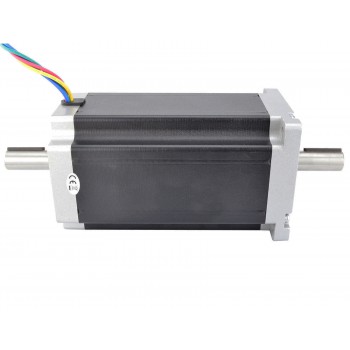

Dual Shaft Nema 42 CNC Stepper Motor 30Nm (4248oz.in) 8A 110x201mm 4 Wires
- Manuals and Documentation: Full Datasheet:
Our Price:$212.03
NEMA 42 stepper motor (110×110×201 mm), 4‑wire, 8 A phase current, 30 Nm holding torque, with rear shaft for encoder or handwheel mounting.
Electrical Specification
Manufacturer Part Number: 42HS79-8004D
Step Angle: 1.8 deg
Holding Torque: 30Nm(4248oz.in)
Rated Current/phase: 8.0A
Voltage: 5.36V
Phase Resistance: 0.67ohms
Inductance: 11mH ± 20%(1KHz)
Physical Specification
Frame Size: 110 x 110mm
Body Length: 201mm
Shaft Diameter: Φ19mm
Shaft Length: 55.37mm
Key Way Length: 35mm
Number of Leads: 4
Lead Length: 310mm
Weight: 12.5kg
Connection
| A+ | A- | B+ | B- |
| Black | Green | Red | Blue |
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 3000 |
| Holding Torque (oz.in) | 4248 |
| Inductance(mH) | 11 |
| Phase Resistance(ohm) | 0.67 |
| Rated Current (A) | 8 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 201 |
| Frame Size(mm) | 110x110 |
| Single Shaft/Dual Shaft | Dual Shaft |
| Shaft Diameter(mm) | 19 |
| Shaft Length(mm) | 55.37 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Weight(g) | 12000 |
| Shaft Type | Keyway |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
