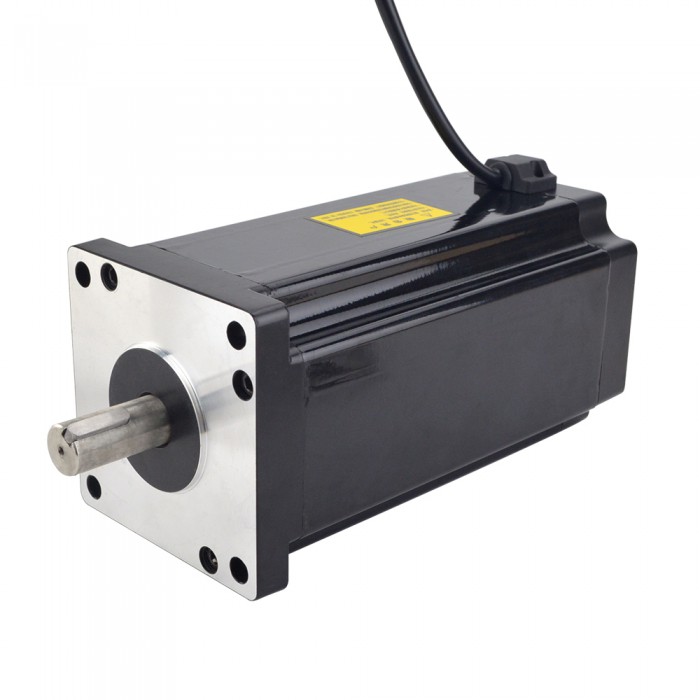

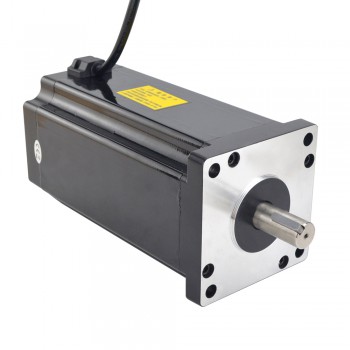

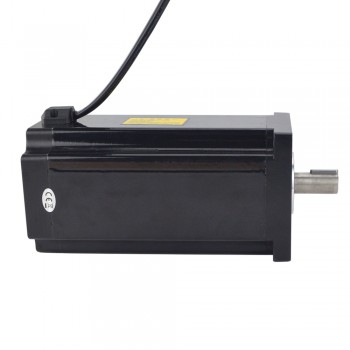

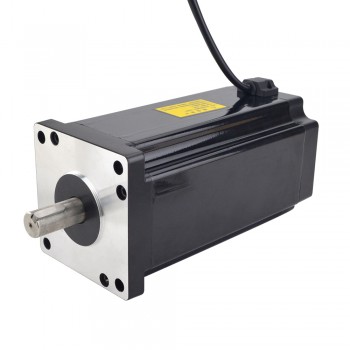

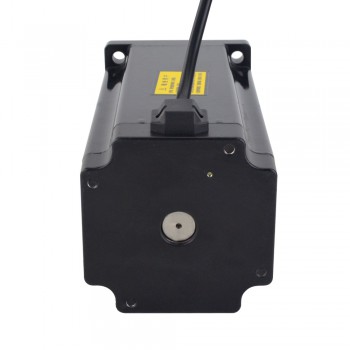

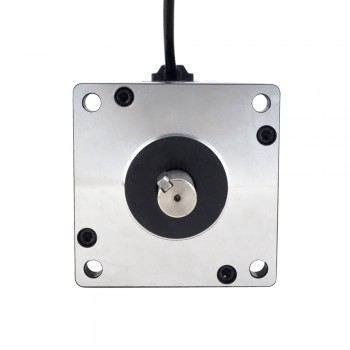

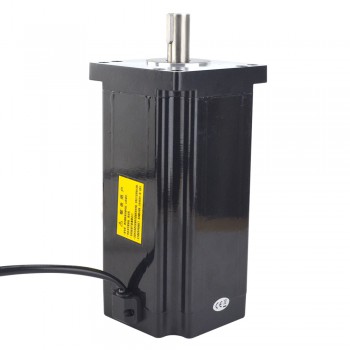

3 Phase Nema 42 Stepper Motor Bipolar 22 Nm(3116.08oz.in) 5.0A 110x110x221.5mm
Special Offer in June 2023:
- 5% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till June 10th, 2023
- Note:No coupon code needed, please place order directly!
Our Price:$180.35
Electrical Specification
- Manufacturer Part Number: 42HT87-5003S
- Number of Phase: 3
- Step Angle: 1.2 deg
- Holding Torque: 22 Nm(3116.08oz.in)
- Rated Current/phase: 5 A
- Phase Resistance: 2.4 ohms± 10%
- Inductance: 24.4 mH ± 20%(1KHz)
Physical Specification
- Frame Size: 110 x 110 mm
- Body Length: 221.5 mm
- Shaft Diameter: Φ19 mm
- Shaft Length: 42 mm
- keyway Shaft Length: 25 mm
- Number of Leads: 3
- Lead Length: 300 mm
- Weight: 13.1 kg
Connection
|
U
|
V
|
W
|
|
RED
|
YEL
|
GRN
|
Resources
- Full Datasheet: 42HT87-5003S.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Holding Torque (Ncm) | 2200 |
| Holding Torque (oz.in) | 3116.08 |
| Inductance(mH) | 24.4 |
| Phase Resistance(ohm) | 2.4 |
| Rated Current (A) | 5 |
| Step Angle(°) | 1.2 |
| No. of Phase | 3 |
| Physical Specification | |
| Body Length(mm) | 221.5 |
| Frame Size(mm) | 110 x 110 |
| Lead Length(mm) | 300 |
| No. of Lead | 3 |
| Shaft Diameter(mm) | 19 |
| Shaft Length(mm) | 42 |
| Weight(g) | 13100 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
