K11-65mm CNC Router 4th Axis Rotary Table with Stepper Motor, 3-Jaw Chuck & Tailstock

K11-65mm CNC Router 4th Axis Rotary Table with Stepper Motor, 3-Jaw Chuck & Tailstock

A 4th axis rotary assembly for CNC routers, consisting of a rotary table with integrated 3-jaw chuck, stepper motor, and matching tailstock. Designed for indexing and rotary machining operations on cylindrical workpieces.

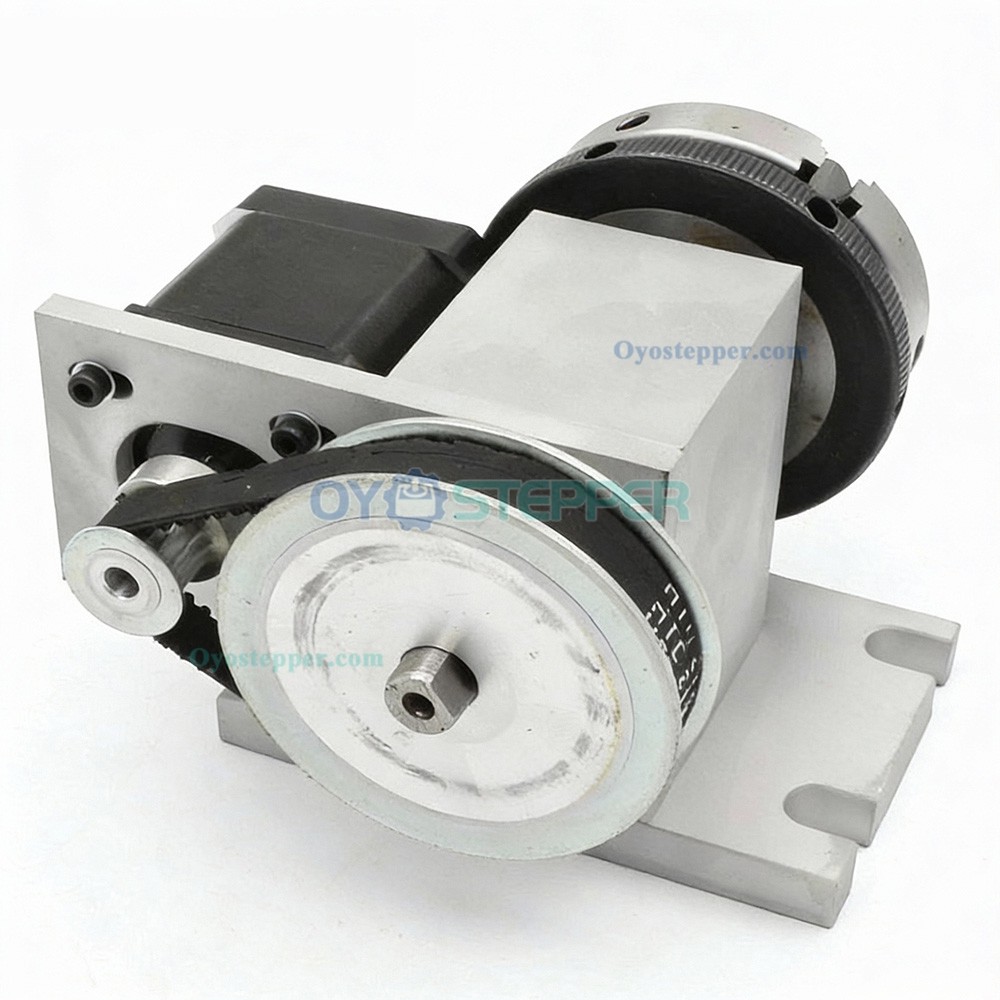

Rotary Table (4th Axis) Specification:

Model: K11-65mm

Reduction ratio: 4:1

Step angle: 0.3°/step

Output shaft diameter: 20mm

Center height: 54mm

Total height: 85mm

Includes NEMA 17 stepper motor


3-Jaw Chuck Specification:

Model: K01-63 / Diameter: 63mm

Internal clamping range: 1–50mm

External clamping range: 16–50mm

Centering precision: 0.05mm



Stepper Motor Specification:

Type: 2-phase, NEMA 17

Holding torque: 45 N·cm (64 oz·in)

Rated current: 1.7A

Step angle: 1.8°

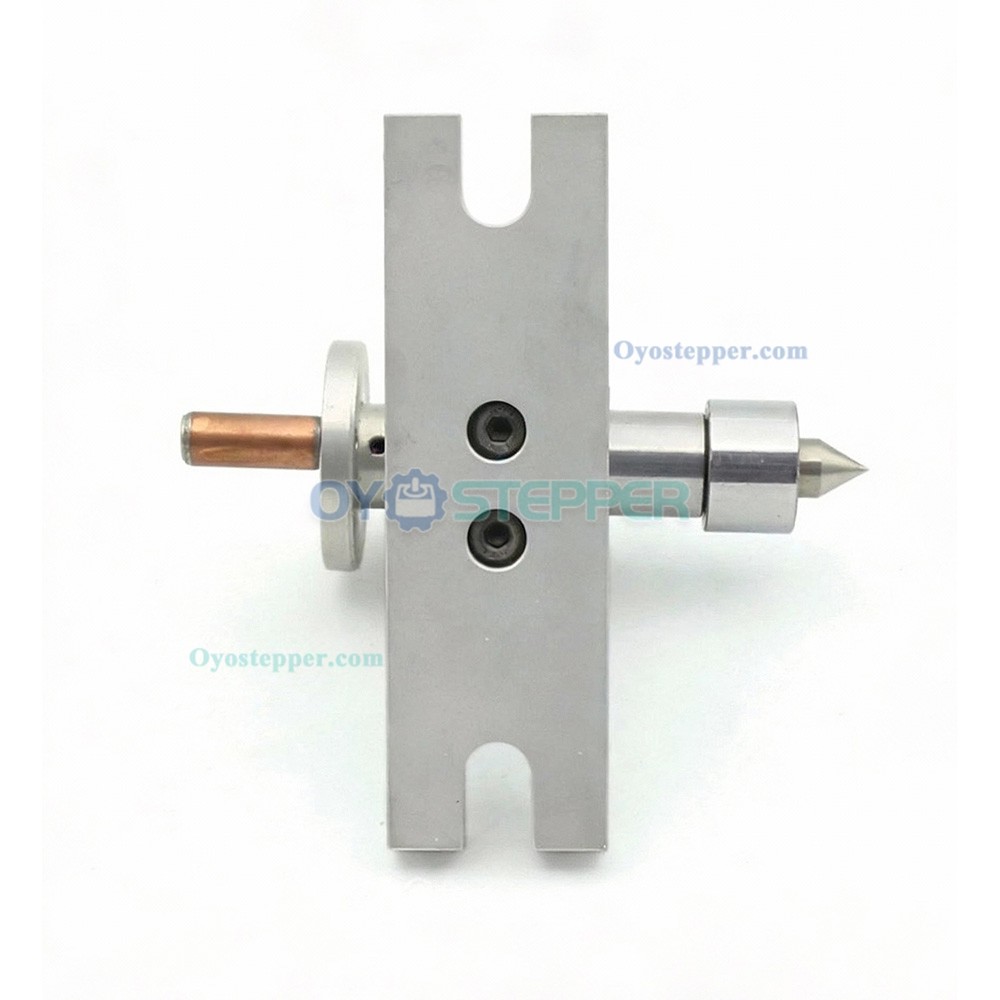

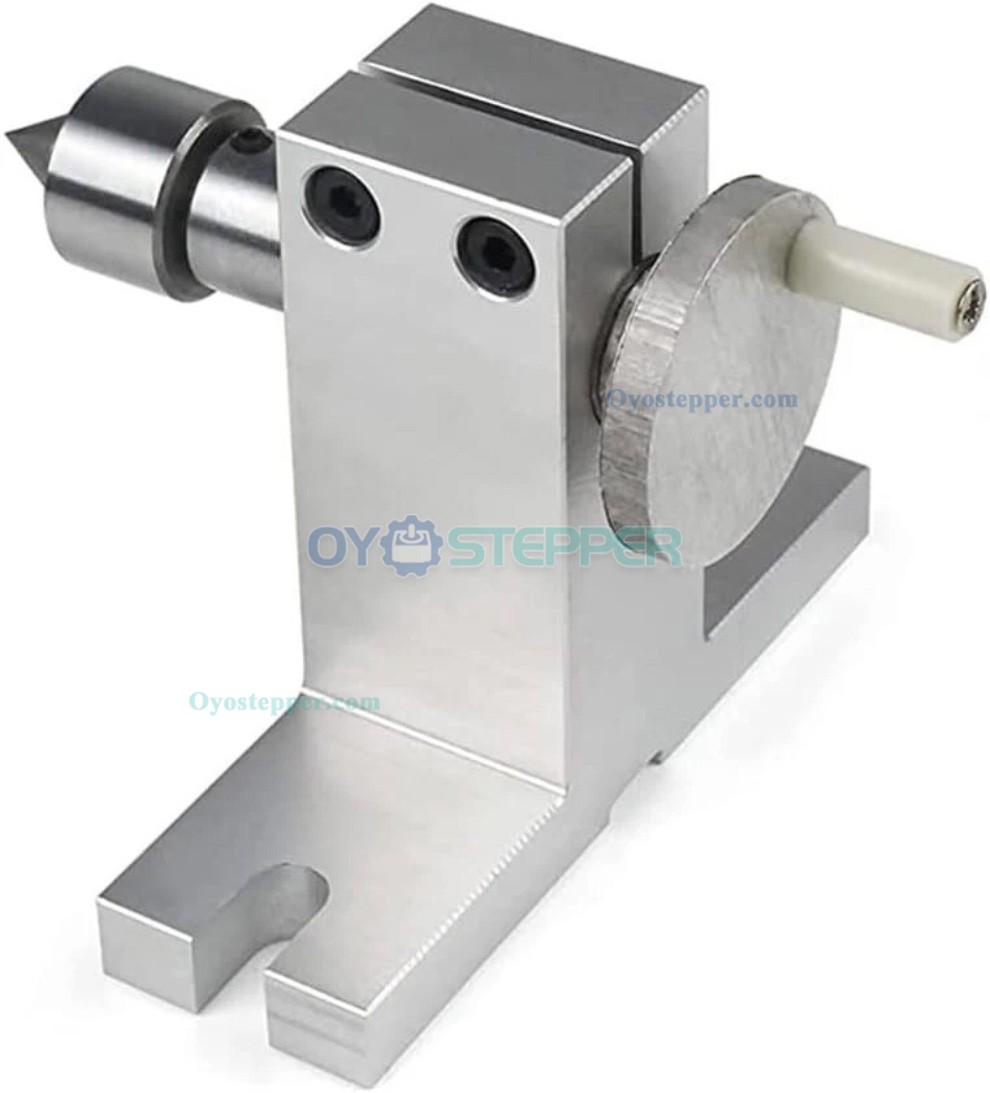

Tailstock Specification:

Center height: 54mm

Live center type

Telescopic stroke: 30mm

Includes axial locking key

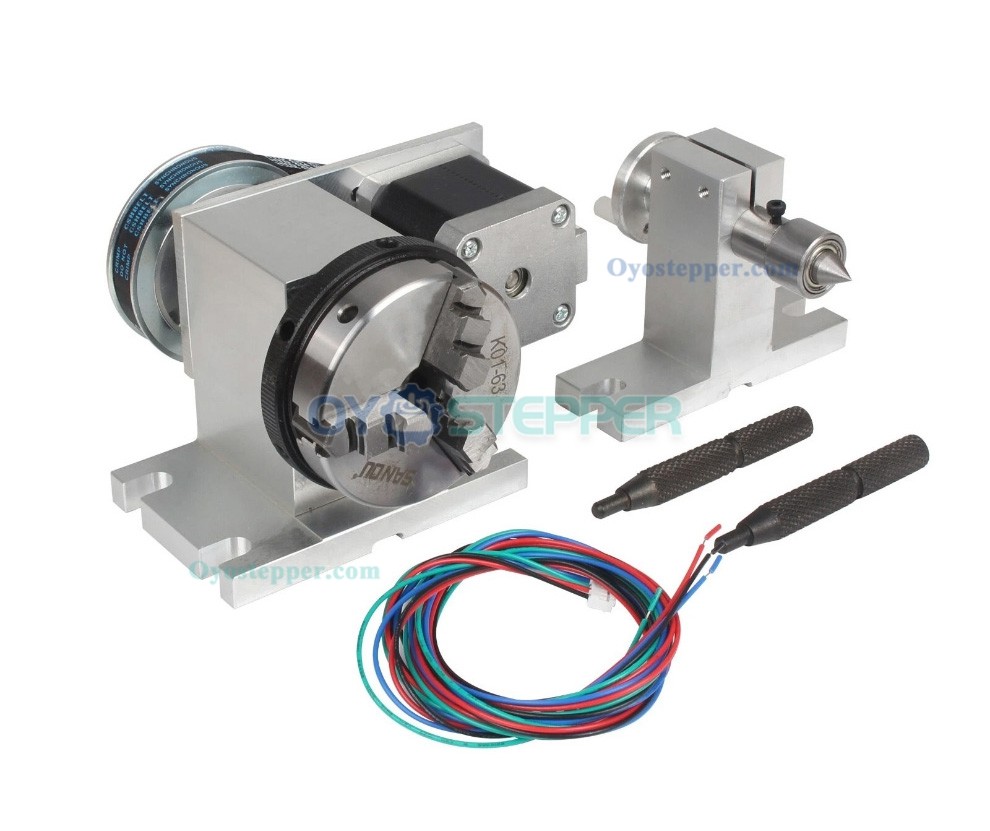

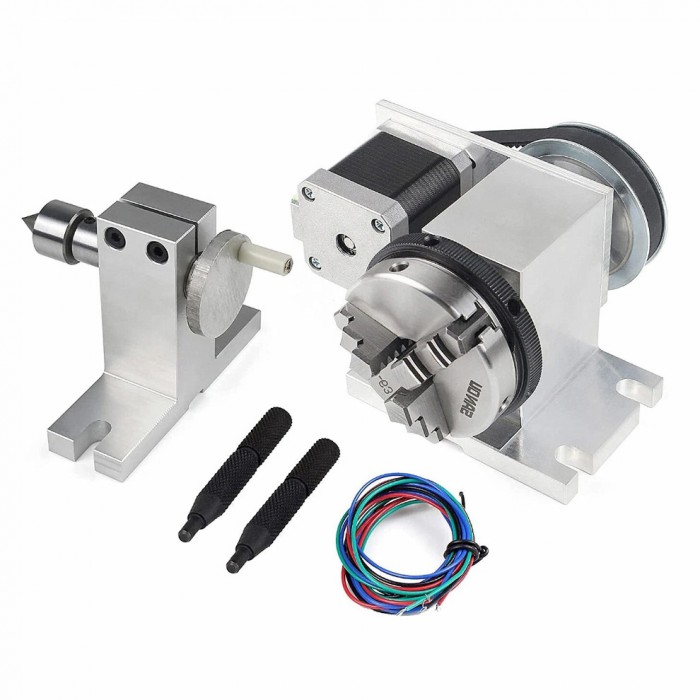

Package Includes

1 × Rotary table assembly (with mounted 3-jaw chuck & motor);

1 × Tailstock

2 × Wrenches

1 × Cable set
