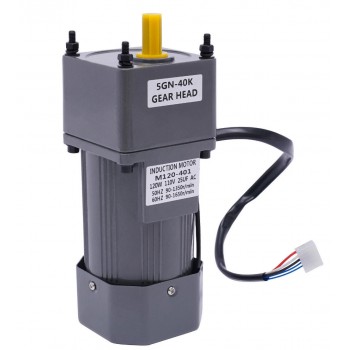

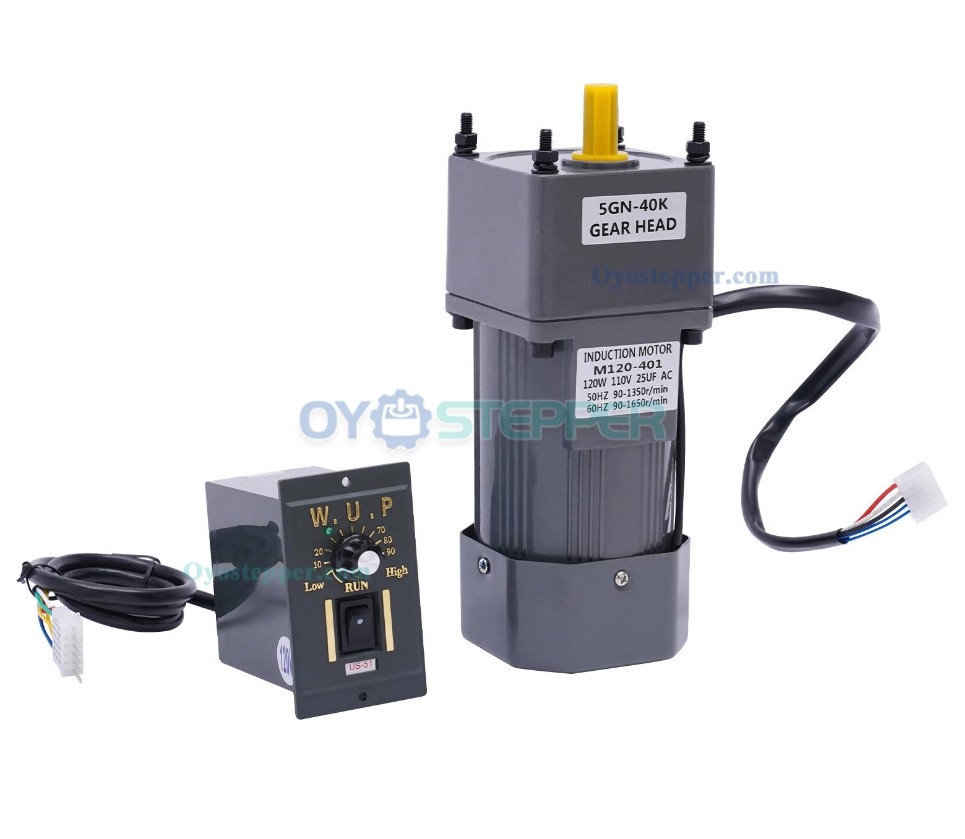

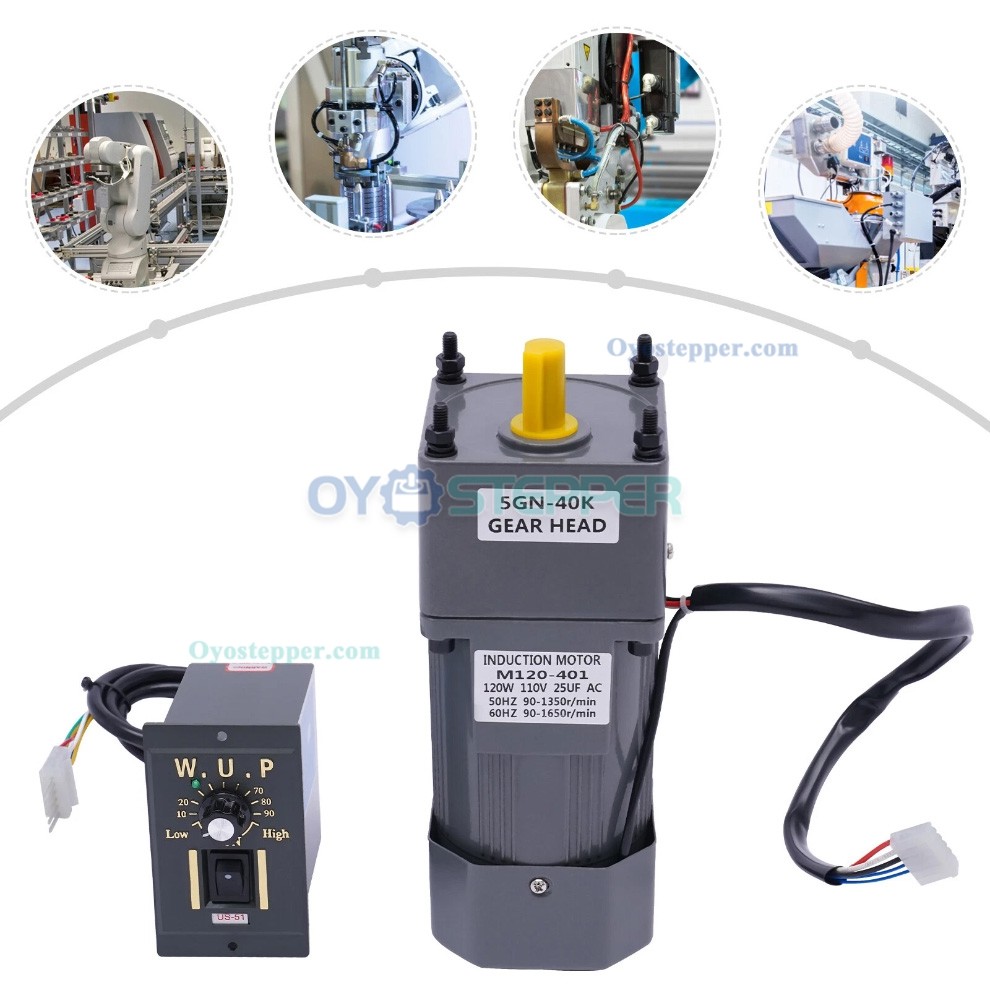

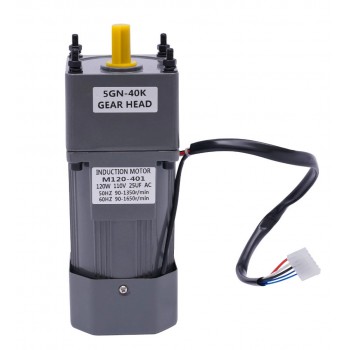

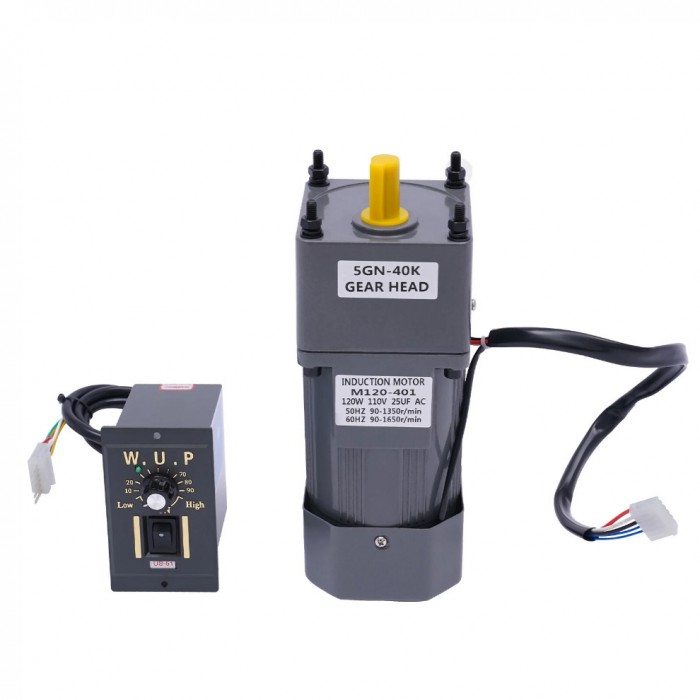

120W AC Induction Gear Motor 40:1 21Nm Single-phase with with Variable Speed Control

120W AC Induction Gear Motor 40:1 21 Nm Single-phase with with Variable Speed Control

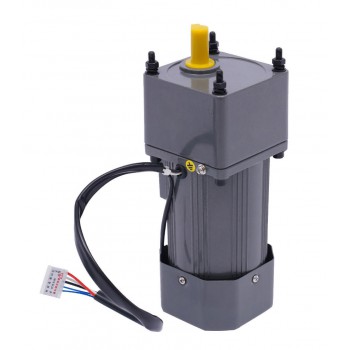

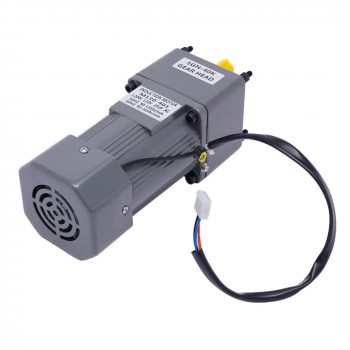

This variable-speed gear motor is designed for industrial applications requiring adjustable rotational control. This motor may be integrated into equipment for industries such as packaging, printing, textile, food processing, and material handling. It is also used in automated systems including conveyor belts, gate controls, and instrumentation drives.


Specifications:
Model: M120-401
Power Phase: Single-phase
Housing Material: Cast Aluminum
Rated Voltage: AC 110V/220V
Rated Power: 120W
Capacitor: 25 µF
Cooling Fan Motor Power: >60W
Rated Torque: 21 N·m
Reduction Ratio:40:1
Speed (at rated voltage):
50Hz: 90-1350 r/min (Output Speed: ~2.25-33.75 r/min)
60Hz: 90-1650 r/min (Output Speed: ~2.25-41.25 r/min)
Operational Noise Level: Approximately 50-60 dB

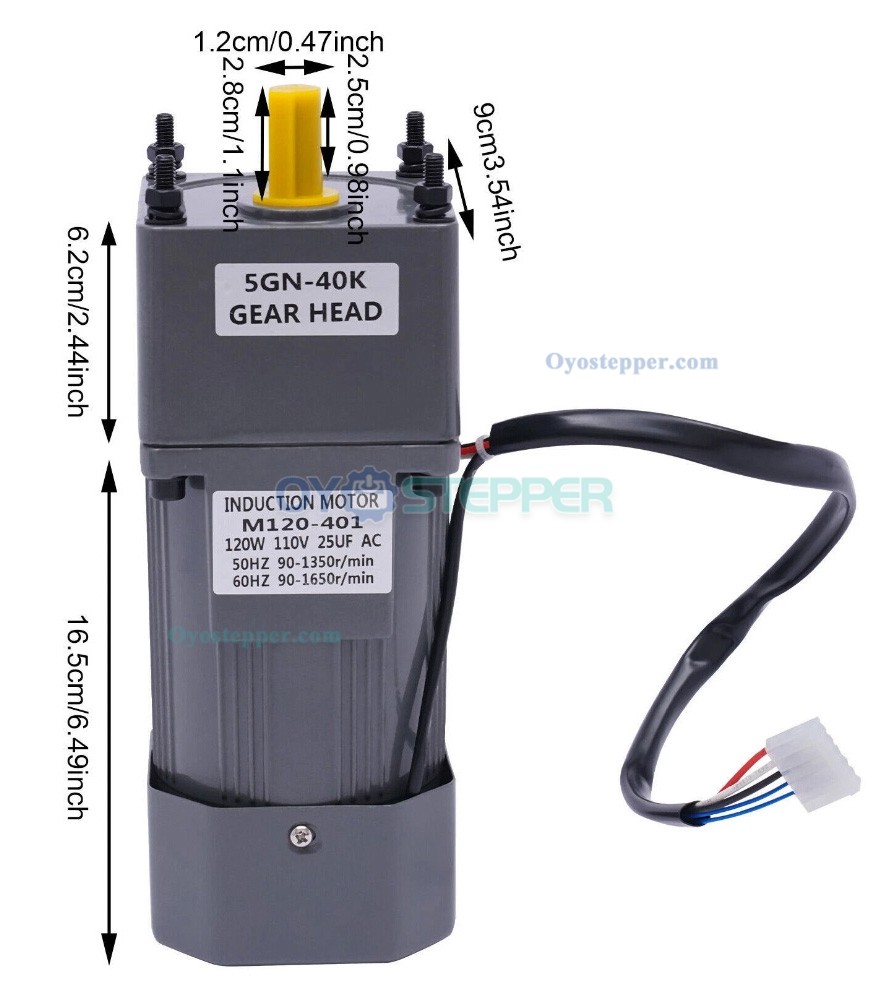

Output Shaft:
Diameter: 12 mm
Length: 28 mm
Keyway: 4 mm width, 2.5 mm depth
Hole Spacing Distance: 104 mm
Axis Eccentricity: 18 mm
Disc Diameter: 34 mm
Through-hole Diameter: ∅8 mm
Gear Motor Height: 16.5 cm
Reducer Size: 9 × 9 × 6.2 cm

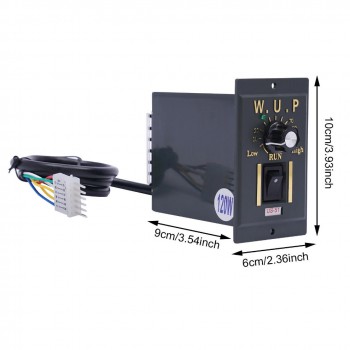

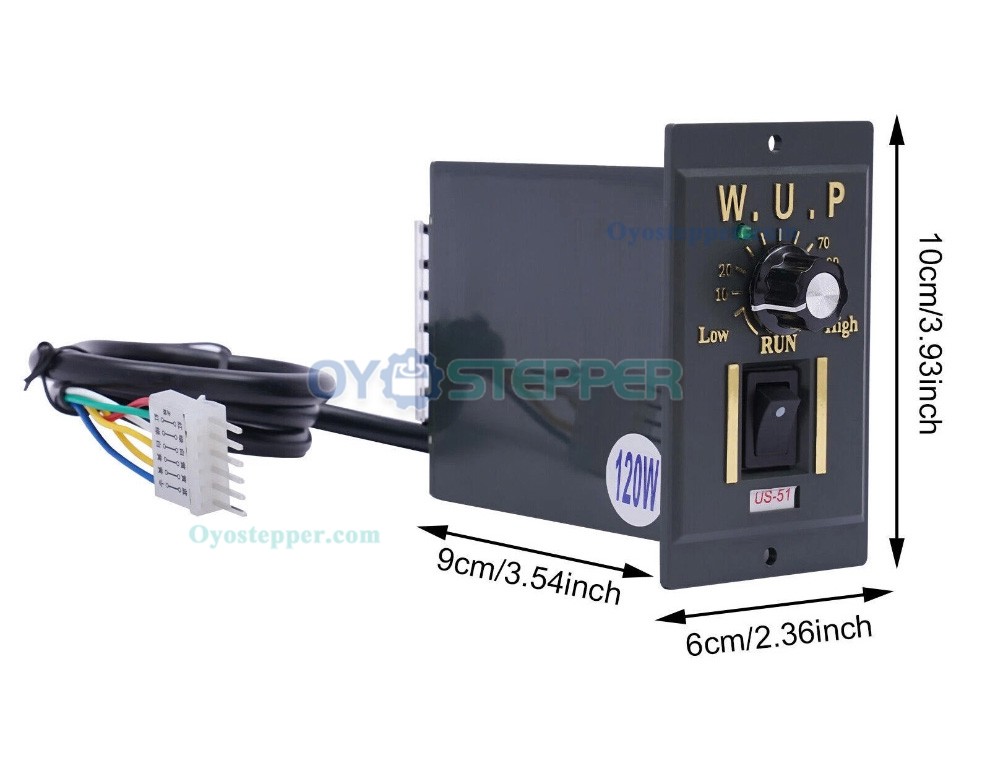

Speed Controller Size: 9 × 6 × 10 cm
Dimensions: 28.5 × 24.1 × 12.5 cm
Net Weight: 4.96 kg
Gross Weight: 5.3 kg

Package Contents
1 x Gear Motor

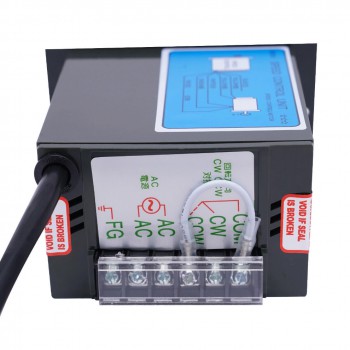

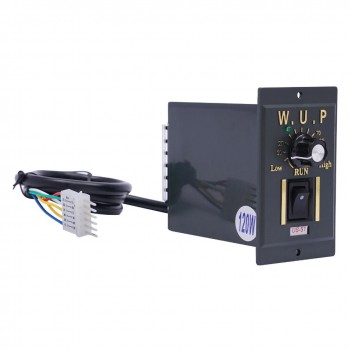

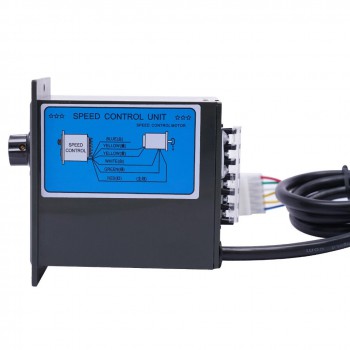

1 x Speed Controller
1 x English Manual
