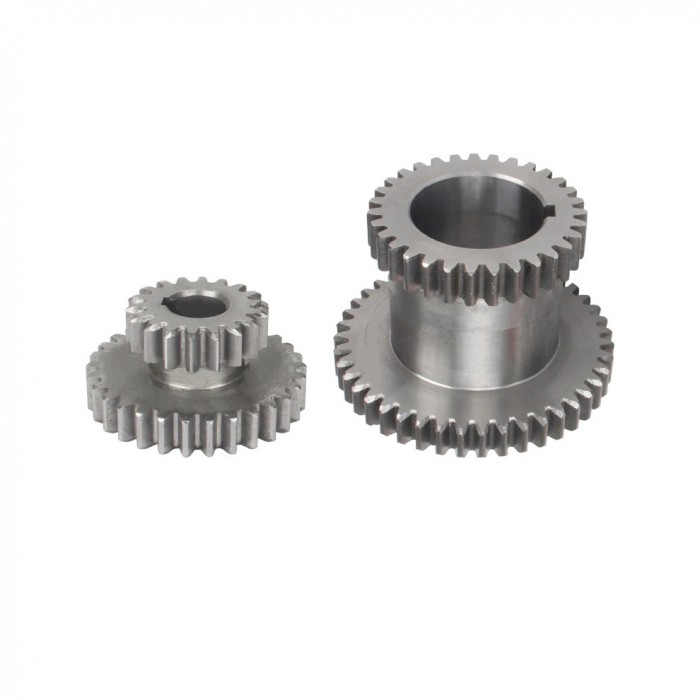

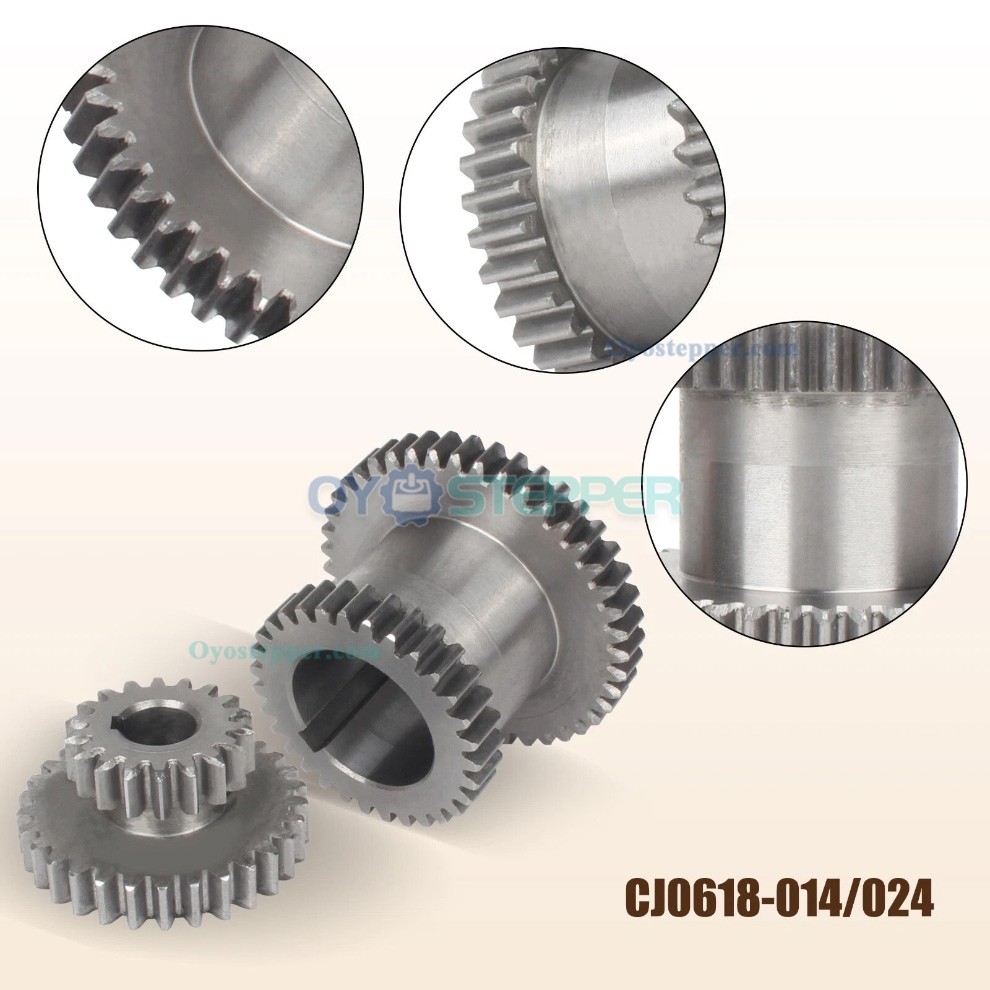

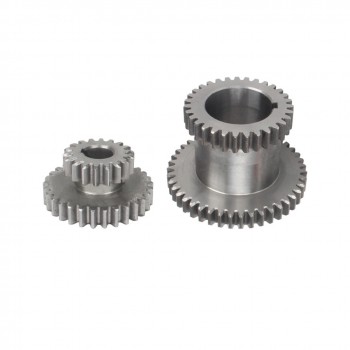

CJ0618 Sliding Fixed Double Gear Set High/Low Transmission Gear Kit for Mini-Lathes

CJ0618 Sliding Fixed Double Gear Set High/Low Transmission Gear Kit for Mini-Lathes

Description:

Construction Material: Steel

Function: Designed as a replacement transmission component for compatible mini-lathes.


Specifications

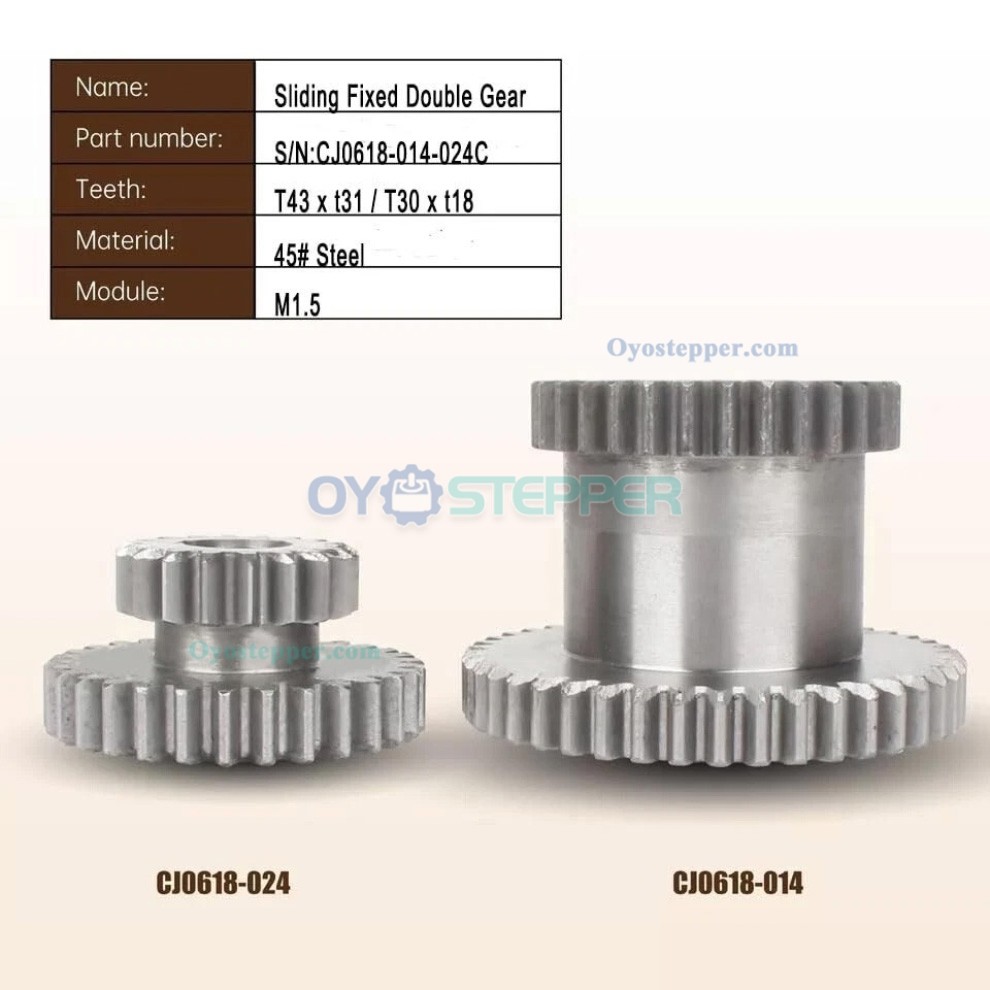

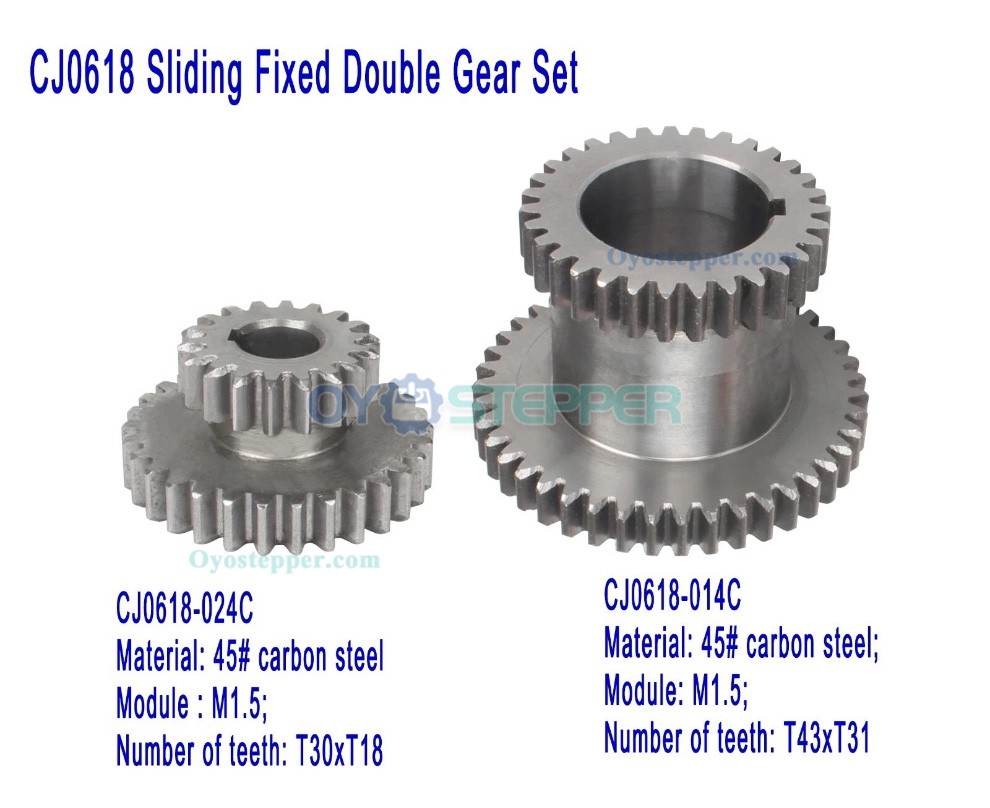

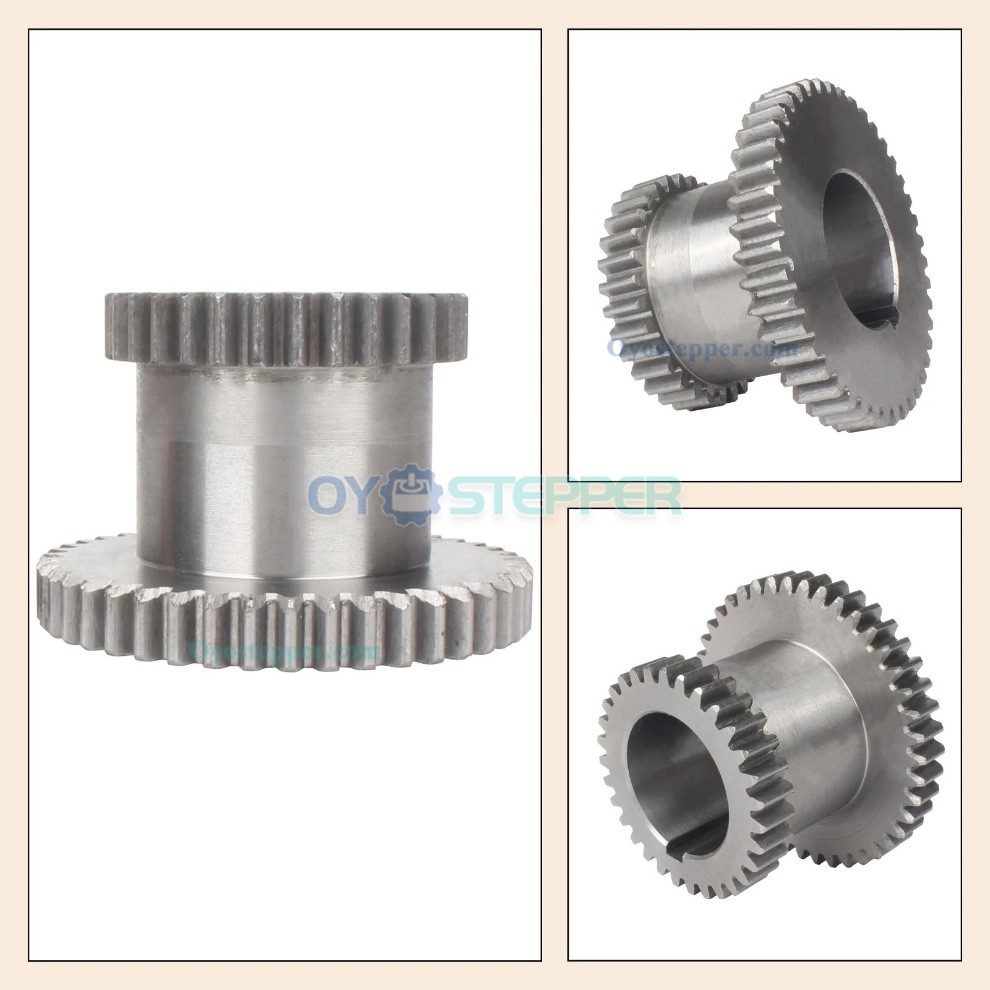

Gear 1 (S/N: CJ0618-014C):

Material: 45# Carbon Steel

Module: M1.5

Number of Teeth: T43 x T31 (Compound Gear)

Tooth Thickness: 0.8 mm

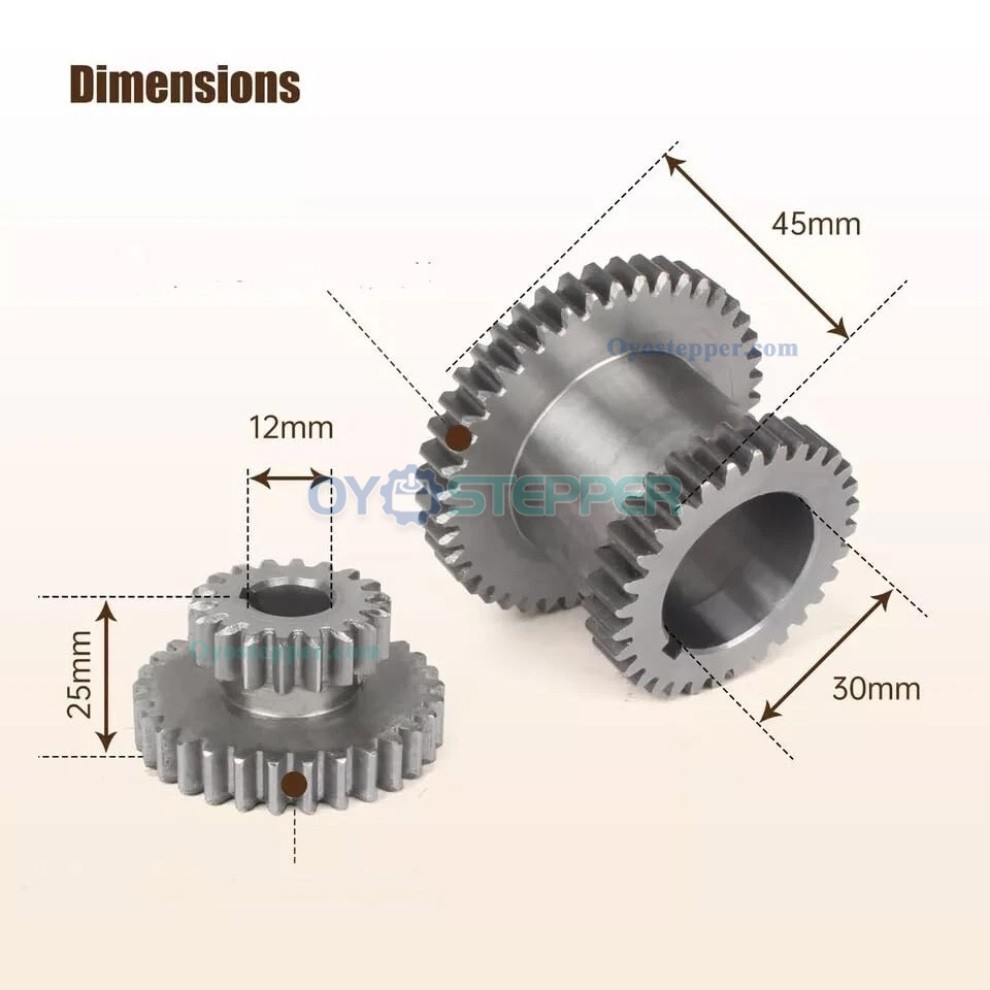

Height: 44.5 mm

Hub Square Size: 5 mm

Body Outer Diameter: 40 mm

Bore Inner Diameter: 30 mm

Gear Outer Diameter Range: 49.5 - 67 mm



Gear 2 (S/N: CJ0618-024C):

Material: 45# Carbon Steel

Module: M1.5

Number of Teeth: T30 x T18 (Compound Gear)

Tooth Thickness: 0.8 mm

Height: 24 mm

Hub Square Size: 4 mm

Body Outer Diameter: 20.5 mm

Bore Inner Diameter: 12 mm

Gear Outer Diameter Range: 31 - 49 mm
