OUKEDA OK57ZLYS131-615A Brushed DC Motor 60V 40W 0.25NM 1500RPM 57mm
Electrical Specifications:
Manufacturer Part Number: OK57ZLYS131-615A
Motor Type: DC Motor
Rated Voltage: 60VDC
Rated Speed: 1500 RPM
No-Load Speed: 1900 RPM
Rated Current: 1.0A
No-Load Current: 0.15A
Rated Torque: 0.25 N·m
Rated Power: 40W
Torque Constant: 0.294 N·m/A
Resistance: 14.3 Ω
Rotation Direction: Clockwise
Insulation Class: B

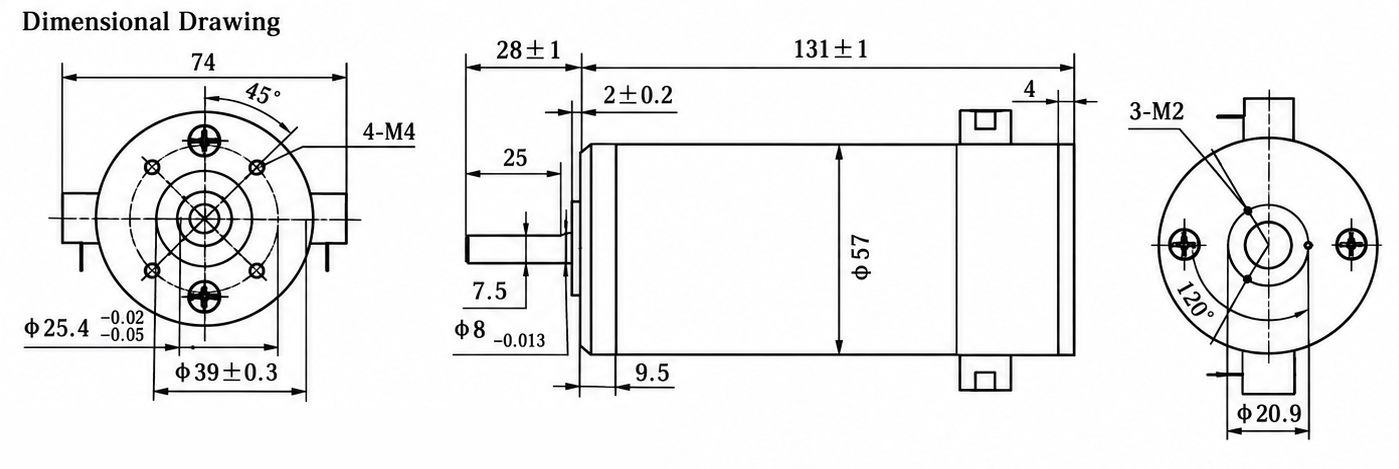

Physical Specifications:
Frame Size: 57mm
Body Length: 131 mm
Motor Flange Diameter: 74 mm
Shaft Diameter: 8 mm
Shaft length:28mm
D-cut Length: 25 mm
Shaft Collar Diameter: 25.4 mm
Mounting Holes: 4 × M4
Mounting Hole Pitch Circle Diameter: 39 mm
Rear Mounting Holes: 3 × M2
Rear Mounting Hole Layout: 120°
Weight: Approx. 1.35 kg
Ambient Humidity: 15%–95%
