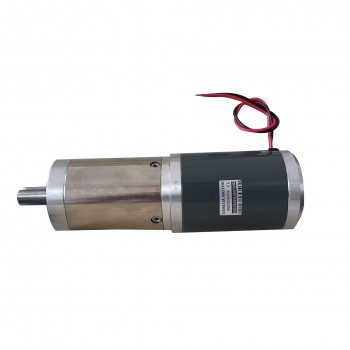

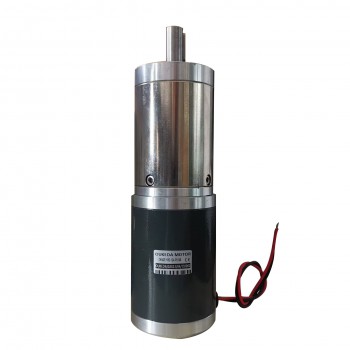

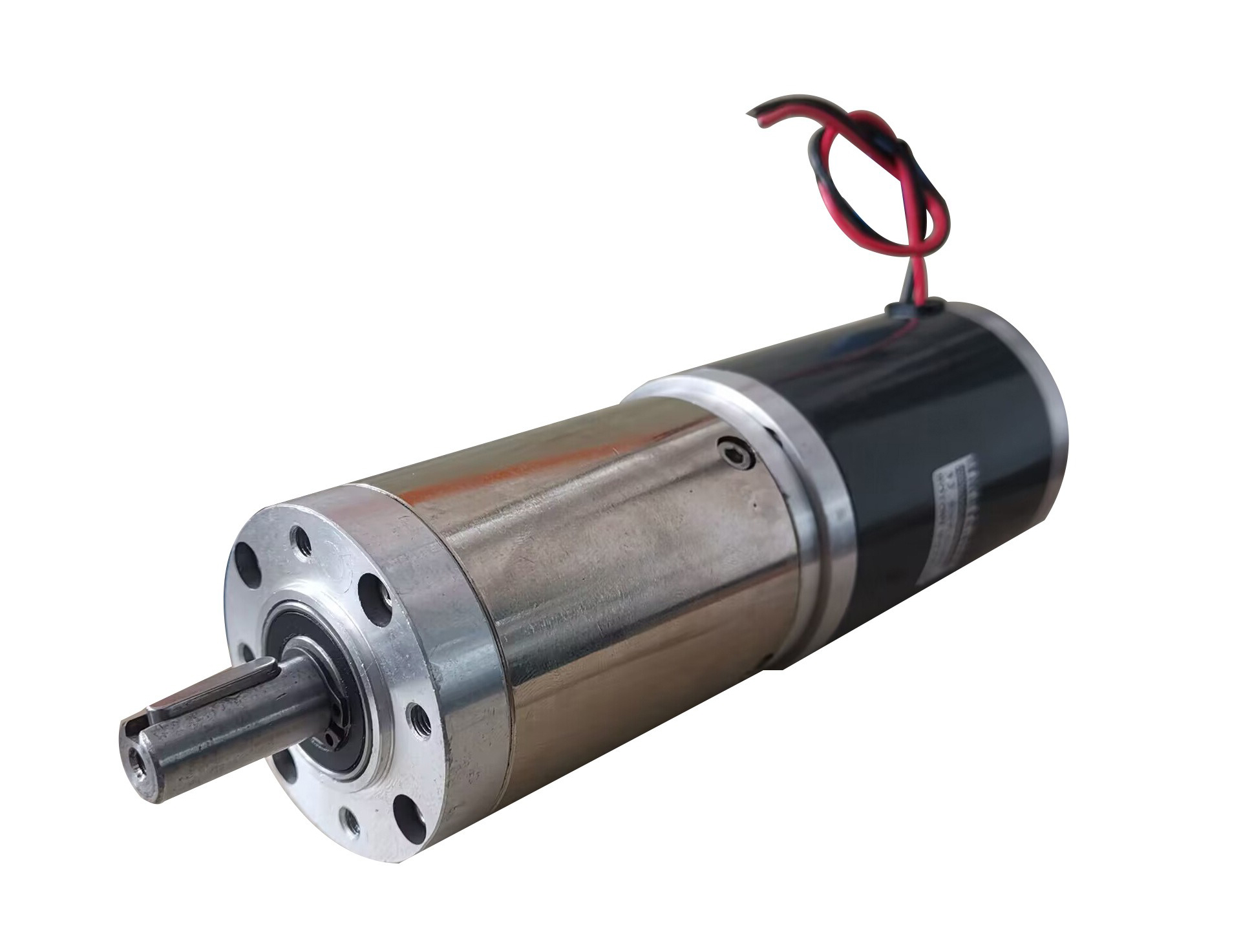

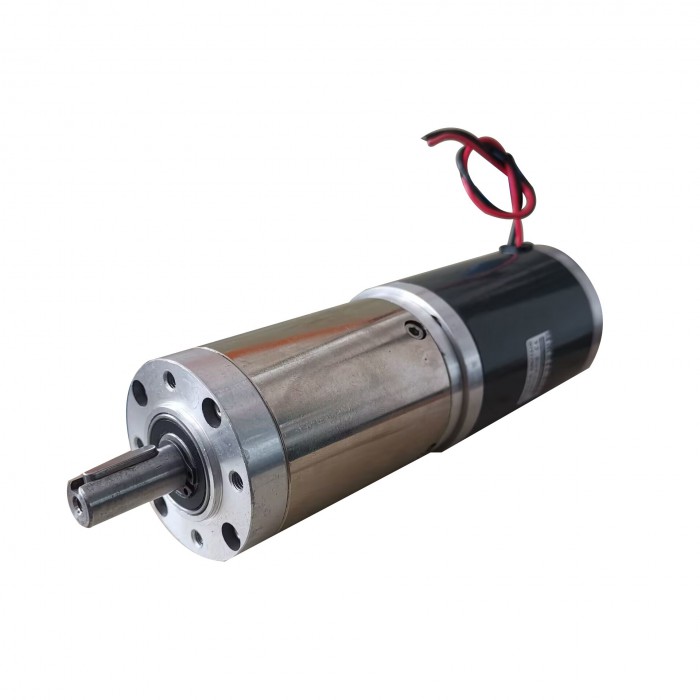

OUKEDA Brushed DC Motor with Gearbox 168:1 4.3Ncm 12V 15W 3200RPM
Electrical Specifications
Manufacturer Part Number: OK60ZLYS92-12A-PG168
Motor Type: DC Motor
Rated Voltage: 12VDC
Rated Speed: 3200RPM
No-Load Speed: 4000 RPM
Rated Current: 2.258A
No-Load Current: 0.547A
Rated Torque:4.3Ncm (440 gf·cm)
Rated Power: 14.4W
Torque Constant: 0.294 N·m/A
Resistance:14.3Ω
Rotor Inertia: 0.16 kg·cm²
Insulation Class:B
Ambient Humidity: 15%–95%

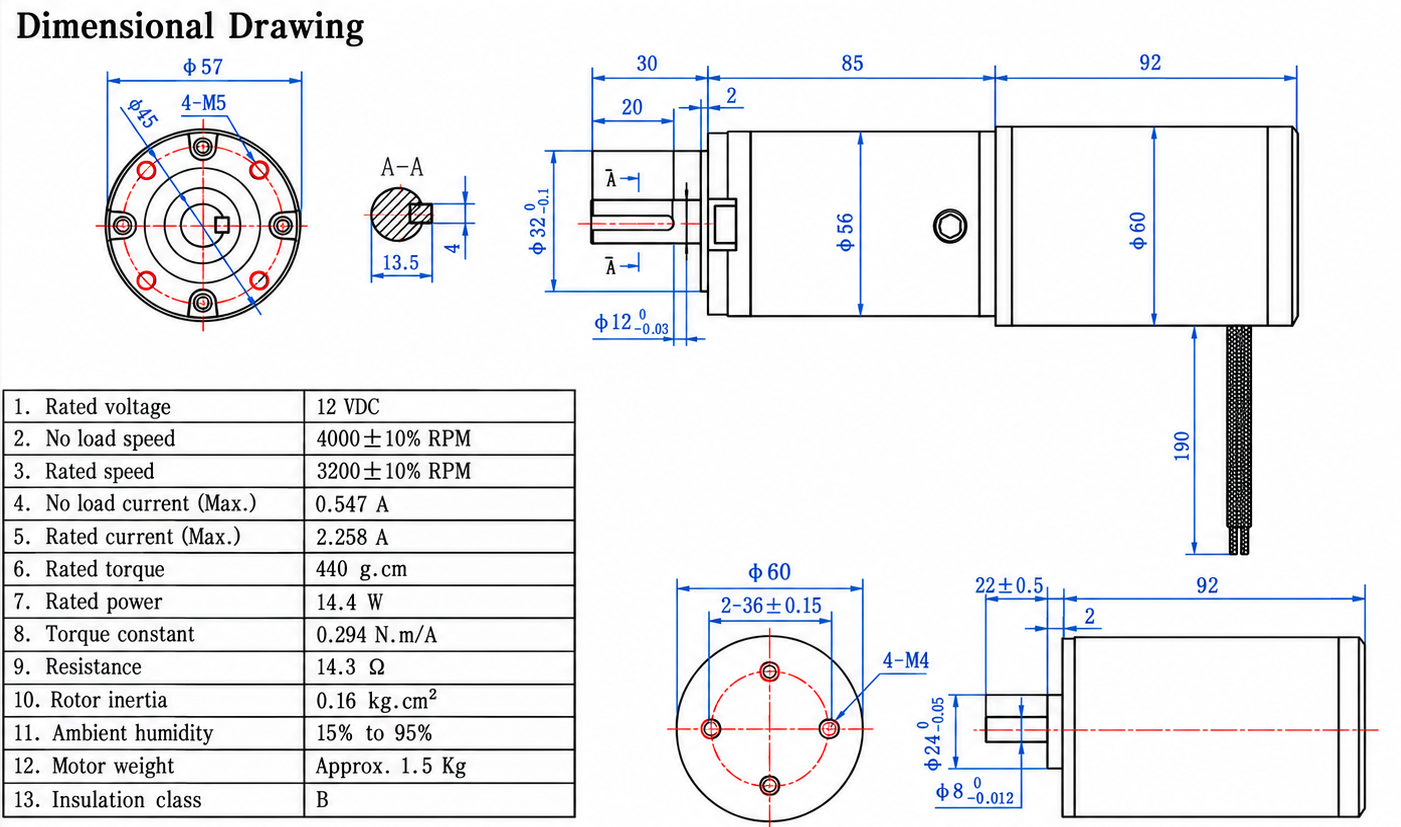

Physical Specifications:
Frame Size: 60mm
Motor+ Gearbox Length:177mm
Shaft Diameter:12mm
Shaft Length:30mm
Keyway Length:20mm
Lead Wires: 2
Lead Wire Length: 190 mm
Weight: Approx. 1.5 kg
