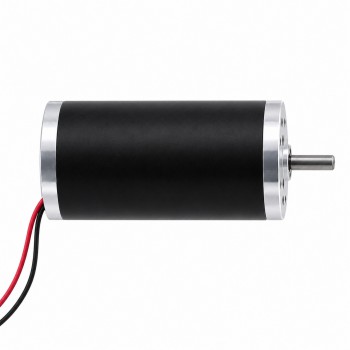

OUKEDA OK63ZYT125-230A Brushed DC Motor 125W 24V 3000RPM 40Ncm 63mm

NO.:OK63ZYT125-230A
Post a review

Manuals and Documentation:
OK63ZYT125-230A User Manual.pdf

OK63ZYT125-230A Datasheet.pdf

Halloween Special Offer 2026:

All Treats No Tricks
6% OFF on Total Order Amount!
Enjoy Discount at Checkout!
Valid Till November 4th, 2026
Note:No coupon code needed, please place order directly!

Our Price:$45.99

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
5	$43.69	5%
10	$43.23	6%
50	$42.77	7%
100	$42.31	8%

Add To My Favorites

Description Specification Custom Options Review

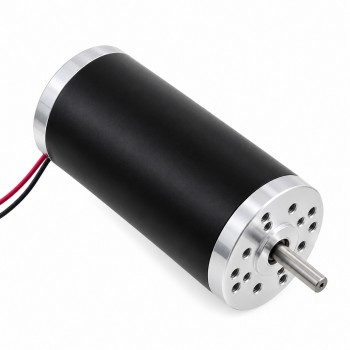

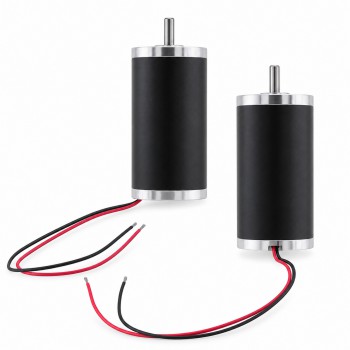

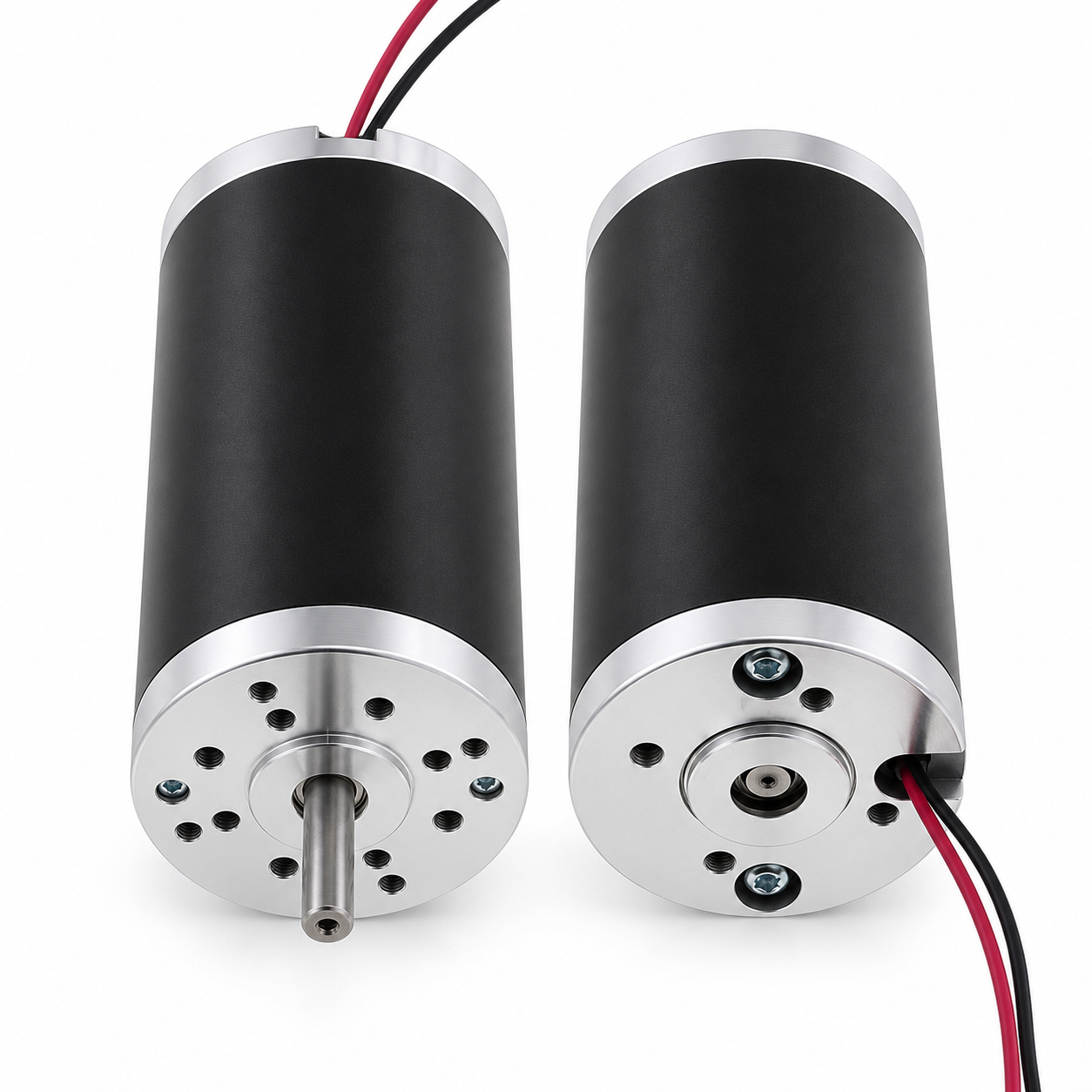

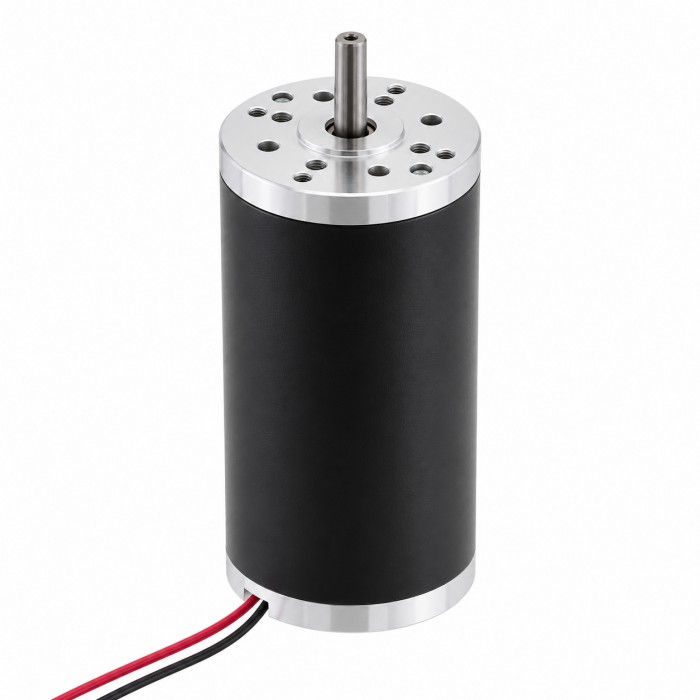

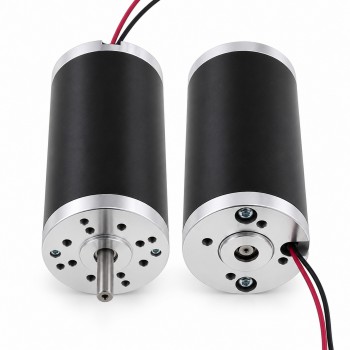

OK63ZYT125-230A Brushed DC Motor 125W 24V 3000RPM 40Ncm 63mm

Electrical Specification:
Manufacturer Part Number: OK63ZYT125-230A
Motor Type: DC Motor
Rated Current/phase: 7.5A
Rated Voltage: 24 VDC
Rated Speed: 3000 RPM
No-Load Speed: 3500 RPM
Rated Torque: 40Ncm
Rated Power: 125W
No-Load Current: 0.45A

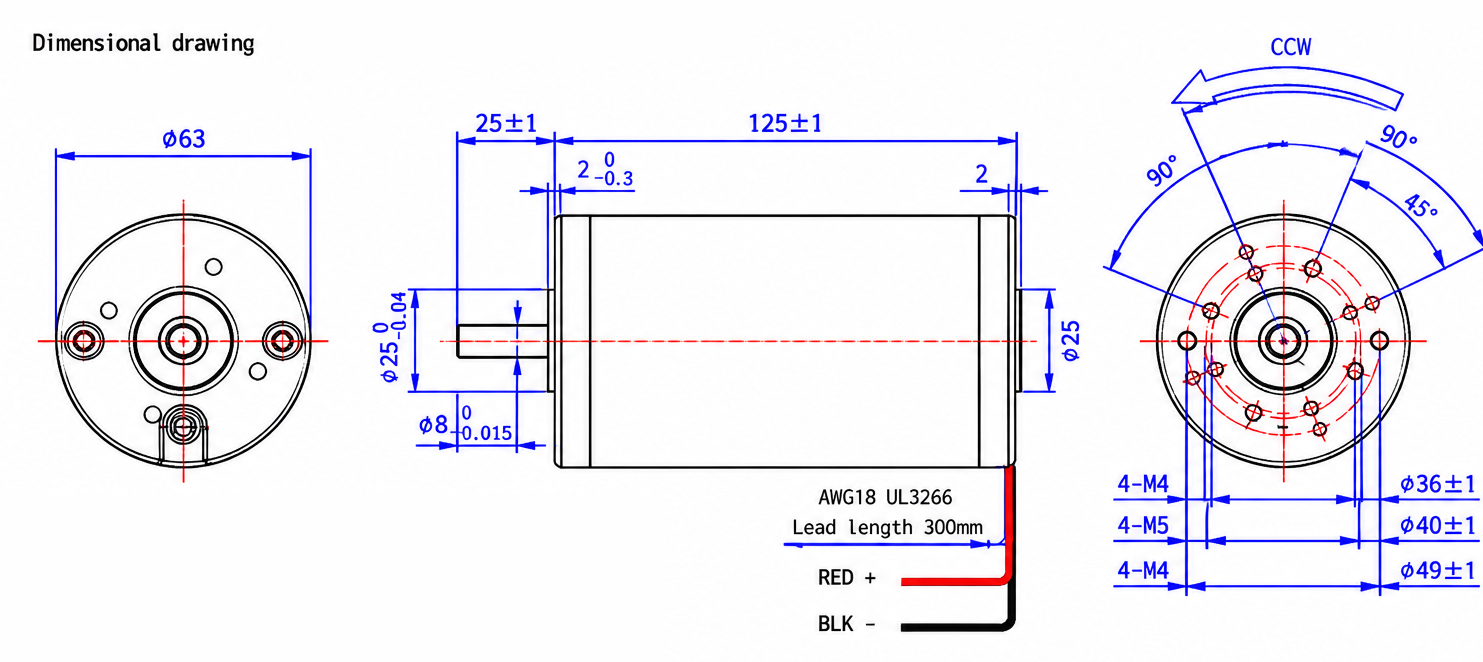

Physical Specification
Frame Size:63mm
Body Length: 125 mm
Shaft Diameter: 8mm
Shaft Length: 25mm
Number of Leads: 2
Lead Length: 300 mm
Weight: Approx.1.3kg
Insulation Class: B
Operating Temperature: -10°C to +50°C;
