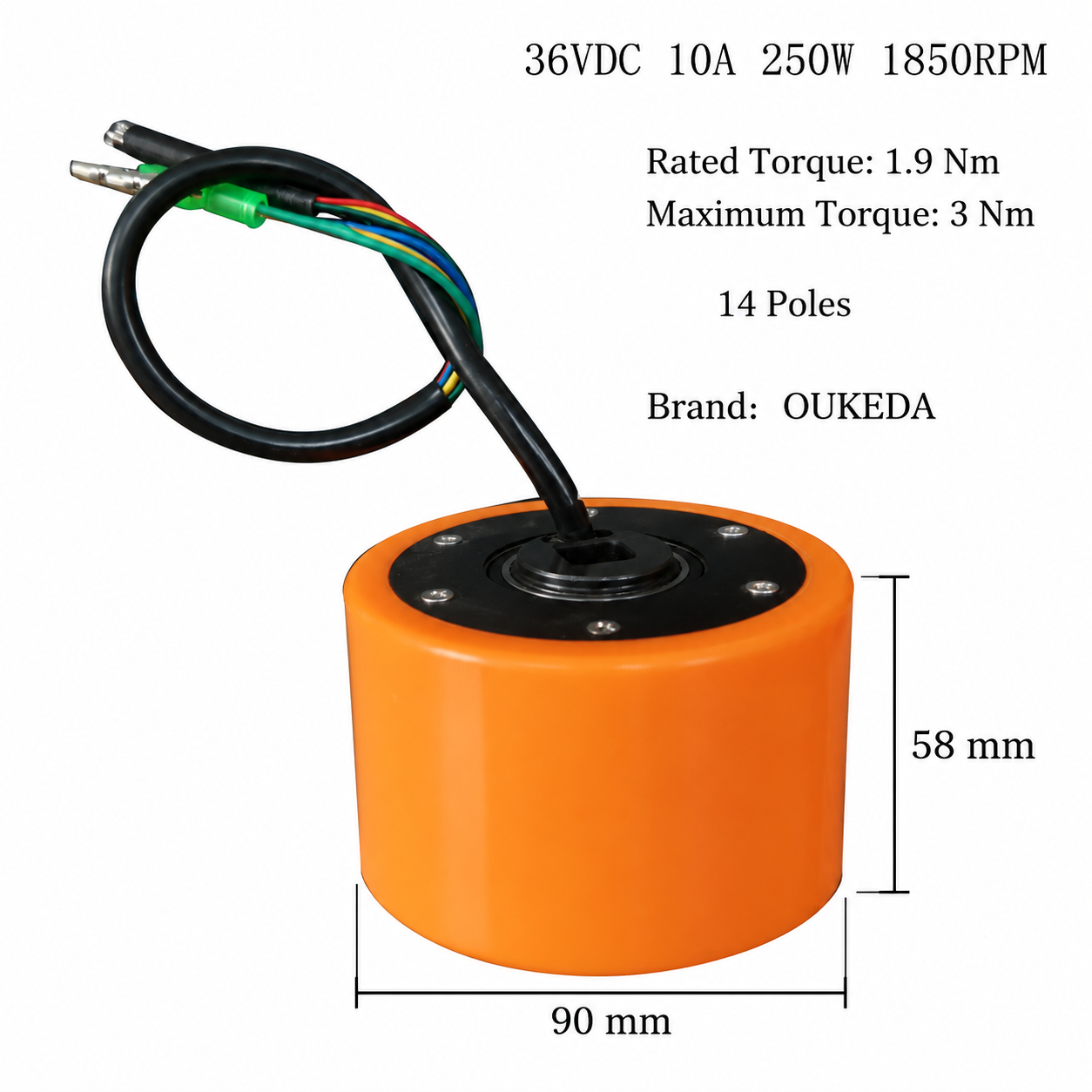

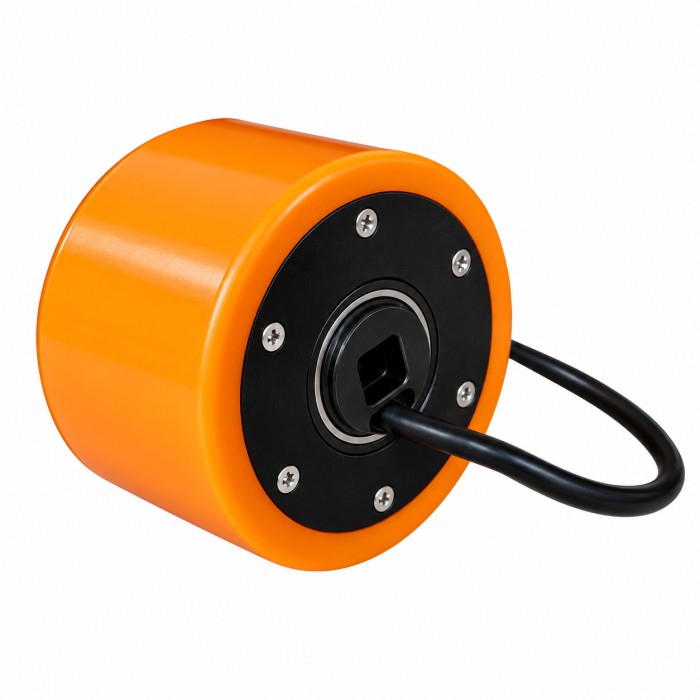

OUKEDA 90mm Sensored Brushless DC Hub Motor 36V 250W 10A 1850RPM 1.9Nm for Electric Scooter

OUKEDA 90mm Sensored Brushless DC Hub Motor 36V 250W 10A 1850RPM 1.9Nm for Electric Scooter


Electrical Specifications:
Motor Type:Brushless DC Hub Motor
Rated Voltage: 36 VDC
Rated Current: 10 A
Rated Power: 250 W
No-Load Speed: 1850 RPM
Rated Torque: 1.9 N·m
Maximum Torque: 3 N·m
Efficiency: ≥80%
Pole Pairs: 14
Protection Rating: IP44
Insulation Class: Class E
Braking Method: Electronic Brake / Electromagnetic Brake
No-Load Noise: 55 dB

Physical Specifications:

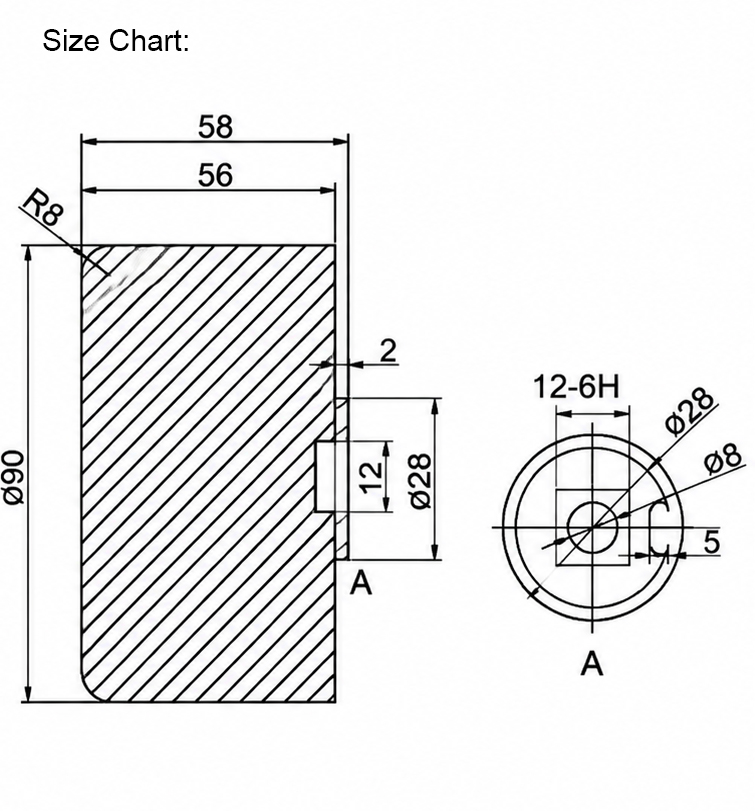

Wheel Outer Diameter: 90 mm
Wheel Width: 58 mm
Operating Temperature: -10°C to +35°C
Weight:1.2kg
