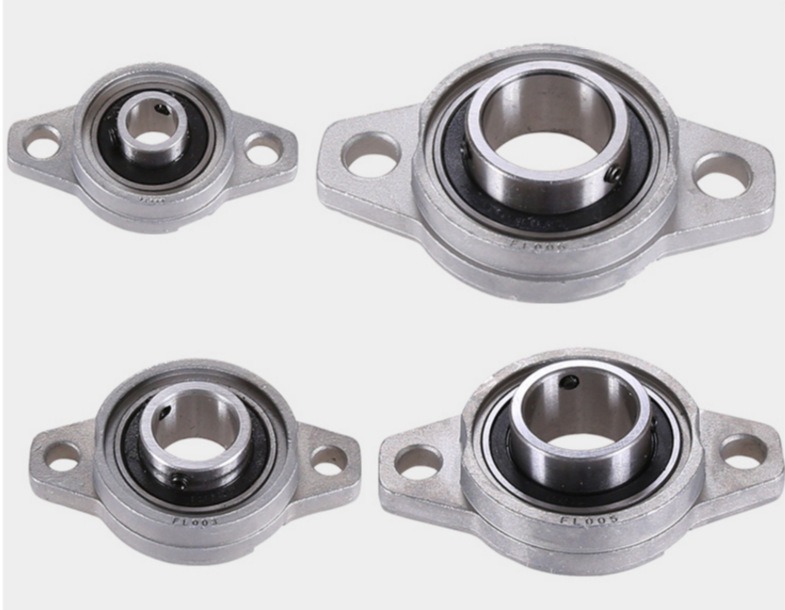

KFL Series 8mm Zinc Alloy Flange Bearing Unit for Linear Motion Systems and Stepper Motor Lead Screws

NO.:KFL Series
Post a review

Halloween Special Offer 2026:

All Treats No Tricks
6% OFF on Total Order Amount!
Enjoy Discount at Checkout!
Valid Till November 4th, 2026
Note:No coupon code needed, please place order directly!

Our Price:$2.99

Model:

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
5	$2.84	5%
10	$2.81	6%
50	$2.78	7%
100	$2.75	8%

Add To My Favorites

Description Specification Custom Options Review

KFL Series 8mm Zinc Alloy Flange Bearing Unit for Linear Motion Systems and Stepper Motor Lead Screws

Basic Specifications:
Brand:OUKEDA
Model:KFL Series
Material Alloy
Bearing Type Mounted Bearing
Inner Diameter:8mm
Shaft Diameter:8mm
Mounting Type:2-Bolt Flange Mount

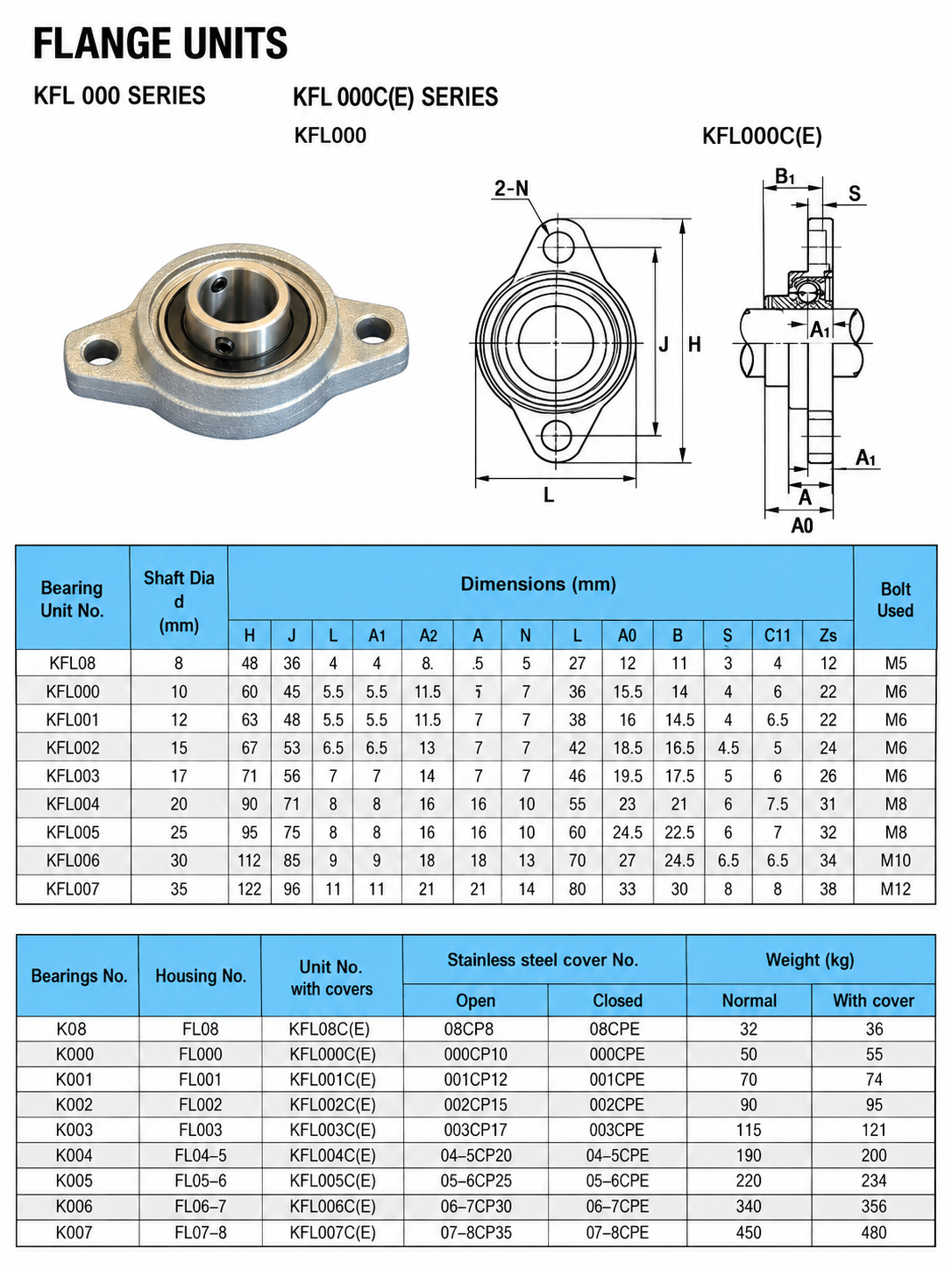

Physical Specifications:
Overall Height(H):48mm
Mounting Hole Center Distance(J):36mm
Dimension(A1):4mm
Dimension(A2):4mm
Dimension(A):8.5mm
Dimension(N):5mm
Overall Length(L):27mm
Dimension(A0):12mm
Housing Width(B):11mm
Dimension(S):3mm
Dimension(C11):4mm
Dimension(Zs):12mm

Cover Specifications
Open Cover Model:08CP8
Closed Cover Model:08CPE

Applications:
Lead Screw Support Systems
Stepper Motor-Driven Linear Motion Systems
CNC Machines
3D Printers
Automation Equipment
Shaft Support and Positioning Systems
