OUKEDA 17HS3401S Nema 17 Stepper Motor 1.8° 32 Ncm 3.6V for 3D Printers 42mm

OUKEDA 17HS3401S Nema 17 Stepper Motor 1.8° 32 Ncm 3.6V for 3D Printers 42mm
NO.:17HS3401S
Post a review
Halloween Special Offer 2026:
  • All Treats No Tricks
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till November 4th, 2026
  • Note:No coupon code needed, please place order directly!
Our Price:$6.99
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $6.64 5%
10 $6.57 6%
50 $6.50 7%
100 $6.43 8%
Add To Cart
Add To My Favorites
  • Share:

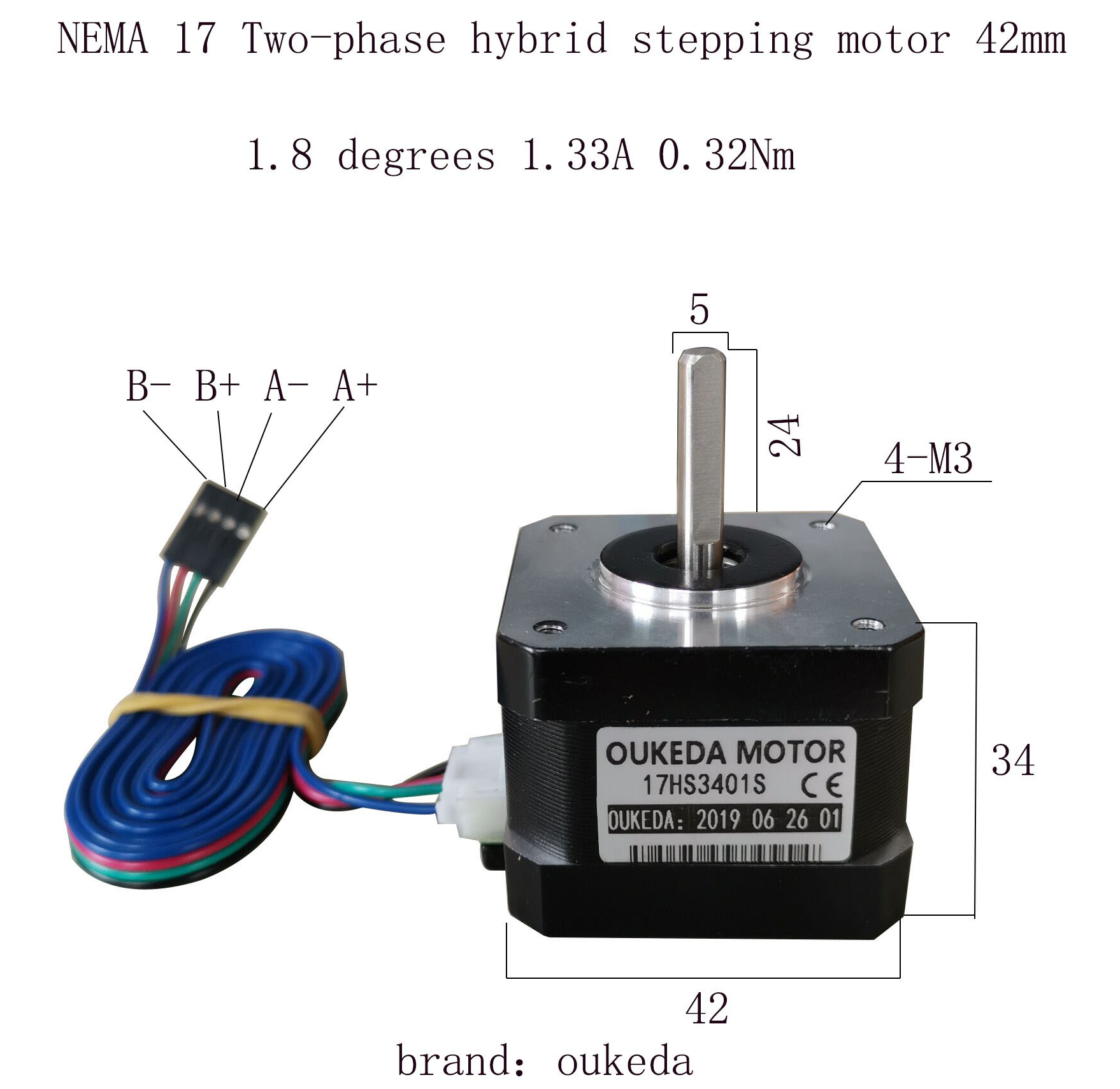

OUKEDA 17HS3401S Nema 17 Stepper Motor 1.8° 32 Ncm 3.6V for 3D Printers 42mm


Electrical Specification:

Manufacturer Part Number:17HS3401S

Number Of Phase:2

Step Angle:1.8°±5%

Rated Voltage:3.6VDC

Rated Current/phase:1.33A

Holding Torque:32Ncm (45.32 oz.in)

Detent Torque:1.2 Ncm (1.70 oz.in)

Phase Resistance:2.7Ω±10%(At 20°C)

Phase Inductance:4.2mH±20%

Rotor Inertia:38g·cm²

Insulation Resistance:100MΩ Min.(500VDC)

Insulation Class B

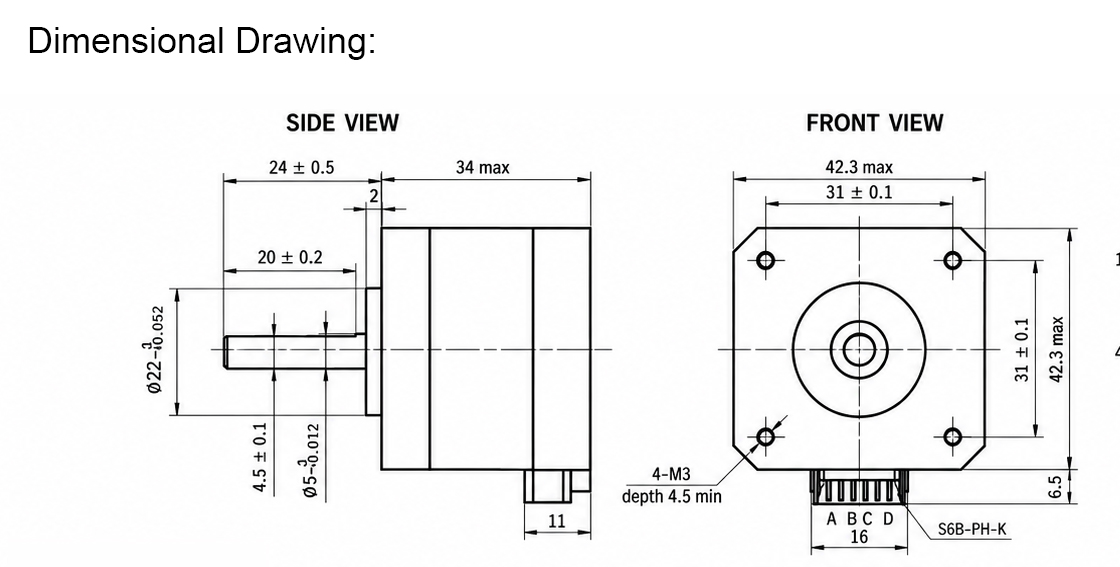

Physical Specification:

Frame Size:42×42mm

Body Length:34mm

Shaft Diameter:5mm

Shaft Length:24mm

D-cut Length:20mm

Lead Length:1000±20mm

Number of Leads:4

Weight:200g

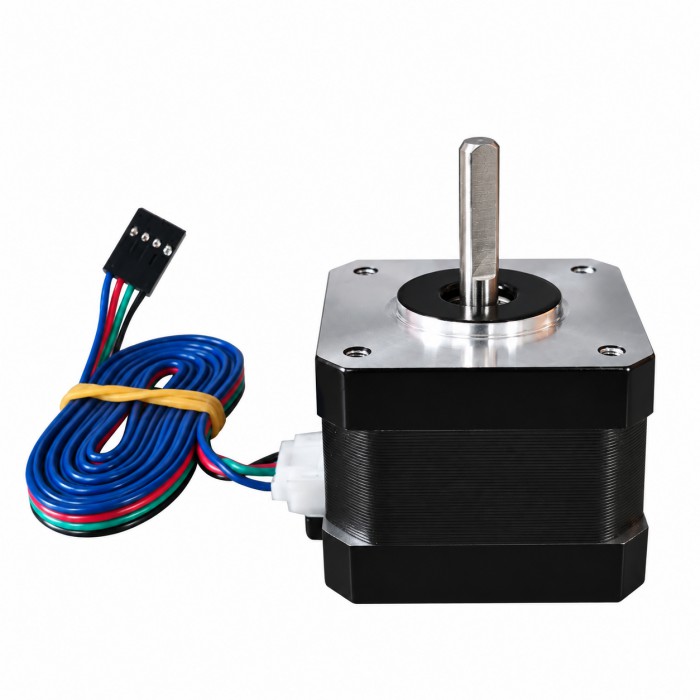

OUKEDA 17HS3401S Nema 17 Stepper Motor 1.8° 32 Ncm 3.6V for 3D Printers 42mm

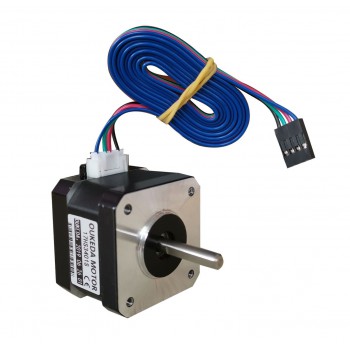

OUKEDA 17HS3401S Nema 17 Stepper Motor 1.8° 32 Ncm 3.6V for 3D Printers 42mm
