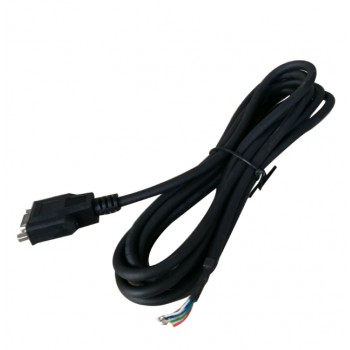

Leadshine DB15 Plug Closed Loop Motor Encoder Cable 6 Wires for NEAM 23, 24, 34

Leadshine DB15 Plug Closed Loop Motor Encoder Cable 6 Wires for NEAM 23, 24, 34
NO.:DB15
Post a review
Our Price:$4.99

Quantity:- +

Add To Cart
Add To My Favorites
  • Share:

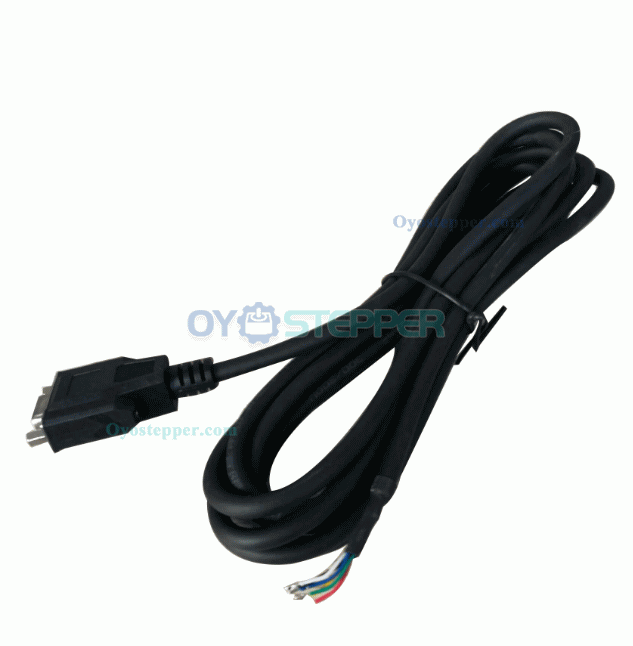

Leadshine DB15 Plug Closed Loop Motor Encoder Cable 6 Wires for NEAM 23, 24, 34



Details:

Encoder wiring Color
EB+ Blue
EB - Red
EA+ Red
EA- Green
VCC Yellow
GND White

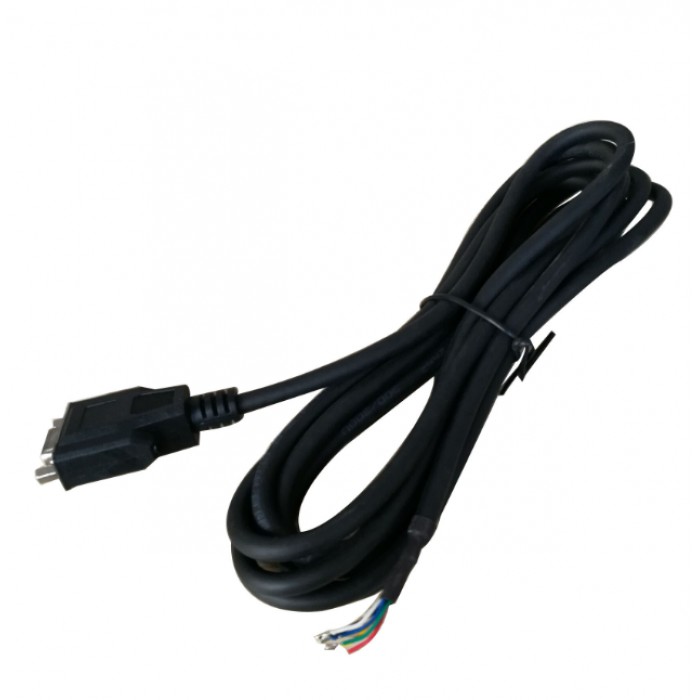

Leadshine DB15 Plug Closed Loop Motor Encoder Cable 6 Wires for NEAM 23, 24, 34
