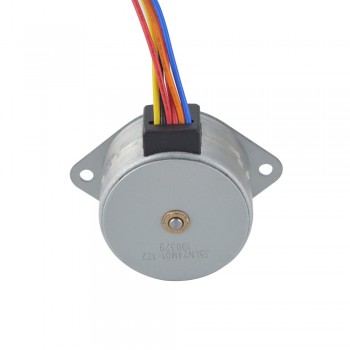

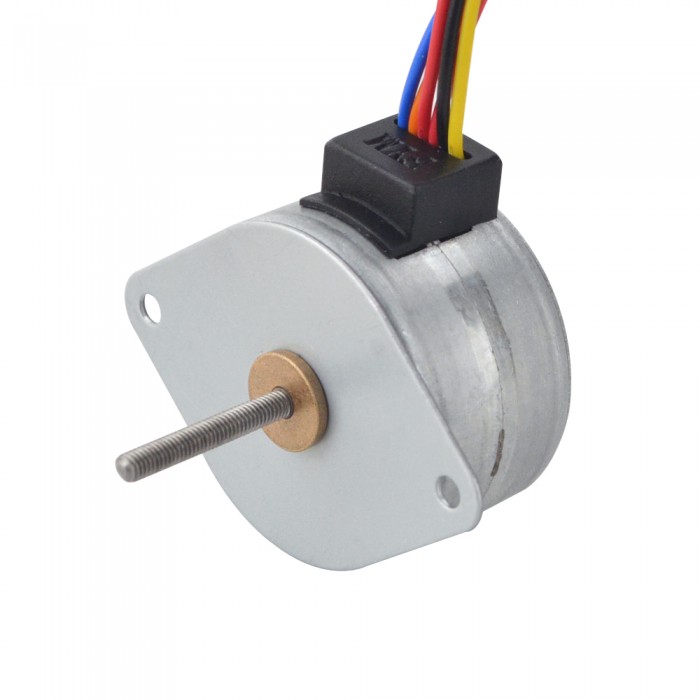

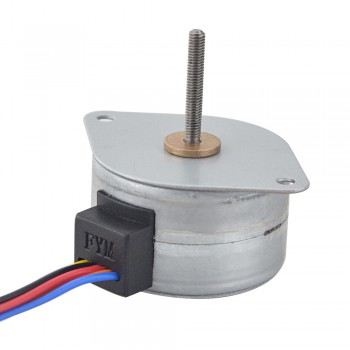

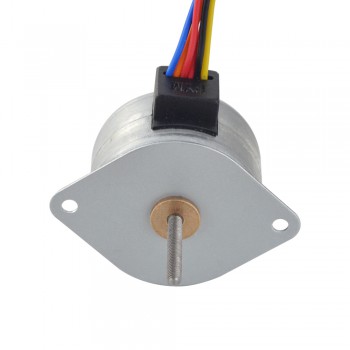

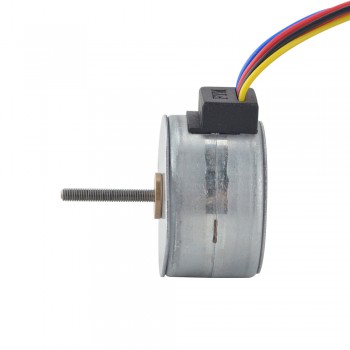

Φ35x22mm PM External Linear Stepper Motor Precision 0.28A Lead 0.5mm/0.0197" Length 21.5mm

NO.:35LN24M01-122
Review: Post a review
Black Friday Special Offer 2020:
  • 6% Off on Total Order Amount
  • Enjoy Discount at Checkout
  • No Need Coupon Code!
  • Valid Till 3rd December, 2020
Latest price:$15.53
Buy It Now:$11.94
Quantity:- +

Buy More, Save more!
5 - 9 10 - 49 50 - 99 100 - Max
$10.90 $10.38 $9.86 $9.35
Add To Cart

Electrical Specification

  • Manufacturer Part Number: 35LN24M01-122
  • Motor Type: PM External Linear Stepper
  • Phase: 2
  • Step Angle: 15 deg
  • Rated Current/phase: 0.28 A
  • Holding Torque: 44.1 mN.m(6.246 oz.in)
  • Phase Resistance: 85 ± 7% ohms(20 ℃)
  • Inductance: 32.9 mH ± 20%
  • Life: 3000 h

Physical Specification

  • Frame Size: Φ35 mm
  • Body Length: 22 mm
  • Lead Screw Length: 21.5 mm(0.846")
  • Lead Screw Diameter: Φ3 mm(0.118")
  • Lead/Revolution: 0.5 mm(0.0197")
  • Lead/Step: 0.0208 mm(0.0008")

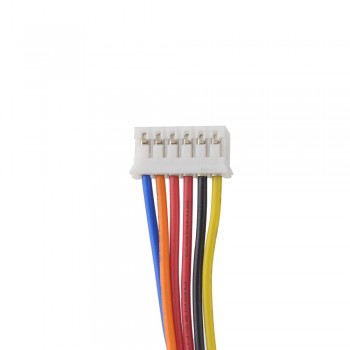

  • Number of Leads: 6 with connector PH-6Y
  • Lead Length: 240 mm
  • Weight: 89.7 g

Connection

A+
O+
A-
B+
O-
B-
Yellow
Red
Orange
Black
Red
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Φ27x30.8mm PM Precision Non-Captive Linear Stepper Motor 0.46A Lead 1mm/0.039" Length 120mm
Next: Φ35x17.5mm PM Precision Non-Captive Linear Stepper Motor 0.46A Lead 1.22mm/0.047" Length 139.7mm
Electrical Specification
Holding Torque (oz.in) 6.246
Inductance(mH) 32.9
Phase Resistance(ohm) 85
Rated Current (A) 0.28
Step Angle(°) 15
Motor Type External
No. of Phase 2
Holding Torque(mN.m) 44.1
Physical Specification
Body Length(mm) 22
Frame Size(mm) Φ35
Lead Length(mm) 240
Lead Screw Diameter(mm) Φ3
Lead Screw Length(mm) 21.5
No. of Lead 6
Lead Travel/Revolution(mm) 0.5
Lead Travel/Step(mm) 0.0208
