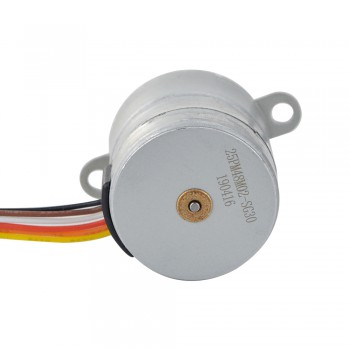

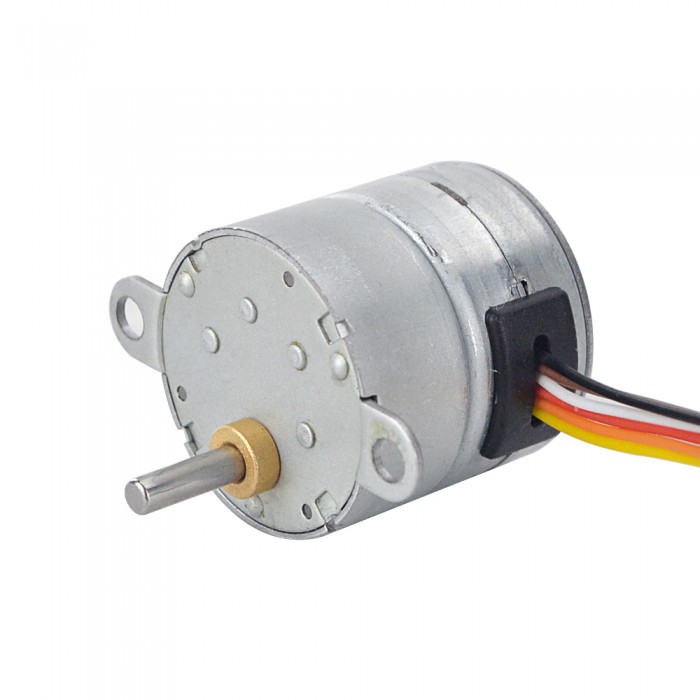

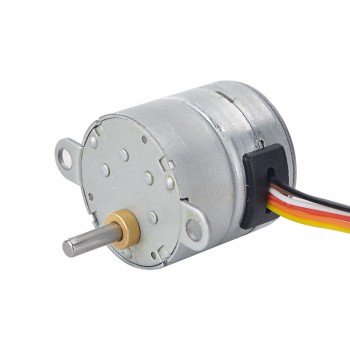

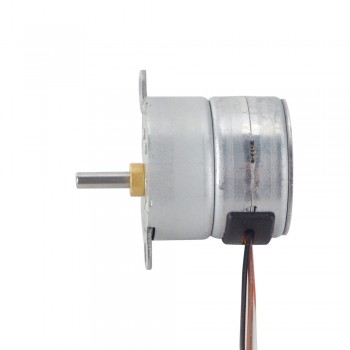

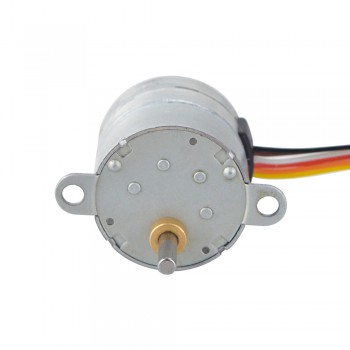

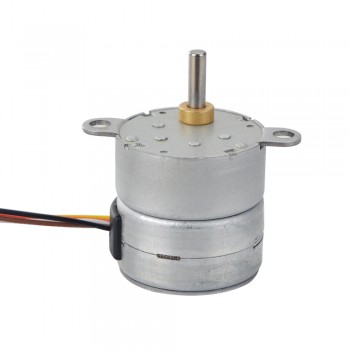

PM Geared Stepper Motor 4 Phase 0.25 Deg 39.2 Ncm 0.143A with 30:1 Spur gearbox Φ25x25.5mm
Electrical Specification
Manufacturer Part Number: 25PM48M02-SG30
Motor Type: PM Stepper
Phase: 4
Step Angle: 0.25 deg
Rated Current/phase: 0.143 A
Holding Torque: 39.2 Ncm(55.523 oz.in)
Phase Resistance: 35 ± 7% ohms(25 ℃)
Inductance: 8 mH ± 20%
Physical Specification
Frame Size: Φ25 mm
Body Length: 25.5 mm
Gearbox Length: 11.3 mm
Shaft Diameter: Φ3 mm
Shaft Length: 11.6 mm
Gearbox Type: Spur
Gear Ratio: 30

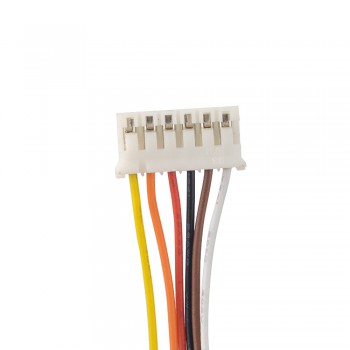

Number of Leads: 6 with connector PH-6Y
Lead Length: 90 mm
Weight: 46.7 g
Connection
|
A+
|
O+
|
A-
|
B+
|
O-
|
B-
|
|
YEL
|
ORG
|
RED
|
WHT
|
BRN
|
BLK
|
Resources
Full Datasheet: 25PM48M02-SG30.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Holding Torque (oz.in) | 55.523 |
| Inductance(mH) | 8 |
| Phase Resistance(ohm) | 35 |
| Rated Current (A) | 0.143 |
| Step Angle(°) | 0.25 |
| No. of Phase | 4 |
| Holding Torque(mN.m) | 39.2 |
| Gearbox Specification | |
| Gear Ratio | 30 |
| Gearbox Length(mm) | 11.3 |
| Gearbox Type | Spur |
| Physical Specification | |
| Body Length(mm) | 25.5 |
| Frame Size(mm) | Φ25 |
| Lead Length(mm) | 90 |
| No. of Lead | 6 |
| Shaft Diameter(mm) | Φ3 |
| Shaft Length(mm) | 11.6 |
