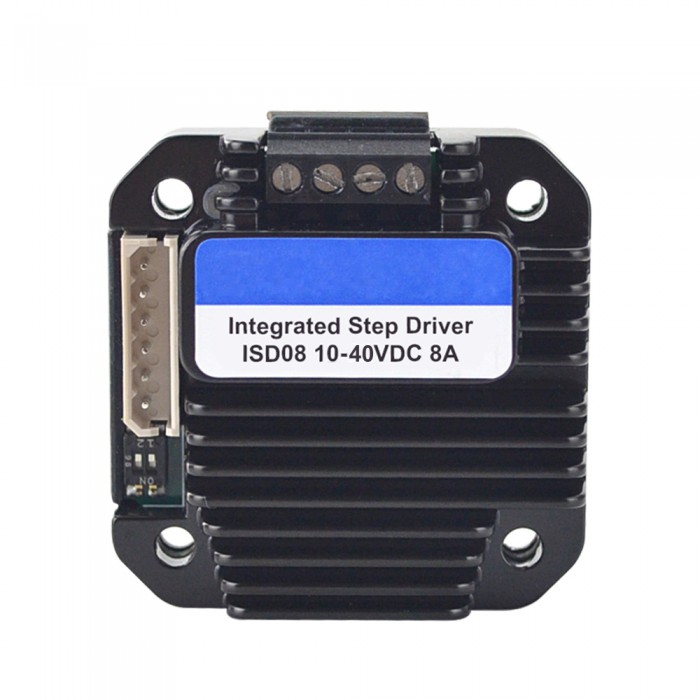

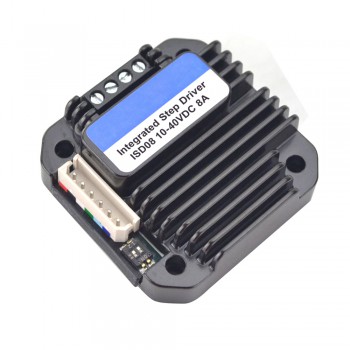

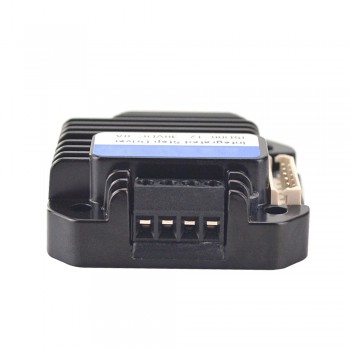

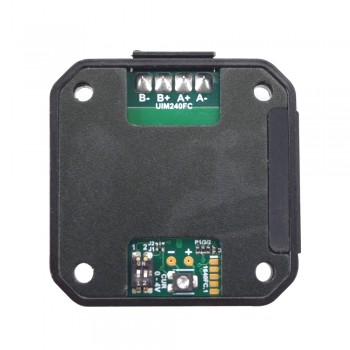

Integrated Stepper Motor Driver for NEMA 23,24,34 Stepper Motor 3-8A 10-40VDC

NO.:ISD08
Review: Post a review
Latest price:$97.88
Buy It Now:$65.26
Quantity:- +

Buy More, Save more!
5 - 9 10 - 49 50 - 99 100 - Max
$63.22 $61.18 $59.14 $55.06
Add To Cart

The ISD08 is a parallel port control series of miniature high performance stepper motor drivers. Its biggest feature is its small size and strong driving ability. Its thickness is less than 14 mm. They can be directly mounted onto NEMA 23, 24, 34 series stepper motors with the corresponding flange. ISD08 can provide 3-8A adjustable peak current. Its high-speed current compensation function can compensate for the effects of back electromotive force when the motor rotates at high speed.

You may need a bracket for mounting this driver to your motor: ST-M10

Key Features:

  • Miniature size 42.3 x 42.3 x 16.5 mm
  • Integrated with the motor, can also work separately
  • All-aluminum precision cast housing, sturdy and durable, good heat dissipation
  • Wide range input voltage
  • 3 - 8 A adjustable output current
  • 5 selectable microstep resolutions including 100,200,400,800,1600
  • H-bridge bipolar constant current, online controllable offline / enable
  • Optical-isolated inputs
  • Automatic Current Reduction
  • Maximum frequency of whole step 12KHz;Maximum frequency of 3200 microstep 200KHz

Electrical Specifications:

  • Output Peak Current: 3 - 8 A
  • Input Voltage: 10 - 40 VDC
  • Pulse Input Frequency: 5 - 12 KHz(Full-step)
  • Isolation Resistance: More than 100 MΩ
  • Dielectric strength: 500VAC for 1MIN.

Operating Environment and other Specifications(Tj = 25℃/77℉):

  • Cooling: Natural Cooling
  • Environment: Avoid dust, oil fog and corrosive gases
  • Humidity: Less than 80% RH
  • Operating Temperature: -40℃ - 85℃
  • Vibration: 3G Max
  • Storage Temperature: -50℃ - 150℃
  • Size: 42.3 x 42.3 x 16.5 mm
  • Weight: 52.9 g(1.866oz)

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Integrated Stepper Motor Driver for NEMA 17,23,24 Stepper Motor 1.5-4A 10-40VDC
Next: Integrated Stepper Motor Driver Controller for NEMA 8,11,14,17 Stepper Motor 0-2A 10-28VDC
Integrate Stepper Servo Motor Specification
Max Pulse Frenquency(KHz) 200
Stepper Driver Specification
Output Current(A) 3 - 8 A
Input Voltage(V) DC10 - 40
