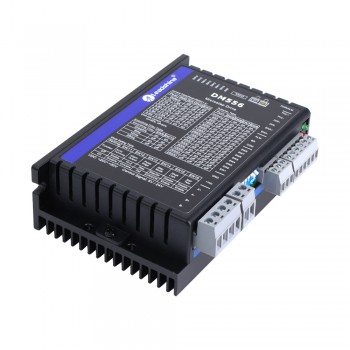

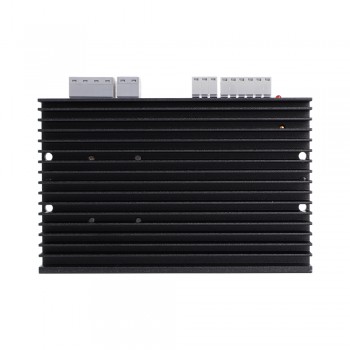

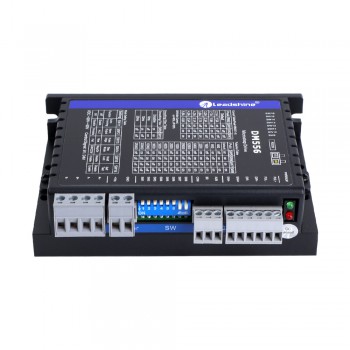

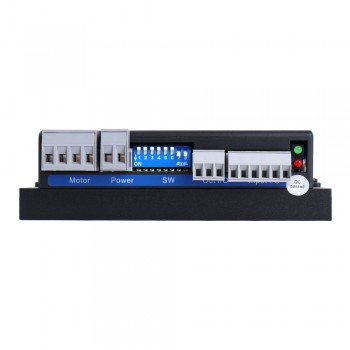

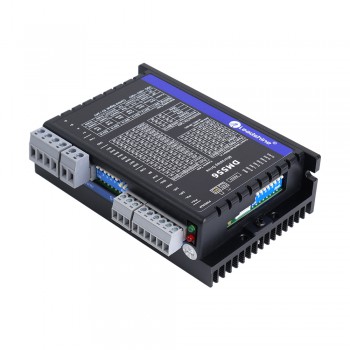

Leadshine DM556 Digital Stepper Driver 0.5-5.6A 20-50VDC for Nema 17, Nema 23, Nema 24 Stepper Motor

Leadshine DM556 Digital Stepper Driver 0.5-5.6A 20-50VDC for Nema 17, Nema  23, Nema  24 Stepper Motor
NO.:DM556
Post a review
Special Offer in May 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till May 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$57.78
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $54.89 5%
10 $53.74 7%
50 $52.00 10%
100 $50.27 13%
Add To Cart

Leadshine DM556 Digital Stepper Driver 0.5-5.6A 20-50VDC for Nema 17, Nema  23, Nema  24 Stepper Motor



The DM556 stepper drive is designed to power 2 phase (1.8°) or 4-phase (0.9°) NEMA17, 23 and 24 hybrid stepper motors. It can be adopted in many industries (CNC machinery, electronics, medical, automation, packaging…) for applications such as CNC routers, mills, plasma, laser cutters, factory assembly lines, vending machines, etc. Its stable performance, simple design, and easy setup features make DM556 suitable for many step & direction control type applications.



Key Features:

Step & direction (PUL/DIR) or CW/CCW (double pulse) control

20-50VDC supply voltage

200 KHz (500KHz optional) max pulse input frequency

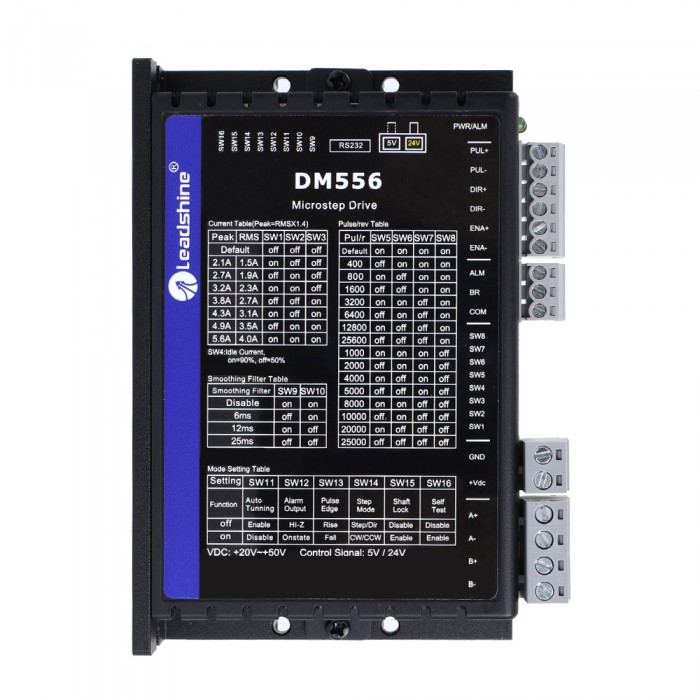

16 micro-step resolutions of 200-25,600 via DIP switches, or 200-51,200 via software (increase by 200)

8 output current settings of 1.8-5.6A via DIP Switches, or 0.5-5.6A via software (increase by 0.1)

Configurable control command smoothing for reducing motor vibration

Idle current reduction to 50% or 90% selection via SW4

Convenient self-test for easy diagnosis

Auto-tuning to match wide-range NEMA 17, 23, 24 stepper motors

Anti-Resonance for optimal torque, extra smooth motion, low motor heating and noise

Soft-start with no "jump" when powered on

Optically isolated inputs with 5V or 24V

Fault and Brake output

Over-voltage, over-current and motor cable error protections

CE certified and RoHS compliant



Electrical Specifications:

Output Current: 0.5~5.6A (4.0 RMS)

Input Voltage: +20~50VDC (Typical 24 - 48VDC)

Logic Signal Current: 7~16mA (Typical 10mA)

Pulse Input Frequency: 0~200kHz

Pulse Width: 2.5μS

Isolation Resistance: 500MΩ



Operating Environment and other Specifications(Tj = 25℃/77℉):

Cooling: Natural Cooling or Forced cooling

Environment: Avoid dust, oil fog and corrosive gases

Ambient Temperature: 0℃ - 65℃

Humidity: 40%RH-90%RH

Operating Temperature: 0℃ - 50℃

Vibration: 10-55Hz / 0.15mm

Storage Temperature: -20℃ - 65℃

Weight: Approx.250g(8.8oz)



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Leadshine 3DM580S Digital Stepper Driver 3-Phase 0.5-8.0A 20-74VDC for Nema 17, Nema 23, Nema 24, Nema 34 Stepper Motor
Next: Leadshine DM542 Digital Stepper Driver 0.5-4.2A 20-50VDC for Nema 17, Nema 23, Nema 24 Stepper Motor
Electrical Specification
No. of Phase 2
Control Modes Pulse Mode
Encoder Feedback No
Integrated with Pulser No
Input Voltage(V) 20 - 50 DC
Output Current(A) 0.5 - 5.6
Microstep(Steps/rev.) 200 - 25600
Max. Pulse Input(kHZ) 200
Pulse Width(μs) 2.5
