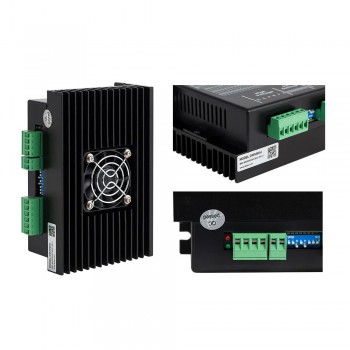

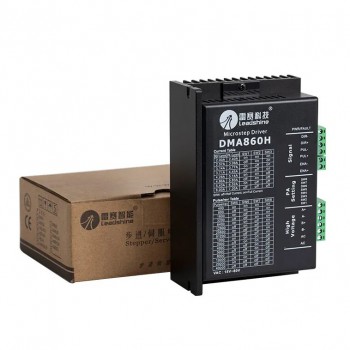

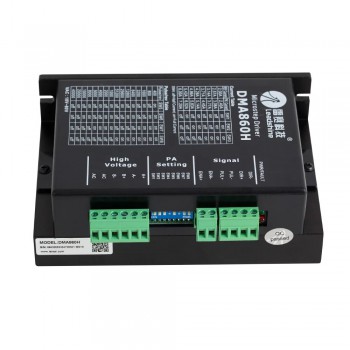

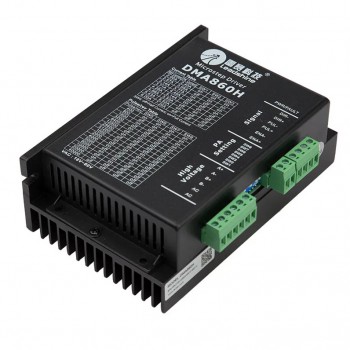

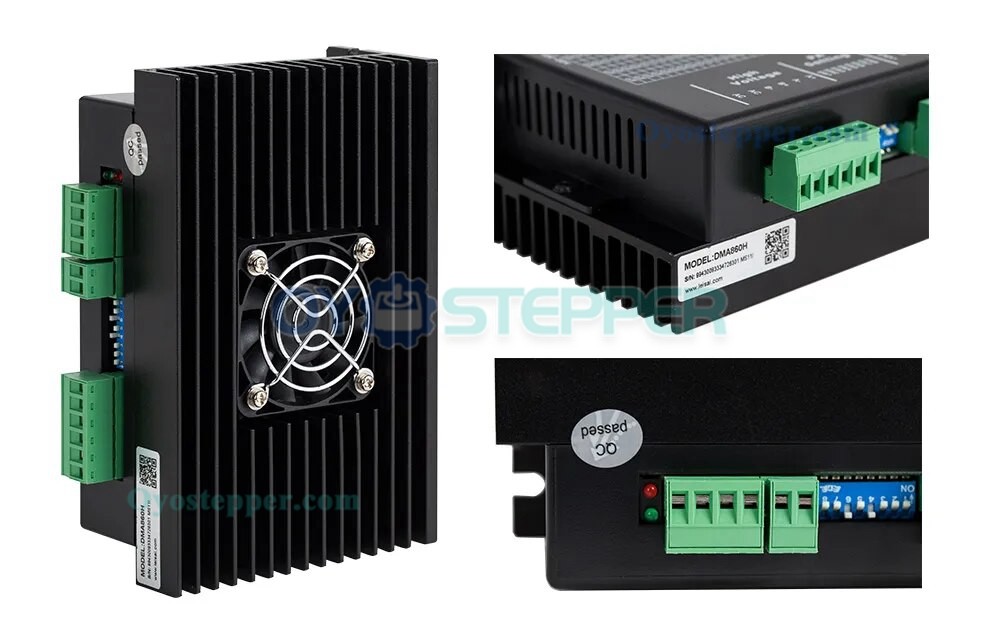

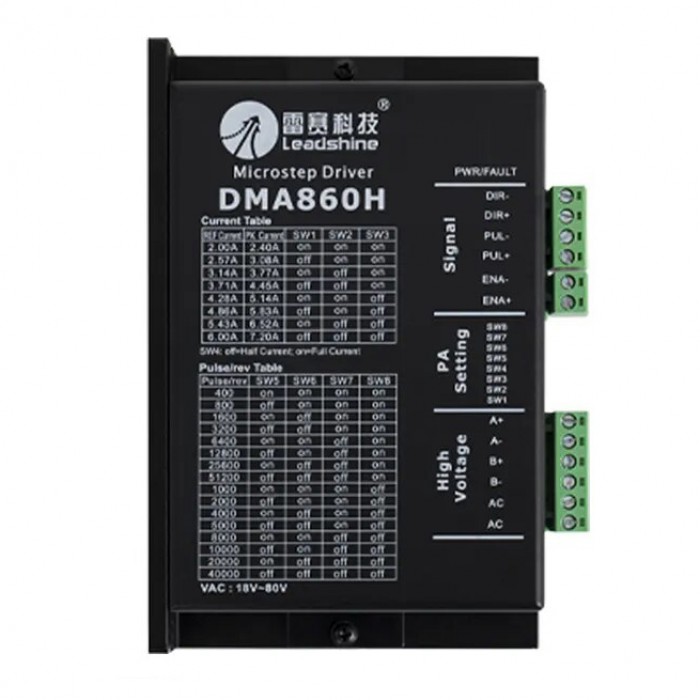

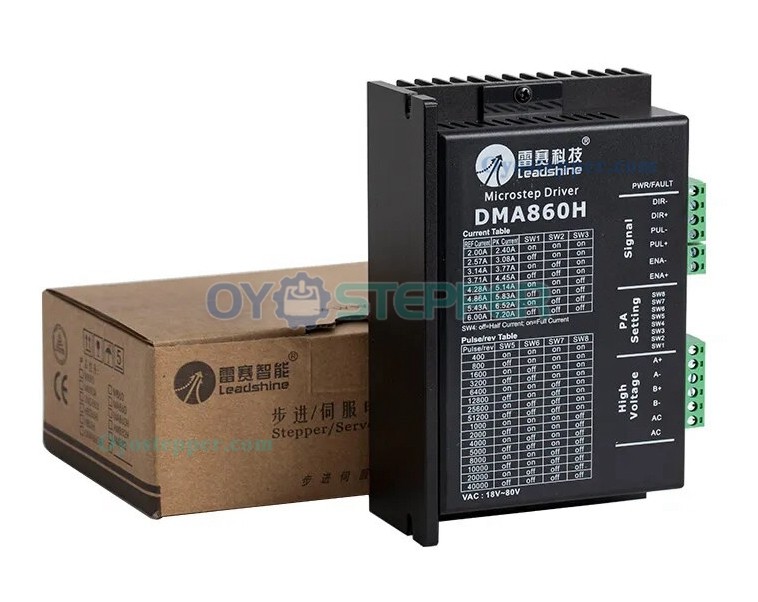

Leadshine DMA860H 2 Phase Stepper Driver 18-80VAC for Nema23 Nema34 Nema42 Stepper Motor

Leadshine DMA860H 2 Phase Stepper Driver 18-80VAC for Nema23 Nema34 Nema42 Stepper Motor

The DMA860H is a digital stepper drive with simple design and easy setup. By implementing Leadshine advanced stepper control technology, this stepper drive is able to power 2-phase and 4 phase stepper motors smoothly with suitable torque and low motor heating & noise. Its operating voltage is 18-80VAC or 24-110VDC and it can output up to 7.2A current. All the micro step and output current are done via DIP switches. Therefore, the DMA860H is suitable for applications requiring simple step & direction control of NEMA 23, 24, 34, and 42 stepper motors.

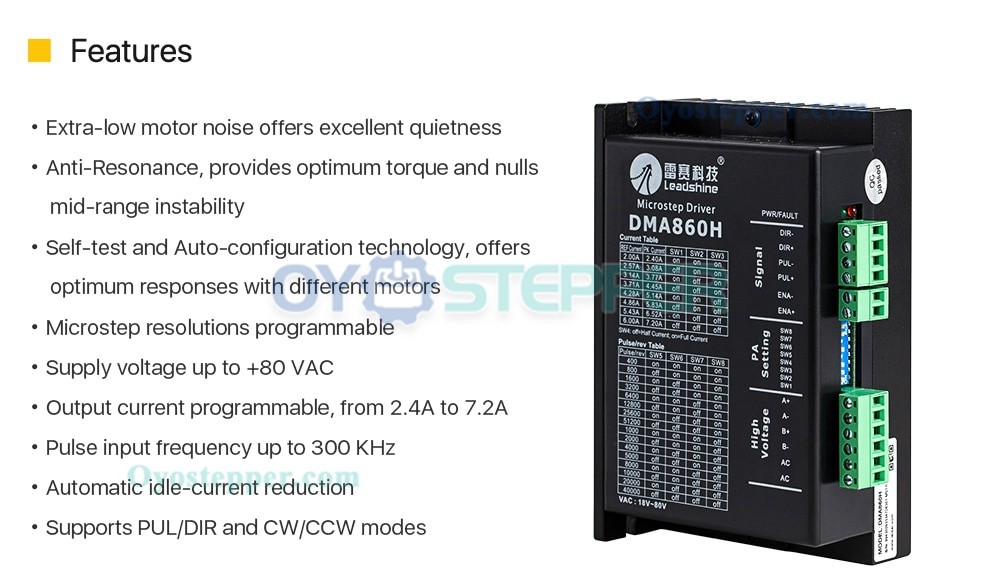

Features:
·Low motor noise
·Anti-Resonance, provides suitable torque and nullsmid-range instability
·Self-test and Auto-configuration technology, offers sensitive responses with different motors
·Microstep resolutions programmable
·Supply voltage up to +80 VAC
·Output current programmable, from 2.4A to 7.2A
·Pulse input frequency up to 300 KHz
·Automatic idle-current reduction
.Supports PUL/DlR and cw/ccw modes;

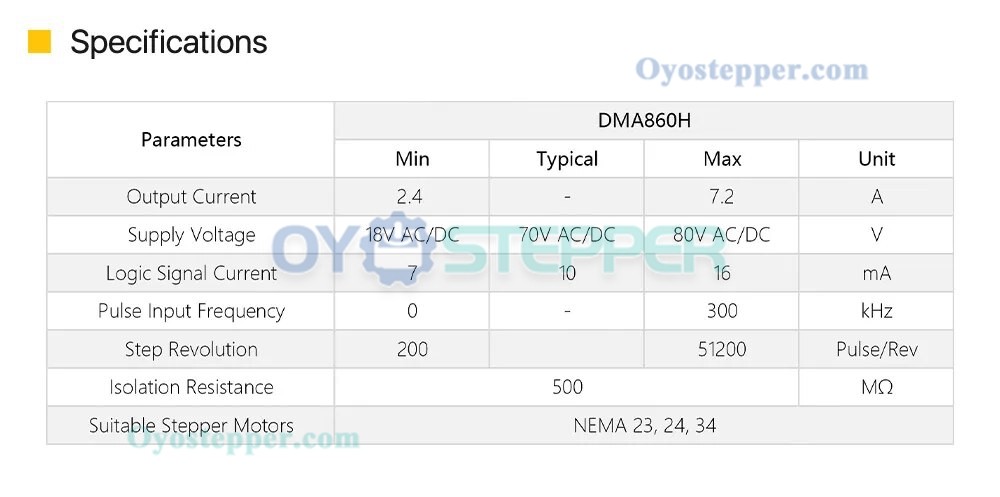

Electrical Specifications:
Output Peak Current: 2.4~7.2A
Input Voltage: +18~80VDC (Typical 70VDC)
Logic Signal Current: 7~16mA (Typical 10mA)
Pulse Input Frequency: 0~300kHz
Pulse Width: 2.5μS
Isolation Resistance: 500MΩ

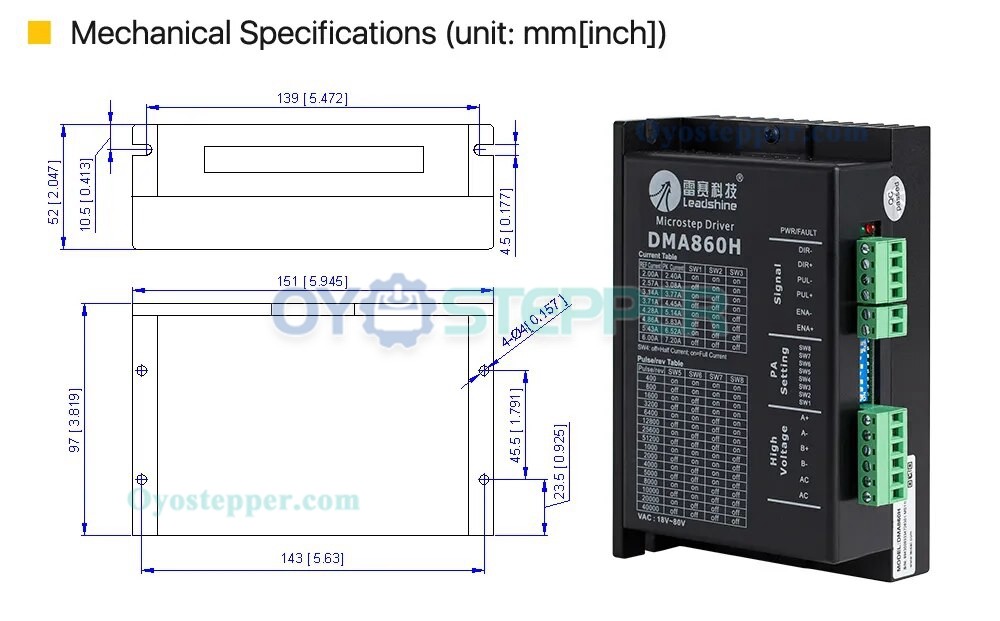

Operating Environment and other Specifications(Tj = 25℃/77℉):
Cooling: Natural Cooling or Forced cooling
Environment: Avoid dust, oil fog and corrosive gases
Ambient Temperature: 0℃ － 65℃
Humidity: 40%RH－90%RH
Operating Temperature: -10℃ － 45℃
Vibration: 10-55Hz / 0.15mm
Storage Temperature: -20℃ － 65℃
Weight: Approx.210g (7.4oz);

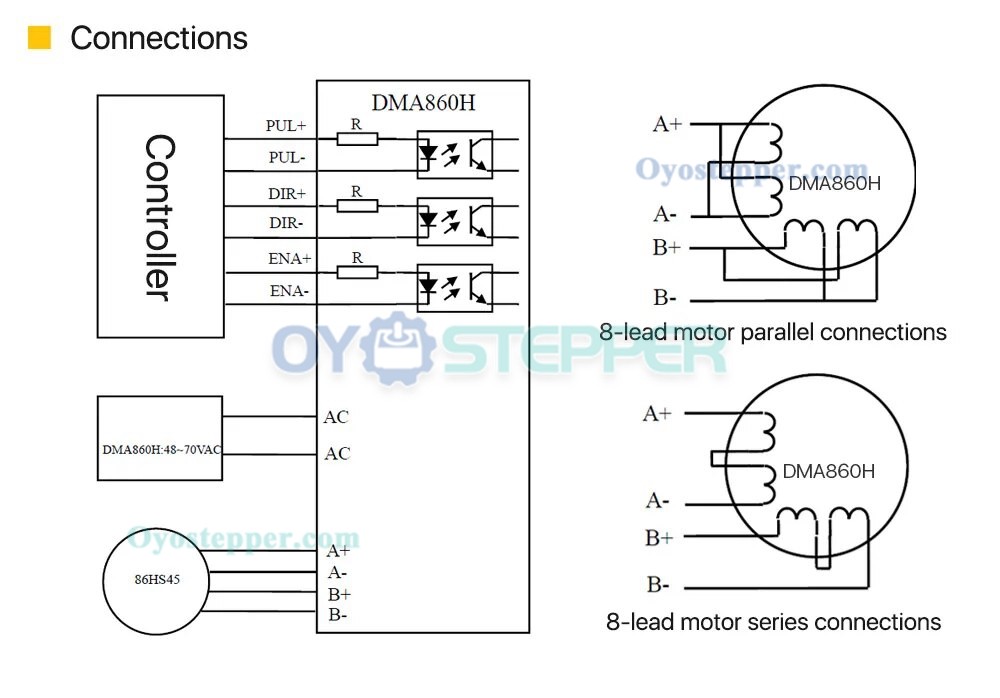

Resources

Driver Manual: dma860h.pdf
