OK2D872T is a digital two-phase stepper driver controlled by the latest 32-bit ARM processor. This digital driver has peripheral subdivision, current, and auxiliary function dial codes, which users can freely set according to their needs. Advanced drive control algorithms are written internally to ensure accurate and stable operation of the stepper motor in various speed ranges. Among them, built-in subdivision algorithms can ensure smooth operation of the motor at low speeds;  The parameter self-tuning algorithm can adapt to various motors and maximize motor performance; The built-in smoothing algorithm can greatly improve the acceleration and deceleration performance of the motor. In short, this digital drive can meet most applications and is a highly cost-effective motion control product.


Features:
Built in high subdivision, low vibration, low heat generation, and stable low-speed operation;
Current vector control, high current efficiency;
Built in acceleration and deceleration control to improve smoothness of start stop;
Single and double pulse control modes can be selected;
Memory of motor operating position;
Input signal differential optocoupler isolation, compatible with 5V~24V;
Overcurrent protection, overvoltage protection;
Automatic detection, flexible selection of pulse edge counting method;
Green light indicates operation, while red light indicates protection or offline;

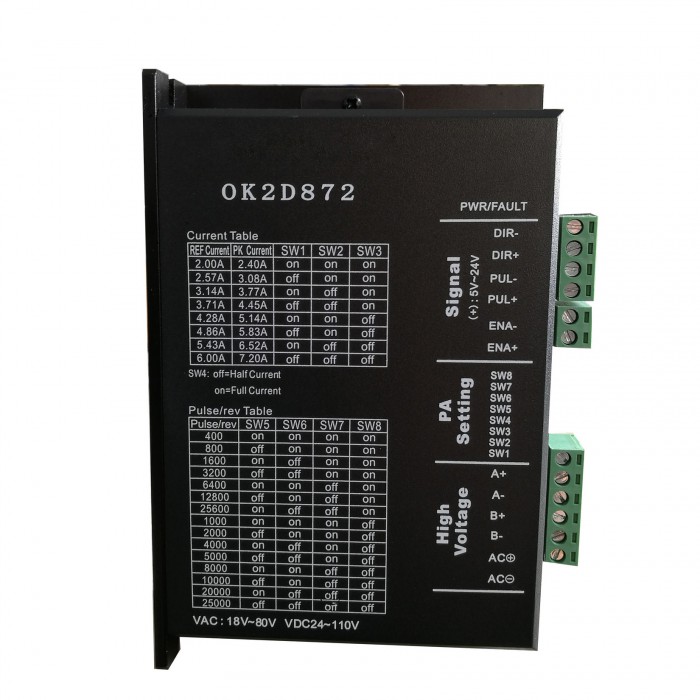

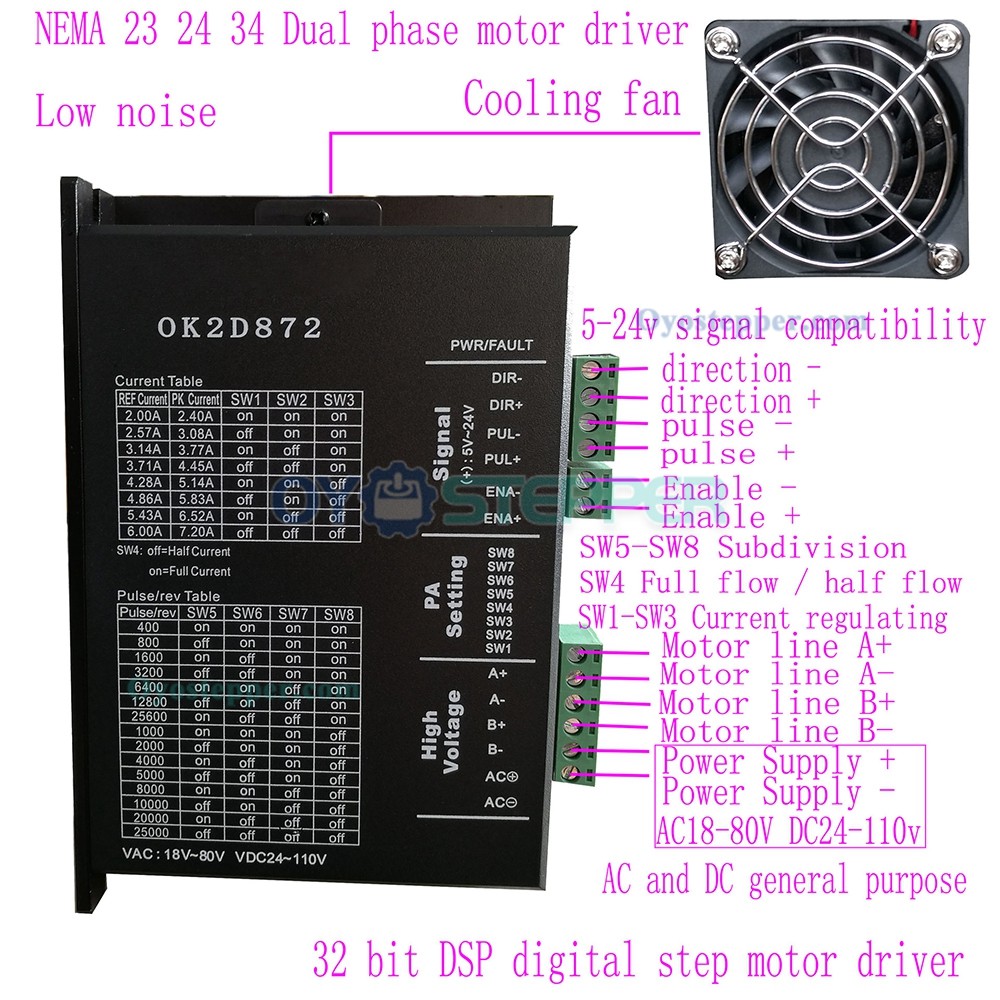

The SW1-3 current dial settings are shown in the table below.

Electrical Specifications:
Output Peak Current: 1.4~5.6A
Input Voltage: 24-110VDC, 18-80VAC
Pulse Input Frequency: 0~200kHz
Protection:
a.Peak overcurrent action value 6A ±10%
b.Overvoltage voltage action value 50VC
Defaul communication rate:57.6Kbps
Overall dimensions:19.5x60x96mm
Weight: Approx.280g;


Operating Environment and other Specifications(Tj = 25℃/77℉):
Cooling: Natural Cooling or Forced cooling
Environment: Avoid dust, oil fog and corrosive gases
Humidity: 40%RH－90%RH
Operating Temperature: 0℃ － 70℃
Vibration: 10-55Hz / 0.15mm
Storage Temperature: -20℃ － 80℃;

Resources

• Driver Manual: OK2D872 user manual.pdf

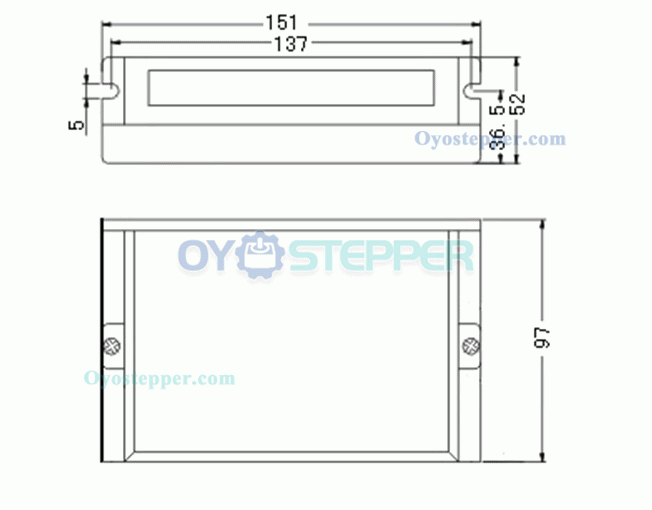

Install Picture:(unit: mm [1inch=25.4mm])
