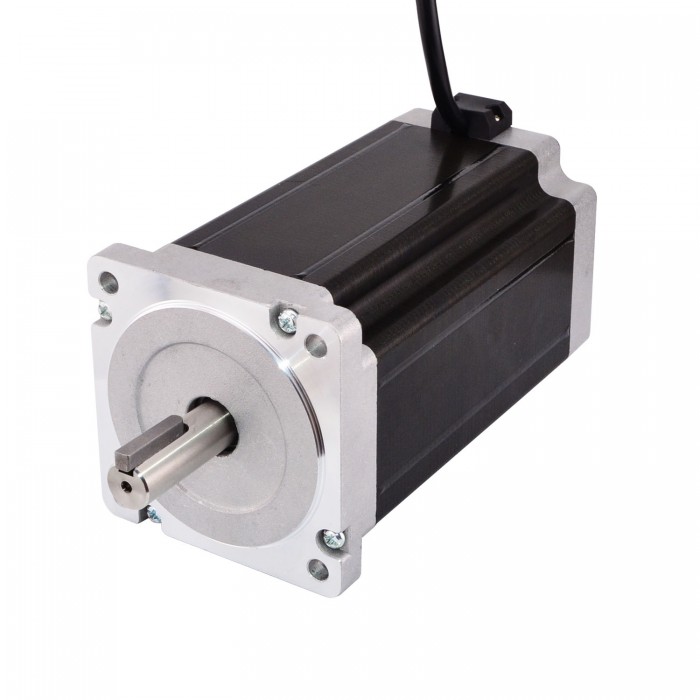

Keyway Dual Shaft Nema 34 Stepper Motor 13Nm (1841oz.in) 5A 86x86x150mm
Special Offer in June 2023:
- 5% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till June 10th, 2023
- Note:No coupon code needed, please place order directly!
Our Price:$104.14

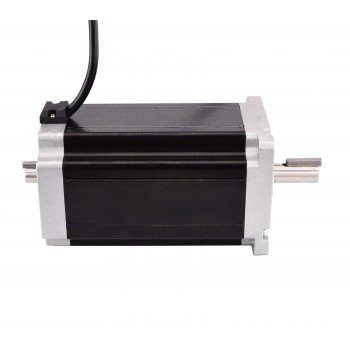

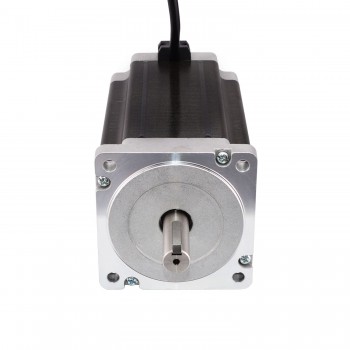

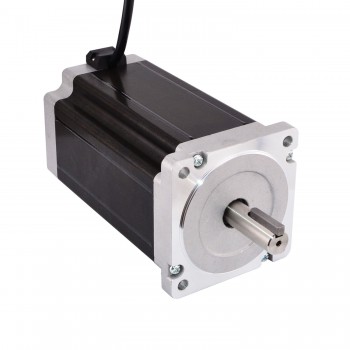

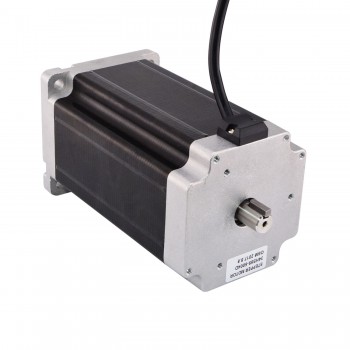

This is a dual-shaft motor with a 15mm long rear shaft, and the shaft diameter is 12mm. Threaded holes are available on the rear end cap which can be used to brakes, encoder for hand wheels.
Electrical Specification
- Manufacturer Part Number: 34HS59-5004D
- Motor Type: Bipolar Stepper
- Step Angle: 1.8 deg
- Holding Torque: 13Nm(1841oz.in)
- Rated Current/phase: 5A
- Voltage: 5V
- Phase Resistance: 1ohms
- Inductance: 11mH ± 20%(1KHz)
Physical Specification
- Frame Size: 86 x 86mm
- Body Length: 151.5mm
- Shaft Diameter: Φ14mm
- Shaft Length: 37mm
- Key-Way Length: 25mm
- Rear Shaft Length: 15mm
- Rear Shaft Diameter: 12mm
- Number of Leads: 4
- Lead Length: 500mm
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Red
|
Black
|
Yellow
|
Blue
|
Resources
- Motor Datasheet: 34HS59-5004D.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 1300 |
| Holding Torque (oz.in) | 1841 |
| Inductance(mH) | 11 |
| Phase Resistance(ohm) | 1 |
| Rated Current (A) | 5 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 151.5 |
| Frame Size(mm) | 86x86 |
| Single Shaft/Dual Shaft | Dual Shaft |
| Shaft Type | Key-Way |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 37 |
| No. of Lead | 4 |
| Lead Length(mm) | 500 |
| Weight(g) | 5450 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
