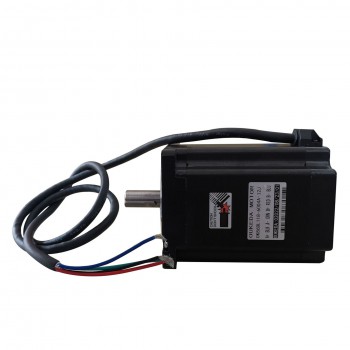

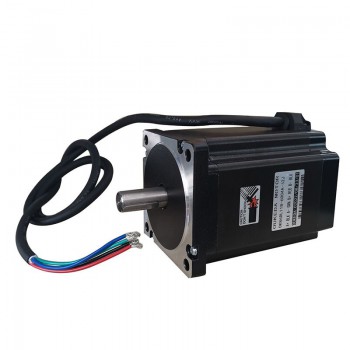

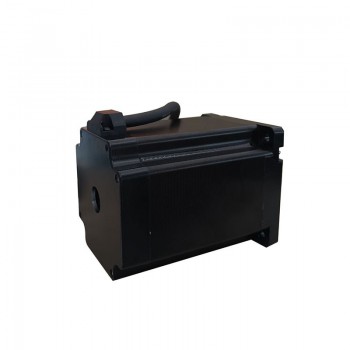

Oukeda NEMA 34 Stepper Motor 4.5Nm/8.5Nm/12Nm 1.8deg 2.5V 6A Keyway 86mm
-
Manuals and Documentation:
Halloween Special Offer 2026:
- All Treats No Tricks
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till November 4th, 2026
- Note:No coupon code needed, please place order directly!
Our Price:$35.99
Oukeda NEMA 34 Stepper Motor 4.5Nm/8.5Nm/12Nm 1.8deg 2.5V 6A Keyway 86mm
| NEMA 34 Stepper Motor Specifications | |||
|---|---|---|---|
| Specification | 4.5Nm | 8.5Nm | 12Nm |
| Electrical Specification | |||
| Holding Torque | 4.5Nm | 8.5Nm | 12Nm |
| Number of Phase | 2 | 2 | 2 |
| Step Angle | 1.8°±5% | 1.8°±5% | 1.8°±5% |
| Rated Voltage | 2.5VDC | 2.5VDC | 2.5VDC |
| Rated Current/phase | 6.0A | 6.0A | 6.0A |
| Phase Resistance | 0.48Ω±10% | 0.7Ω±10% | 0.7Ω±10% |
| Inductance | 3.5mH±20% | 5.8mH±20% | 5.8mH±20% |
| Insulation Class | Class B | Class B | Class B |
| Insulation Resistance | 100MΩ min. | 100MΩ min. | 100MΩ min. |
| Physical Specification | |||
| Frame Size | 86×86mm | 86×86mm | 86×86mm |
| Body Length | 78mm max | 118mm max | 118mm max |
| Shaft Diameter | Φ14mm | Φ14mm | Φ14mm |
| Shaft Length | 32mm | 32mm | 37mm |
| Mounting Holes | 4-Φ6.5mm | 4-Φ6.5mm | 4-Φ6.5mm |
| Mounting Hole Spacing | 69.58mm | 69.58mm | 69.58mm |
| Lead Length | 1000mm | 1000mm | 1000mm |
| Lead Wire | AWG18 | AWG18 | AWG18 |
| Weight | Approx.2.3kg | Approx.3.8kg | Approx.4.5kg |

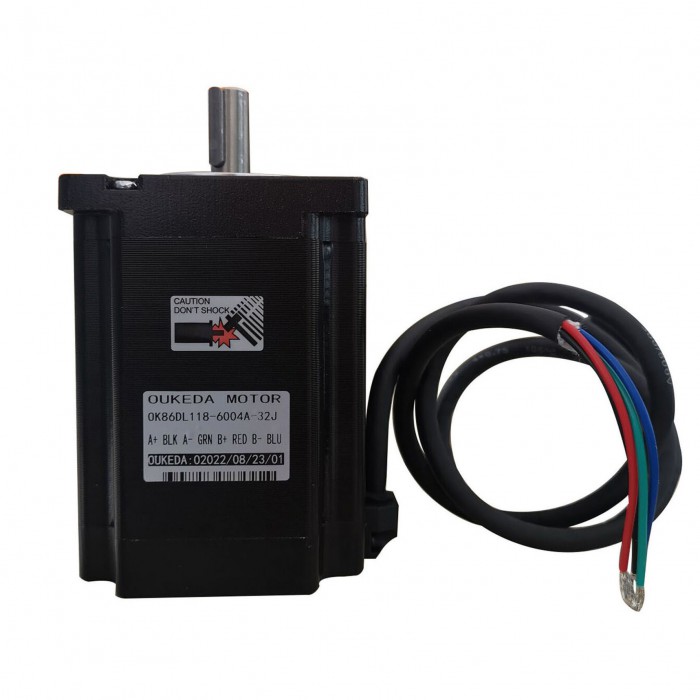

| Connection | |||
| A+ | Black | Black | Black |
| A- | Green | Green | Green |
| B+ | Red | Red | Red |
| B- | Blue | Blue | Blue |
| Available Options | |||
| Option 1 | 4.5Nm - 32mm Shaft | ||
| Option 2 | 8.5Nm - 32mm Shaft | ||
| Option 3 | 12Nm - 37mm Shaft | ||
.jpg)
.jpg)
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Rated Current (A) | 0.6 |
| Step Angle(°) | 1.8 |
| No. of Phase | 2 |
| Phase Voltage(V) | 2.5 |
| Physical Specification | |
| Body Length(mm) | 78 / 118 |
| No. of Lead | 2 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 32 / 37 |
| Shaft Type | Keyway |
| Single Shaft/Dual Shaft | Single Shaft |
