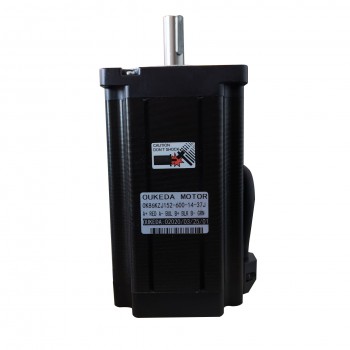

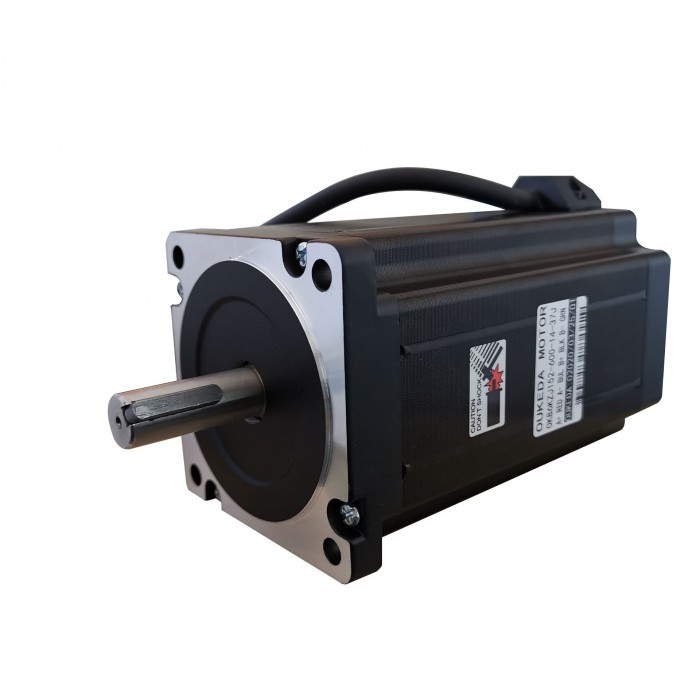

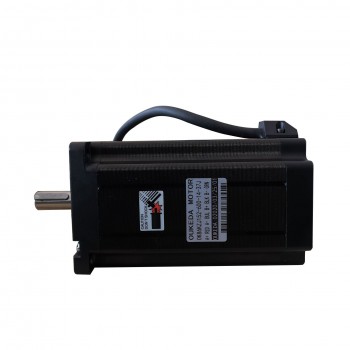

OUKEDA NEMA 34 Stepper Motor 12Nm 1.8° 6A 4.5V Keyway 2-Phase 86mm

NO.:OK86KZJ152-600-14-37J
Post a review

Manuals and Documentation:
OK86KZJ152-600-14-37J-datasheet.pdf

Halloween Special Offer 2026:

All Treats No Tricks
6% OFF on Total Order Amount!
Enjoy Discount at Checkout!
Valid Till November 4th, 2026
Note:No coupon code needed, please place order directly!

Our Price:$99.99

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
5	$94.99	5%
10	$93.99	6%
50	$92.99	7%
100	$91.99	8%

Add To My Favorites

Description Specification Custom Options Review

OUKEDA NEMA 34 Stepper Motor 12Nm 1.8° 6A 4.5V Keyway 2-Phase 86mm

Electrical Specifications

Model: OK86KZJ152-600-14-37J

Motor Type: 2-Phase Stepper Motor

Step Angle: 1.8°±5%

Holding Torque: 12Nm

Rated Current/Phase: 6.0A

Rated Voltage: 4.5VDC

Phase Resistance: 0.75Ω±10%

Phase Inductance: 12mH±20% (1kHz)

Insulation Resistance: 100MΩ (500VDC)

Insulation Class: Class B

Dielectric Strength: 500VAC

Temperature Rise: 80°C Max

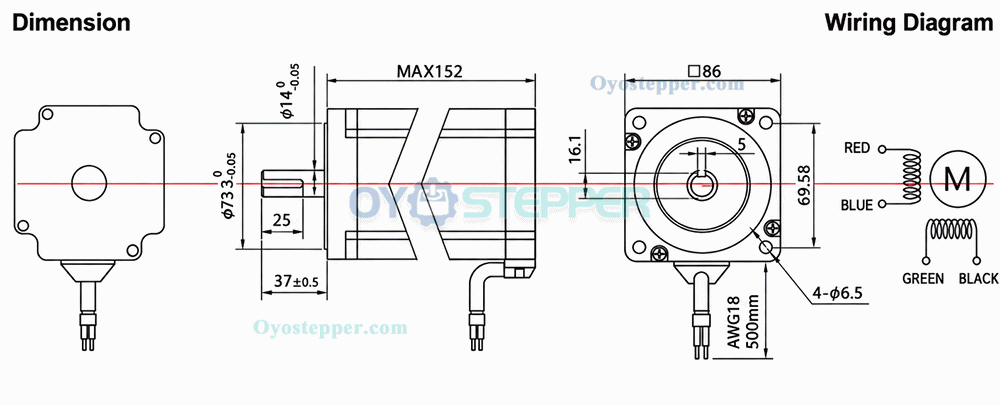

Physical Specifications:

Frame Size: 86×86mm (NEMA34)

Motor Body Length: 152mm Max

Shaft Diameter: Φ14mm (0/-0.05mm)

Shaft Length: 37±0.5mm

Keyway Length: 25mm

Keyway Width: 5mm

Front Flange Diameter: Φ73mm (0/-0.05mm)

Mounting Holes: 4-Φ6.5mm

Mounting Hole Spacing: 69.58mm

Lead Length: 500mm

Lead Wire: AWG18

Motor Weight: Approx.5.1kg

Operating Temperature: -10°C to +50°C
