NEMA 8 Non-Captive Acme Linear Stepper Motor 0.5A 38.2mm Stack Screw Lead 4mm(0.1575") Lead Length 150mm

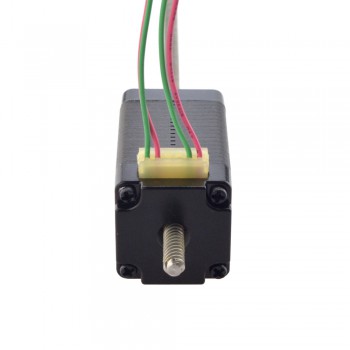

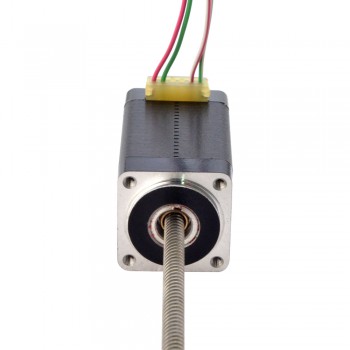

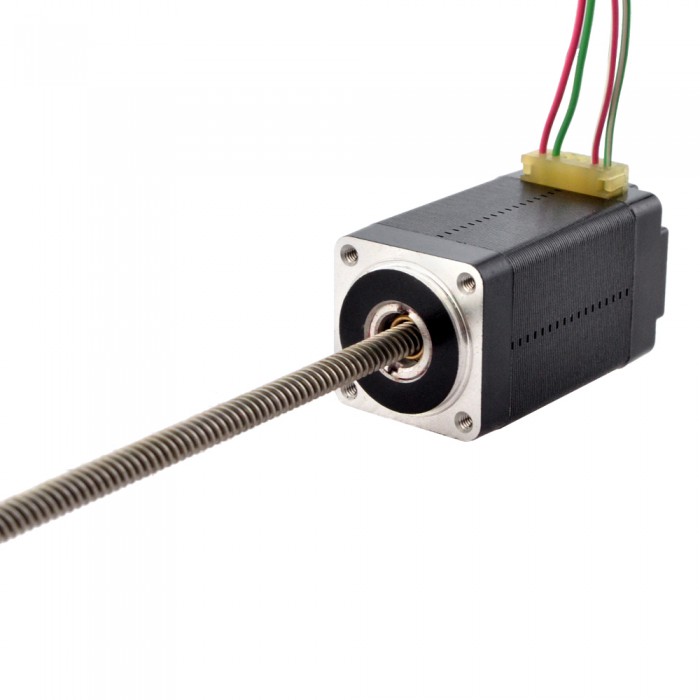

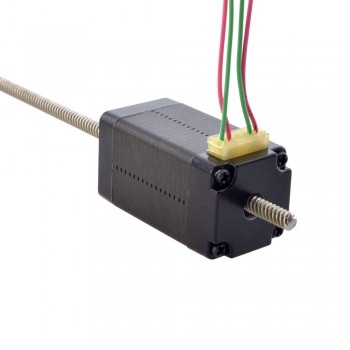

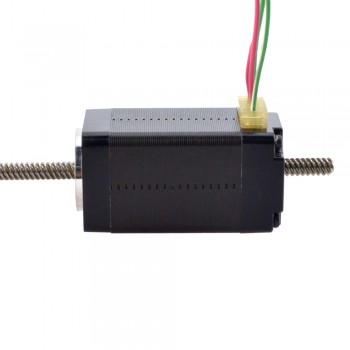

This model is a Nema 8 Non-Captive screw linear stepper motor with a 38.2mm body length, 1.8 degree step angle and 0.5A rated current. It is integrated with a 3.5mm(0.1378") diameter, 150mm(5.906") lead screw length and a POM screw nut, the linear travel is 4mm(0.1575") per revolution.
Electrical Specification
Manufacturer Part Number: 8N15S0504DC5-150RS
Motor Type: Non-Captive
Step Angle: 1.8°
Holding Torque: 0.02Nm(2.83oz.in)
Rated Current/phase: 0.5A
Phase Resistance: 12.5ohms
Inductance: 4.5mH±20%(1KHz)
Physical Specification
Frame Size: 20 x 20mm
Body Length: 38.2mm
Lead Screw Length: 150mm(5.906")

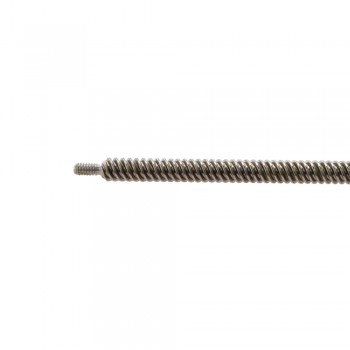

Lead Screw Diameter: Φ3.5mm(0.1378")
Lead/Step: 0.02mm(0.0007874")
Lead Travel/Revolution: 4mm(0.1575")
Number of Leads: 4
Number of Thread Starts: 4
Lead Length: 300mm
Connection
| A+ | A- | B+ | B- |
| Red | Red/White | Green | Green/White |
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 4.5 |
| Phase Resistance(ohm) | 12.5 |
| Rated Current (A) | 0.5 |
| Step Angle(deg.) | 1.8 |
| Linear Motor Type | Non-Captive |
| Physical Specification | |
| Body Length(mm) | 38.2 |
| Frame Size(mm) | Nema 08 (20 x 20) |
| Lead Length(mm) | 300 |
| Lead Screw Diameter(mm) | 3.5 |
| Lead Screw Length(mm) | 150 |
| No. of Lead | 4 |
| Lead Travel/Revolution(mm) | 4 |
| Lead Travel/Step(mm) | 0.02 |
| IP Rating | 40 |
