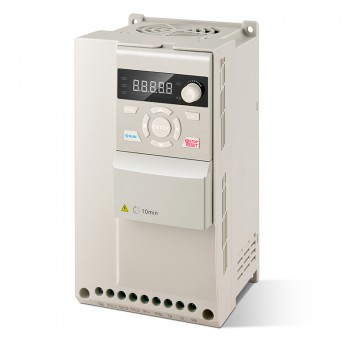

H100 Series VFD Variable Frequency Drive 7.5HP 5.5KW 23A Three Phase 220V VFD Inverter Frequency Converter
-
Manuals and Documentation:
User Manual:
Full User Manual:
Special Offer in June 2026:
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till June 30th, 2026
- Note:No coupon code needed, please place order directly!
Our Price:$236.34

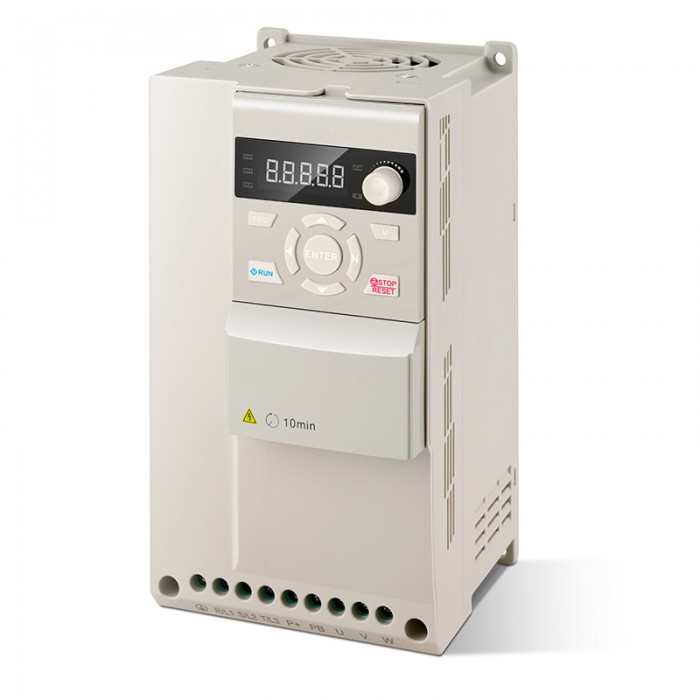

H100 Series VFD 7.5HP 5.5KW 23A Three Phase 220V Variable Frequency Drive
This 7.5 HP (5.5 kW) H100 VFD operates on 220 V three‑phase input and is used in textile, packaging, engraving, printing, food, woodworking, pump, fan, ceramic, and solar pump applications.
Key Specification
Rated Input Voltage: 3-Phase 220V
Allowed Input Voltage: 320~460VAC
Input Frequency: 50/60Hz(+/-5%)
Input Current: 24A
Power: 7.5HP(5.5KW)
Output Current: 23A
Output Voltage: 0~Rated Input Voltage
Output Frequency: 0~1000Hz
Output Capacity: 150% Rated Current 60s, 180% Rated Current 2s
| Variable Frequency Drive Specification | |
|---|---|
| Input Voltage | 3PH 380VAC |
| Allowed Input Voltage | 320 - 460VAC |
| Input Frequency | 50 - 60Hz |
| Input Current | 24A(3PH) |
| Power | 7.5HP / 5.5Kw |
| Output Current | 23A |
| Control Modes | V/F, SVC |
| Output Voltage | 0 - Rated Input Voltage |
| Output Frequency | 0 - 1000Hz |
| Output Capacity | 150% Rated Current 60s, 180% Rated Current 2s |
| Modulation Mode | SVPWM |
| Start Torque | 1Hz / 150% |
| Speed Range | 1 : 100(SVC) |
| Acceleration/Deceleration Curve | Line / S-curve |
