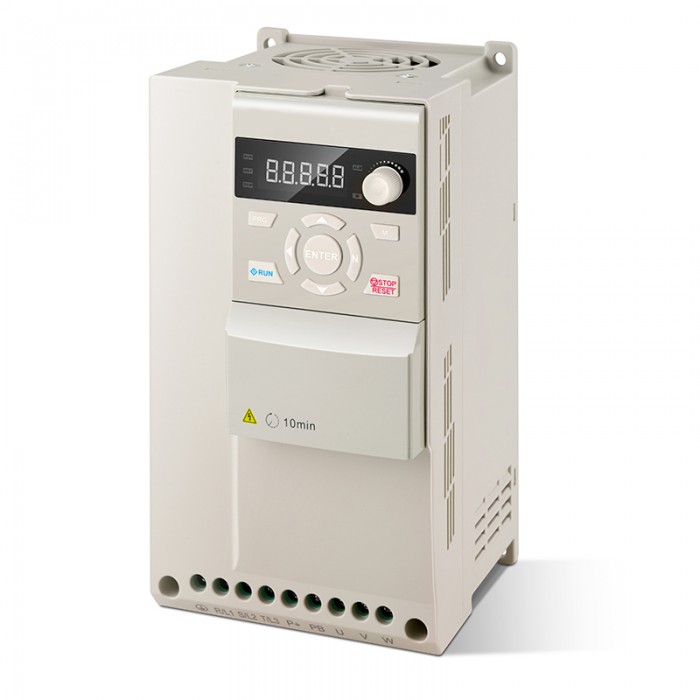

H100 Series VFD Variable Frequency Drive 5HP 3.7KW 15.2A Single/Three Phase 220V

H100 Series VFD Variable Frequency Drive 5HP 3.7KW 15.2A Single/Three Phase 220V
NO.:H100T20037BX0
Review: Post a review
Black Friday Special Offer 2022:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till November 30th, 2022
  • Note:No coupon code needed, please place order directly!
Latest price:$189.18
Buy It Now:$126.12
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $125.11 1%
10 $123.09 2%
50 $122.08 3%
100 $121.07 4%
Add To Cart

H100 Series VFD 5HP 3.7KW 15.2A Single/Three Phase 220V Variable Frequency Drive



This VFD with power 5HP(3.7Kw) and single/three phase 220V input voltage. The H100 series is General Variable Frequency Drive(VFD), they are widely used in application of: Textile machines, Packaging machines, Engraving machines, Printing machines, Food machinery, Woodworking machinery, Pump fans, Ceramic machinery, Solar pumps and others.



Key Specification

Rated Input Voltage: 1-Phase / 3-Phase 220V

Allowed Input Voltage: 1-Phase / 3-Phase 180~260VAC

Input Frequency: 50/60Hz(+/-5%)

Input Current: 1-Phase 38.6A, 3-Phase 16.5A

Power: 5HP(3.7Kw)

Output Current: 15.2A

Output Voltage: 0~Rated Input Voltage

Output Frequency: 0~1000Hz

Output Capacity: 150% Rated Current 60s, 180% Rated Current 2s



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: H100 Series VFD Variable Frequency Drive 3HP 2.2KW 12.5A Single/Three Phase 220V
Next: H100 Series VFD Variable Frequency Drive 7.5HP 5.5KW 23A Three Phase 220V
Variable Frequency Drive Specification
Input Voltage 1PH 220V / 3PH 380VAC
Allowed Input Voltage 180 - 260VAC(1PH) / 320 - 460VAC(3PH)
Input Frequency 50 - 60Hz
Input Current 38.6A(1PH) / 16.5A(3PH)
Power 5HP / 3.7Kw
Output Current 15.2A
Control Modes V/F, SVC
Output Voltage 0 - Rated Input Voltage
Output Frequency 0 - 1000Hz
Output Capacity 150% Rated Current 60s, 180% Rated Current 2s
Modulation Mode SVPWM
Start Torque 1Hz / 150%
Speed Range 1 : 100(SVC)
Acceleration/Deceleration Curve Line / S-curve
Frequency Accuracy Digital (Max. Frequency+/-0.01%) / Anolog (Max. Frequency+/-1%)
Motor Type Asynchronous Motor, Synchronour Motor, Single Phase Motor
Frequency Resolution Digital (0.1Hz) / Anolog (Max. Frequency+/-1%)
Rapid Current Limit Limit current rapidly within the current protection value, to ensure the safety of the equipment
Command Source Keypad, Terminal, Communication
None-stop When Instantaneous Power Off None-stop when instantaneous power off, automatic frequency drop
Set Value Source Digital, Analog, Multi-speed, Communication
PID Support main setting + PID
External Keypad Yes
LED Display Can display: Output frequency, Output voltage, Output current, Bus voltage, Display value 1, Display value 2, Error, Alarm
Protection Function Over-current protection, Over-voltage protection, Under-voltage protection, Overheating protection, Over-load protection, Phase lose protection, Earth leakage, etc
Altitude Derating use abouve 1000M, derating 10% per 1000M
Environment Temperature -10℃ ~+40℃ (environment temperature around 40℃~50℃, please derating use)
Humidity 5%~95%RH, No condensation
Vibration <5.9M/S (0.6g)
Store Environment Indoor, away from direct sunlight, no dust, no corrosive gas, no inflammable gas, no oil mist, no vapour, no drip and no salinity, etc
Store Temperature -40℃ ~ +70℃
