BD600 Series VFD Variable Frequency Drive 7.5HP 5.5KW 23A Three Phase 220V for Spindle Motor Speed Control
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till December 3th, 2024
- Note:No coupon code needed, please place order directly!

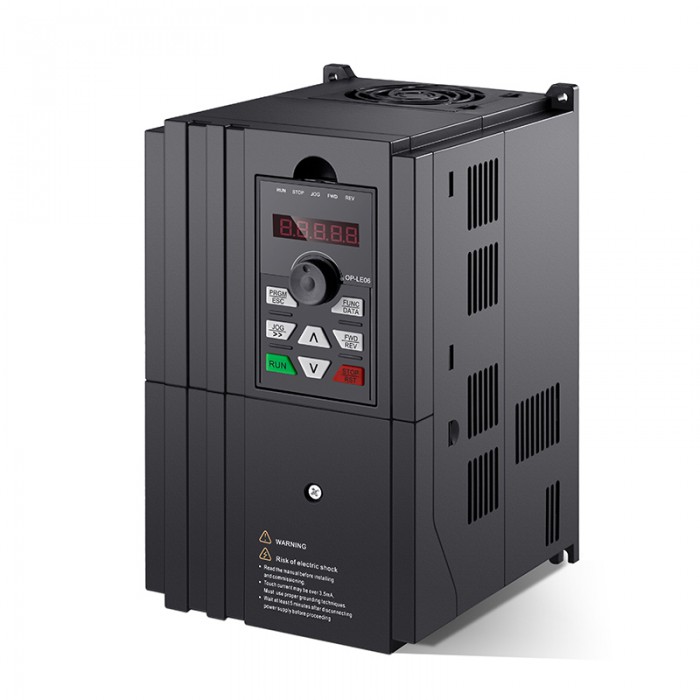

BD600 Series VFD 7.5HP 5.5KW 23A Three Phase 220V Variable Frequency Drive
This VFD with power 7.5HP(5.5Kw) and three phase 220V input voltage. The BD600 series is a stable performance Vector Control Variable Frequency Drive(VFD), they are widely used in application of: Metal processing, CNC machine tools, Wire drawing machines, Boiler blower, Induced draft fan, Coal mine underground exhaust fan, Municipal engineering, Counter-cyclone, Centrifugal fan, Circulating water pump, Make-up water pump, Oil field injection water pump, Oil transfer pump, music fountain, Papermaking equipment, Chemical industry, Pharmaceutical industry, Textile industry, etc.
Key Specification
Input Voltage: 3-Phase 220VAC±15%
Input Frequency: 47～63Hz
Input Current: 3-Phase 24A
Input Power factor: ≥95%
Power: 7.5HP(5.5Kw)
Output Current: 23A
Resources
Full User Manual:BD600_Series_Inverter_User_Manual.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Variable Frequency Drive Specification | |
|---|---|
| Input Voltage | 3PH 220VAC |
| Input Frequency | 47 - 63Hz |
| Input Current | 24A(3PH) |
| Power | 7.5HP / 5.5KW |
| Output Current | 23A |
| Control Modes | V/F control, non-PG vector control(SVC), PG vector control(FVC) |
| Start Torque | G type: 0.5Hz/150%(SVC), 0Hz/180%(FVC); P type: 0.5Hz/100% |
| Frequency Resolution | 0.01Hz(Digital setting); maximum frequency x 0.025%(Anolog setting) |
| Vibration | Under 20Hz 9.8m/s(1G), Over 20Hz5.88m/s(0.6G) |
| Store Environment | ≤1000M, indoor(no corrosive gas and liquid) |
| Store Temperature | -20℃～60℃ |
| Input Power factor | ≥95% |
| V/F Control | Line, Multiple point, square V/F curve, V/F separation |
| Operation Command Mode | Keypad control, Terminal control, Serial communication control |
| Frequency Reference Source | Digital, analog, pulse frequency, serial communication, multi-step speed, simple PLC and PID The combination of multi-modes and the different modes can be switched |
| Overload Capacity | G type: 150% rated current 60s, 180% rated current 3s; P type: 120% rated current 60s, 150% rated current 3s |
| Speed Adjusting Range | 1:100(SVC), 1:1000(FVC) |
| Speed Control Accuracy | ±0.5%(SVC), ±0.02%(FVC) |
| Carrier Frequency | 0.5 to 16.0kHz; automatically adjust carrier frequency according to the load characteristics |
| Torque Boost | Automatic torque boost; manual torque boost 0.1~30% |
| Acceleration and Deceleration Mode | Line or S-curve, 4 types of acceleration/deceleration time with the range of 0.0~6500.0s |
| DC Brake | Supports starting and stopping DC brake |
| Jogging Control | 0.0Hz~50.00Hz(Jog frequency range); 0~6500.0s(Jog Acc/Dec time) |
| Simple PLC & Multi-step Speed Operation | Built-in PLC or control terminal, 16 steps speed can be set |
| Built-in PID | Built-in PID control to easily realize the closed loop control for the process parameters (such as a pressure, temperature, flow, etc.) |
| Automatic Voltage Regulation(AVR) | Automatically maintain a constant output voltage when the voltage of electricity grid changes |
| Common DC Bus | Multiple inverters can use a common DC bus(Common DC bus function) |
| Traverse Control | Multiple triangular pulse frequency control(Traverse control function) |
| Fixed Length Control | Setting length control |
| Timing Control | 0~6500min(Setting time range) |
| Input Terminals | a. Supports high speed pulse input, b. 1 Analog voltage input 0~10VDC, c. 2 Voltage input 0~10VDC or current input 0~20mA |
| Output Terminals | a. 1 Open collector output, it can be extended to 1 high speed pulse output, b. 2 Relay outputs, c. 2 Analog output: voltage output 0~10VDC or current output 0~20mA |
| Protection Class | IP20 |
| Humidity & Temperature | 90%RH or less (no-condensation), -10℃～40℃.Inverter will be derated if ambient temperature exceeds 40℃ |
| Cooling Mode | Forced air-cooling |
