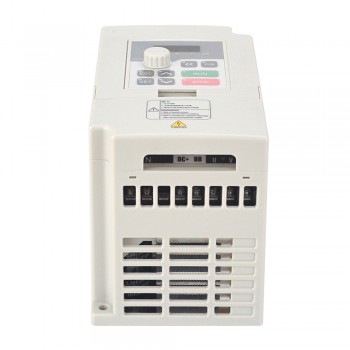

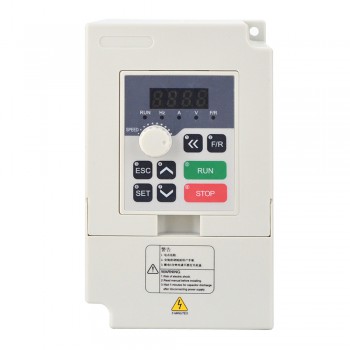

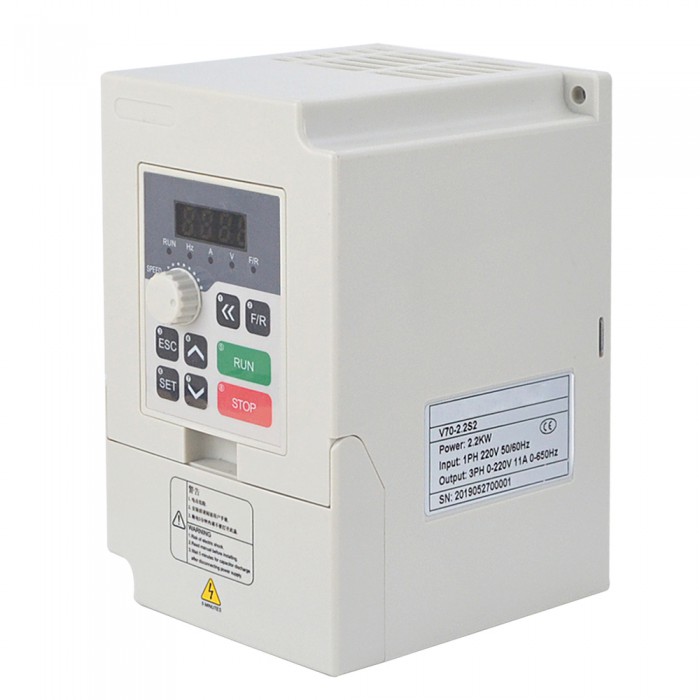

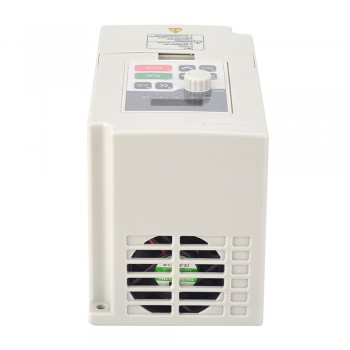

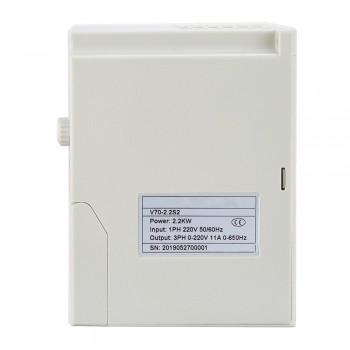

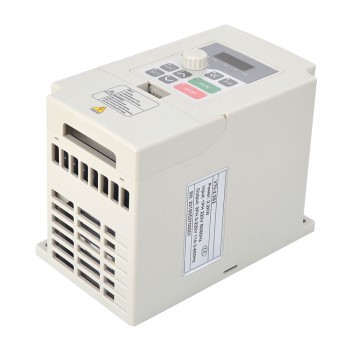

VFD Variable Frequency Drive 2.2KW 3HP 11A 220V Frequency Inverter for CNC Spindle Motor Speed Control

VFD Variable Frequency Drive  2.2KW 3HP 11A 220V Frequency Inverter for CNC  Spindle Motor Speed Control
NO.:V70-2.2S2
Post a review
Special Offer in May 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till May 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$155.40
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $147.64 5%
5 $144.53 7%
10 $139.86 10%
50 $135.20 13%
Add To Cart

Specifications:

  • Manufacturer Part Number: V70-2.2S2
  • Input Voltage: 220 V (Single-phase)
  • Input Frequency: 50/60 Hz
  • Power: 2.2 KW
  • Capacity of driver: 4.4 KVA
  • Output current: 11 A
  • Applicable motor: 2.2 KW
  • Control mode: V/F, Vector control
  • Communication control: RS-485
  • Operating temperature: -10 - 40 ℃
  • Humidity: 0 - 95%(without condensation)
  • Vibration: Less than 0.5G
  • Overload protection: Electric relay protection motor driver (constant torque: 150% per minute, fans: 120% per minute)
  • FUSE protection: When the fuse blows, the motor stops
  • Over-voltage protection: DC voltage > 390V
  • Low-voltage protection: DC voltage < 200V

Frequency Control:

  • Frequency Range: 0.1 - 1000 Hz
  • Accuracy: 0.1%(-10 - 40 ℃) for digital; 0.1%(25 ± 10 ℃) for analog
  • Setting Resolution: 0.1 Hz for digital; 1% of Max. operating frequency for analog
  • Output Resolution: 0.1 Hz
  • Keyboard Setting Mode: Set as ← ▲ ▼ directly
  • Analog Setting Mode: External voltage 0 - 5 V, 0 - 10 V, 4 - 20 mA, 0 - 20 mA
  • Other Functions: Three hopping frequency(lower-frequency limit, startup frequency and stop frequency) can be set respectively

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: VFD Variable Frequency Drive 1.5KW 2HP 7A 220V VFD Inverter for Spindle Motor Speed Control
Next: VFD Variable Frequency Drive 3.7KW 5HP 17A 220V Frequency Inverter for CNC Spindle Motor Speed Control
VFD Specification
Capacity of driver(KVA) 4.4
Horsepower(Hp) 3
Input Frequency(Hz) 50/60
Input Voltage (V) 220 (Single-phase)
Output Current(A) 11
Power(Kw) 2.2
