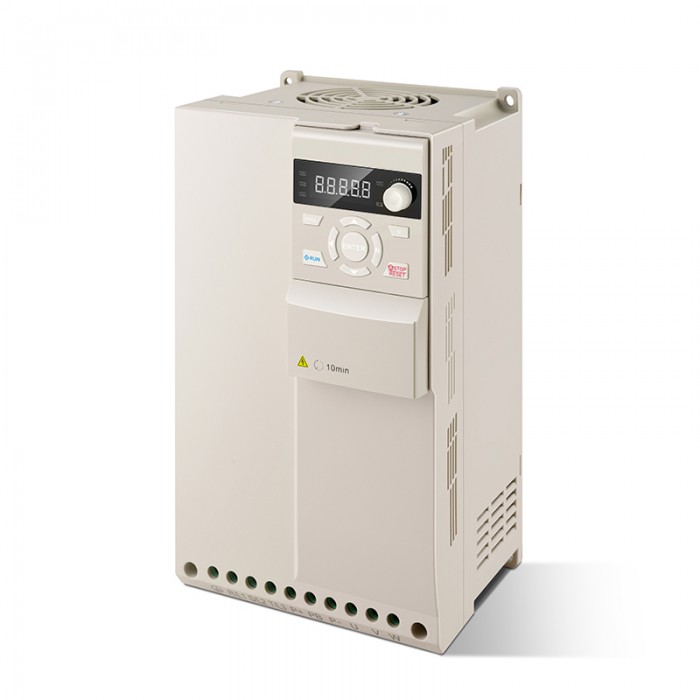

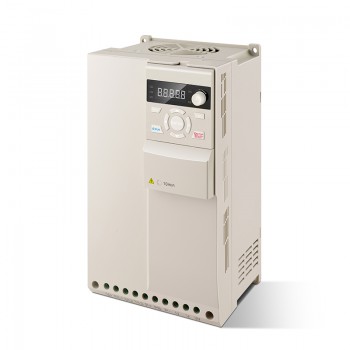

H100 Series VFD Variable Frequency Drive 10HP 7.5KW 19A Three Phase 380V for Spindle Motor Speed Control
-
Manuals and Documentation:
User Manual:
Full User Manual:
Our Price:$197.82
H100 Series VFD 10HP 7.5KW 19A Three Phase 380V Variable Frequency Drive
This 10 HP (7.5 kW) H100 VFD runs on three‑phase 380 V input and is used in textile, packaging, engraving, printing, food, woodworking, pump, fan, ceramic, and solar pump applications.
Key Specification
Rated Input Voltage: 3-Phase 380V
Allowed Input Voltage: 320~460VAC
Input Frequency: 50/60Hz(+/-5%)
Input Current: 21A
Power: 10HP(7.5Kw)
Output Current: 19A
Output Voltage: 0~Rated Input Voltage
Output Frequency: 0~1000Hz
Output Capacity: 150% Rated Current 60s, 180% Rated Current 2s
| Variable Frequency Drive Specification | |
|---|---|
| Input Voltage | 3PH 380VAC |
| Allowed Input Voltage | 320 - 460VAC |
| Input Frequency | 50 - 60Hz |
| Input Current | 21A(3PH) |
| Power | 10HP / 7.5Kw |
| Output Current | 19A |
| Control Modes | V/F, SVC |
| Output Voltage | 0 - Rated Input Voltage |
| Output Frequency | 0 - 1000Hz |
| Output Capacity | 150% Rated Current 60s, 180% Rated Current 2s |
| Modulation Mode | SVPWM |
| Start Torque | 1Hz / 150% |
| Speed Range | 1 : 100(SVC) |
