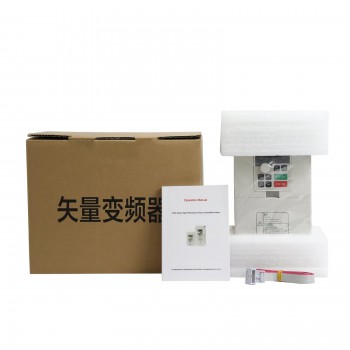

H100 Series 7.5KW 220V / 380V VFD Frequency Inverter Three-phase for CNC Spindle Motor

H100 Series 7.5KW 220V / 380V VFD Frequency Inverter Three-phase for CNC Spindle Motor

This 7.5 kW VFD runs on 220 V or 380 V input, delivers three‑phase 0–1000 Hz output, and is designed for CNC spindle motors.

Specification:

Model Number: H100-7.5S2 / H100-7.5T4

Type: Three-Phase Frequency Inverter (DC/AC)

Motor Power: 7.5 kW Three-Phase Motor

Input Voltage: AC 220V / 380V

Input Current: 17.5A

Output Type: Three-Phase

Output Frequency Range: 0 - 1000 Hz

Rated Frequency: 50 Hz / 60 Hz

Compact Size: 89 × 149 × 110 mm

Weight: 4 kg;
